Acura 2016 ILX Owner's Guide

118 | | 119
HANDLING THE UNEXPECTEDHANDLING THE UNEXPECTED
TABLE OF
CONTENTS
INDEX
VISUAL INDEX
VOICE COMMAND
INDEX
SAFETY
INFORMATION
CLIENT
INFORMATION
INSTRUMENT
PANEL
SPECIFICATIONS
VEHICLE
CONTROLS
MAINTENANCE
AUDIO AND
CONNECTIVITY
HANDLING THE
UNEXPECTED
BLUETOOTH®
HANDSFREELINK®
DRIVING
ACURALINK®
NAVIGATION

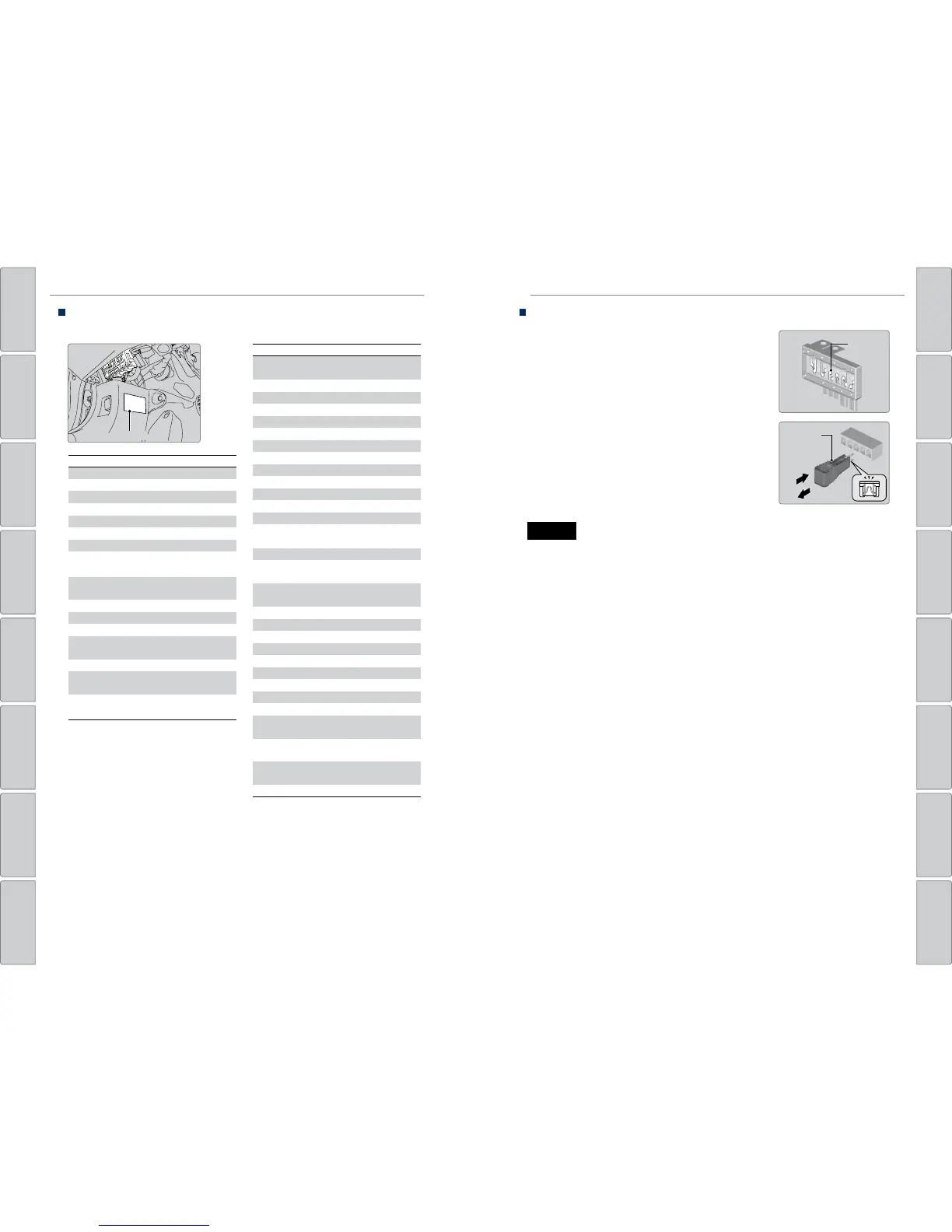

Interior Fuse Box
Located under the dashboard.
Fuse label
*if equipped
Circuit Protected Amps
1 − −
2 ACG 15 A
3 SRS 10 A
4 Fuel Pump 15 A
5 Meter 7.5 A
6 Power Window 7.5 A
7 VB SOL
*
7.5 A
8
Right Door Lock Motor
(Unlock)
15 A
9
Left Door Lock Motor
(Unlock)
15 A
10 Audio (15 A)
11 Moonroof 20 A
12 Driver’s Power Seat Sliding
*
(20 A)
13
Driver’s Power Seat
Reclining
*
(20 A)
14 Seat Heaters
*
(15 A)
15
Driver’s Door Lock Motor
(Unlock)
10 A
16
Passenger’s Power Seat
Sliding
*
(20 A)
17
Passenger’s Power Seat
Reclining
*
(20 A)
18 − −
19 Accessory 7.5 A
20 ACC Key Lock 7.5 A
21 Daytime Running Lights 7.5 A
22 HAC 7.5 A
23 − −
24 ABS/VSA 7.5 A
25 ACC 7.5 A
26 − −
27 Accessory Power Socket 20 A
28 − −
29 ODS 7.5 A
Circuit Protected Amps
30
Driver’s Door Lock Motor
(Lock)
10 A
31 SMART 10 A
32
Right Door Lock Motor
(Lock)
15 A
33
Left Door Lock Motor
(Lock)
15 A
34 Small Lights 7.5 A
35 Illumination 7.5 A
36 − −
37 Premium Audio
*
(30 A)
38 Left Headlight High Beam 10 A
39 Right Headlight High Beam 10 A
40 − −
41 Door Lock 20 A
42 Driver’s Power Window 20 A
43
Rear Passenger’s Side
Power Window
20 A
44
Front Passenger’s Side
Power Window
20 A
45
Rear Driver’s Side Power
Window
20 A
46 − −
Inspecting and Changing Fuses
1. Turn off the vehicle, including the headlights and
all accessories.
2. Remove the fuse box cover.
3. Check all fuses inside the combined fuse case in
the engine compartment. If any fuse is blown,
use a Phillips-head screwdriver to remove the
screw and replace the fuse with a new one.
4. Inspect the small fuses in the engine
compartment and the vehicle interior. If there is
a burned out fuse, remove it with the fuse puller
and replace it with a new one.
Replacing a fuse with one that has a higher rating greatly increases the chances
of damaging the electrical system.
NOTICE
Combined
fuse
Blown
fuse
Fuse puller
Circuit Protected Amps
1 − −
2 ACG 15 A
3 SRS 10 A
4 Fuel Pump 15 A
5 Meter 7.5 A
6 Power Window 7.5 A
7 VB SOL
*
7.5 A
8
Right Door Lock Motor
(Unlock)
15 A
9
Left Door Lock Motor
(Unlock)
15 A
10 Audio (15 A)
11 Moonroof 20 A
12 Driver’s Power Seat Sliding
*
(20 A)
13
Driver’s Power Seat
Reclining
*
(20 A)
14 Seat Heaters
*
(15 A)
15
Driver’s Door Lock Motor
(Unlock)
10 A
16
Passenger’s Power Seat
Sliding
*
(20 A)
17
Passenger’s Power Seat
Reclining
*
(20 A)
18 − −
19 Accessory 7.5 A
20 ACC Key Lock 7.5 A
21 Daytime Running Lights 7.5 A
22 HAC 7.5 A
23 − −
24 ABS/VSA 7.5 A
25 ACC 7.5 A
26 − −
27 Accessory Power Socket 20 A
28 − −
29 ODS 7.5 A
Circuit Protected Amps
30
Driver’s Door Lock Motor
(Lock)
10 A
31 SMART 10 A
32
Right Door Lock Motor
(Lock)
15 A
33
Left Door Lock Motor
(Lock)
15 A
34 Small Lights 7.5 A
35 Illumination 7.5 A
36 − −
37 Premium Audio
*
(30 A)
38 Left Headlight High Beam 10 A
39 Right Headlight High Beam 10 A
40 − −
41 Door Lock 20 A
42 Driver’s Power Window 20 A
43
Rear Passenger’s Side
Power Window
20 A
44
Front Passenger’s Side
Power Window
20 A
45
Rear Driver’s Side Power
Window
20 A
46 − −
