Acura MDX 2022 User Manual

677
Continued
Handling the Unexpected
Fuses
Fuse Locations
If any electrical devices are not working, set
the power mode to VEHICLE OFF (LOCK)
and check to see if any applicable fuse is
blown.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.

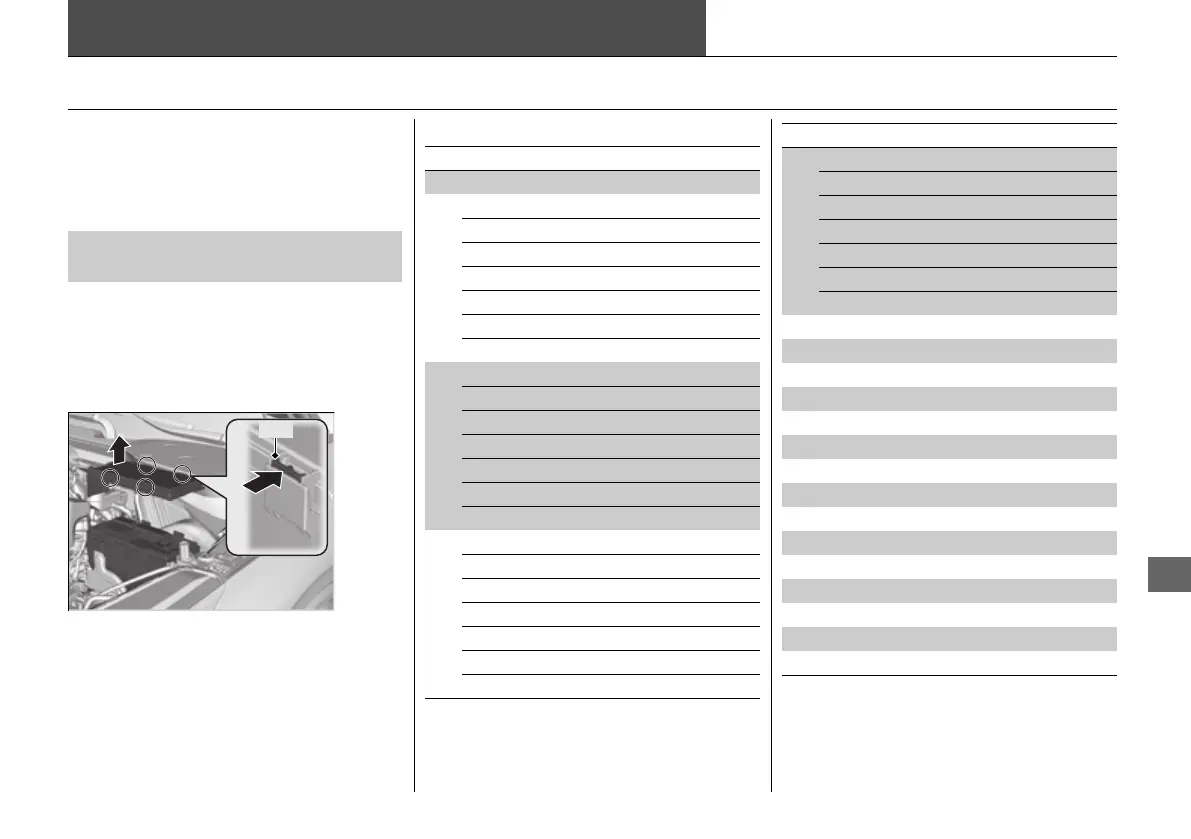

Located near the brake fluid reservoir. Push
the tabs to open the box.
Replacement of fuses No.1-5 should be
done by a dealer.
■
Engine Compartment Fuse
Box
Tab
■
Circuit protected and fuse rating
Circuit Protected Amps
1 Battery 225 A
2
Idle Stop 1 30 A
Idle Stop 2 30 A
EPS 80 A
Power Module 1 70 A
Fuse Box Main 1 60 A
Fuse Box Option 1 60 A
Rear Blower 30 A
3
Active Control Mount 30 A
Starter Motor 30 A
Radiator Fan 30 A
Heater Motor 40 A
Power Module ACC 40 A
Rear Defogger 40 A
Fuse Box Option 2 60 A
4
AC Power Outlet
*
(30 A)
Brake Booster 40 A
Rear Fuse Box Main 2 60 A
VSA F/S RLY 40 A
Rear Fuse Box Main 1 60 A
− 60 A
Fuse Box Main 2 60 A
Circuit Protected Amps
5
Power Module 2 30 A
VSA Pump Motor 40 A
IG Main 2 30 A
Relay Module 2 30 A
Relay Module 1 30 A
− 30 A
IG Main 1 30 A
6 Conditioner Fan 30 A
7 Wiper 30 A
8− −
9 FI Main 15 A
10 − −
11 Injector 20 A
12 − −
13 Trailer E-Brake
*
(20 A)
14 Horn 15 A
15 − −
16 FI-ECU 10 A
17 − −
18 DBW 15 A
19 Audio 15 A
20 Back Up 7.5 A
* Not available on all models
22 ACURA MDX-31TYA6000_02.book 677 ページ ２０２０年１１月５日 木曜日 午前１１時３９分
