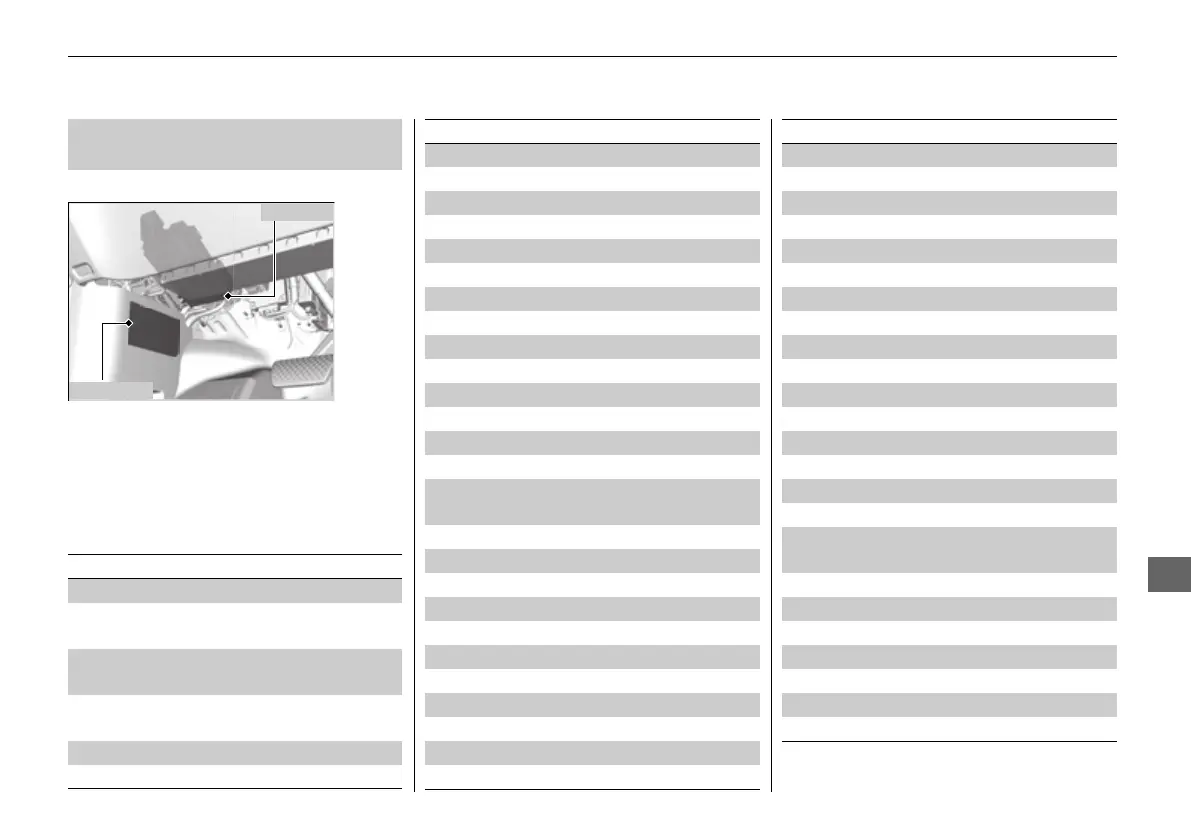

uuFusesuFuse Locations
Continued
Handling the Unexpected
Located under the dashboard.
Fuse locations are shown on the label on
the side panel.
Locate the fuse in question by the fuse
number and label number.
Circuit protected and fuse rating
Driver’s Side Interior Fuse Box
Type A
Circuit Protected Amps
1 Driver’s Power Window 30 A
2
Front Passenger’s Power
Window
30 A
3
Rear Passenger’s Side
Power Window
30 A
4
Rear Driver’s Side Power
Window
30 A
5 Option 10 A
6 SRS 10 A
Fuse Box
Fuse Label
7
8
9
10 Door Lock Main 20 A
11 Meter 10 A
12 Transmission 10 A
13 Battery Fan 10 A
14 Starter Motor 10 A
15 Driver’s Door Unlock 7.5 A
16 Panoramic Roof 20 A
17
18
19
20 Ambient Lighting (10 A)
21
Accessory Power Socket (in
the Console Compartment)
20 A
22 Keyless Access System 10 A
23 Driver’s Door Lock 7.5 A
24
25 Shifter 10 A
26 SRS 10 A
27 ACG 15 A
28 VSA/ABS 10 A
29 Fuel Pump 20 A
30 Driver’s Side Door Unlock 10 A
31 Passenger’s Side Door Unlock 7.5 A
32 Steering Column Adjust 20 A
Circuit Protected Amps
33 IMG 10 A
34
35 Steering Column Adjust 20 A
36 Sunshade 20 A
37
38 Option 10 A
39 Passenger’s Side Door Lock 7.5 A
40 Driver’s Power Seat 30 A
41
42
43 AIRCON 10 A
44 Daytime Running Lights 10 A
45 ACCESSORY 10 A
46
47 Driver’s Side Door Lock 10 A
48
49
Front Passenger’s Power
Seat
30 A
50
51
52
53
54 Option 10 A
55 Audio Amp (30 A)
56
Circuit Protected Amps
