682
uuFusesuFuse Locations

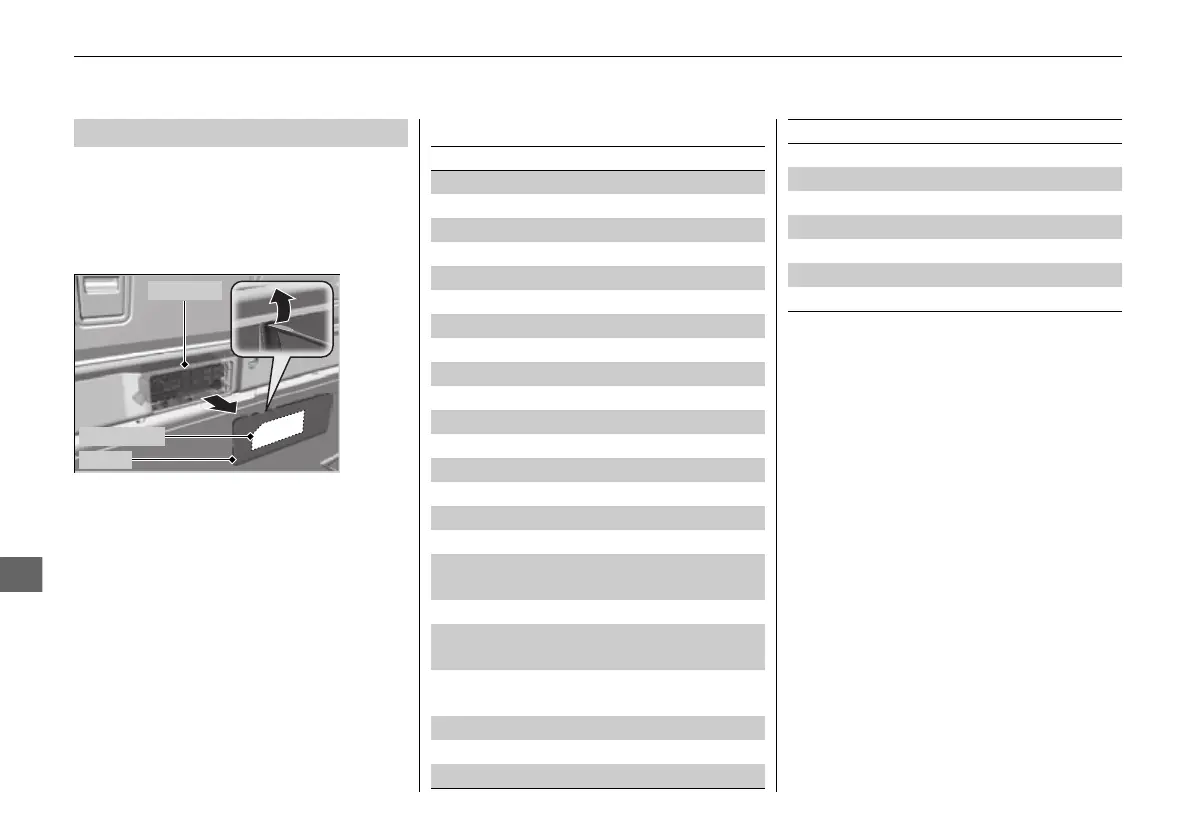

Located in the cargo area. Remove the
cover by prying on the edge of the cover
using a flat-tip screwdriver.
u Wrap the flat-tip screwdriver with a
cloth to prevent scratches.
Fuse locations are shown on the cover.
Locate the fuse in question by the fuse
number and box cover number.
■
Rear Fuse Box
■
Circuit protected and fuse rating
Circuit Protected Amps
1 SH-AWD®
*
(30 A)
2 Power Tailgate 40 A
3 − (40 A)
4 − −
5 Audio Amp
*
(40 A)
6 − −
7 − −
8 − −
9 − −
10 SH-AWD®
*
(10 A)
11 Driver’s Power Seat 30 A
12 Driver’s Power Seat 30 A
13 Trailer Back Lights
*
(10 A)
14 Rear Lights 15 A
15 Trailer Hazard Lights
*
(10 A)
16 − (20 A)
17
Accessory Power Socket
(Cargo Area)
20 A
18 − (15 A)
19
Front Passenger’s Power
Seat
30 A
20
Front Passenger’s Power
Seat
30 A
21 Trailer Small Lights
*
(20 A)
22 Power Tailgate 20 A
23 Battery Sensor
*
(10 A)
24 − −
25 Third Row Seat Access 20 A
26 Trailer Charge
*
(20 A)
27 − −
28 − −
29 − −
30 − −
Circuit Protected Amps
* Not available on all models
