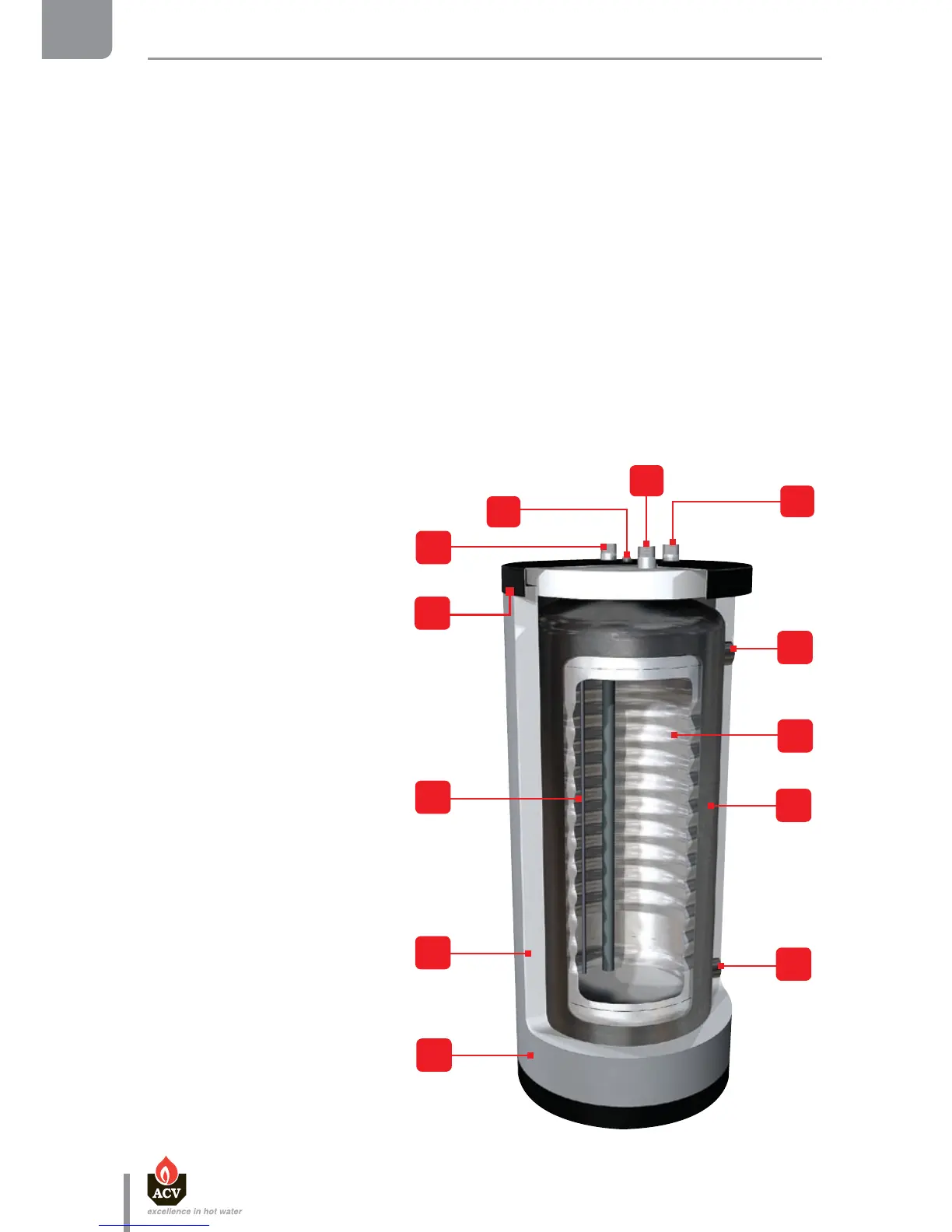

Legend
1. DHW outlet
2. Manual air bleed valve
3. Cold water inlet
4. Black rigid polypropylene cover
5. Stainless steel dry-well
6. 70 mm soft insulation (open-cell
polyurethane foam)
7. Outer vinyl casing with zip fastener
8. Auxiliary DHW loop
9. Primary circuit inlet
10. Inner stainless steel tank
11. Outer steel (primary) tank
12. Primary circuit outlet
APPLIANCE DESCRIPTION
MODELS 
Types HRs 321 – 601 -800 - 1000 / JUMBO 800 - 1000
Indirectly heated storage water tanks, to be installed on the oor, equipped with a large surface
heat exchanger and intended for medium and high power installations. Through the use of a
specic kit, these tanks can be set in parallel, allowing the construction of high ow rate assemblies
for any type of commercial, residential or industrial facilities.
HRs 321 - 601
