TECHNICAL CHARACTERISTICS
DIMENSIONS

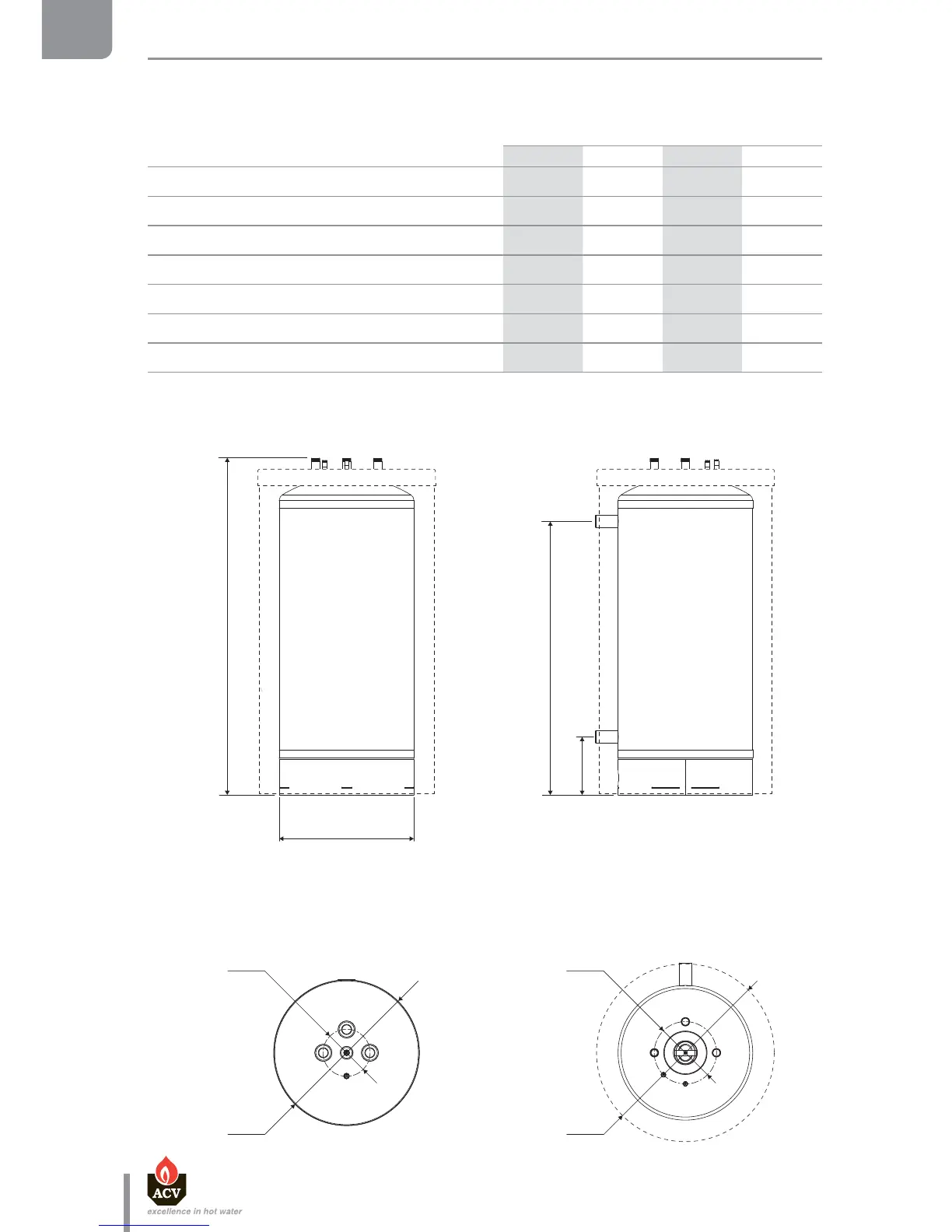

Tank dimensions (soft casing)
HRs
321 601 800 1000
A = Height mm 1600 1895 1955 2355
B = Ø mm — — 780 780
C mm 255 255 335 335
D mm 1285 1585 1585 1985
E = Ø mm 270 270 360 360
F = Ø mm 700 845 920 920
Empty weight Kg 106 201 261 308
A
D
C
B
E
F
E
F
HRs 321 - 601 HRs 800 - 1000
