TECHNICAL CHARACTERISTICS
Tank clearance
HRs
321 601 800 1000
D1 (mm)
Recommended (1 tank) 1000 1000 1000 1000
Minimum (parallel assy.) 425 425 550 550
D2 (mm)
Recommended 1000 1000 1000 1000
Minimum 800 800 800 800
Height (mm)
Recommended 250 250 300 300
Minimum 150 180 210 180

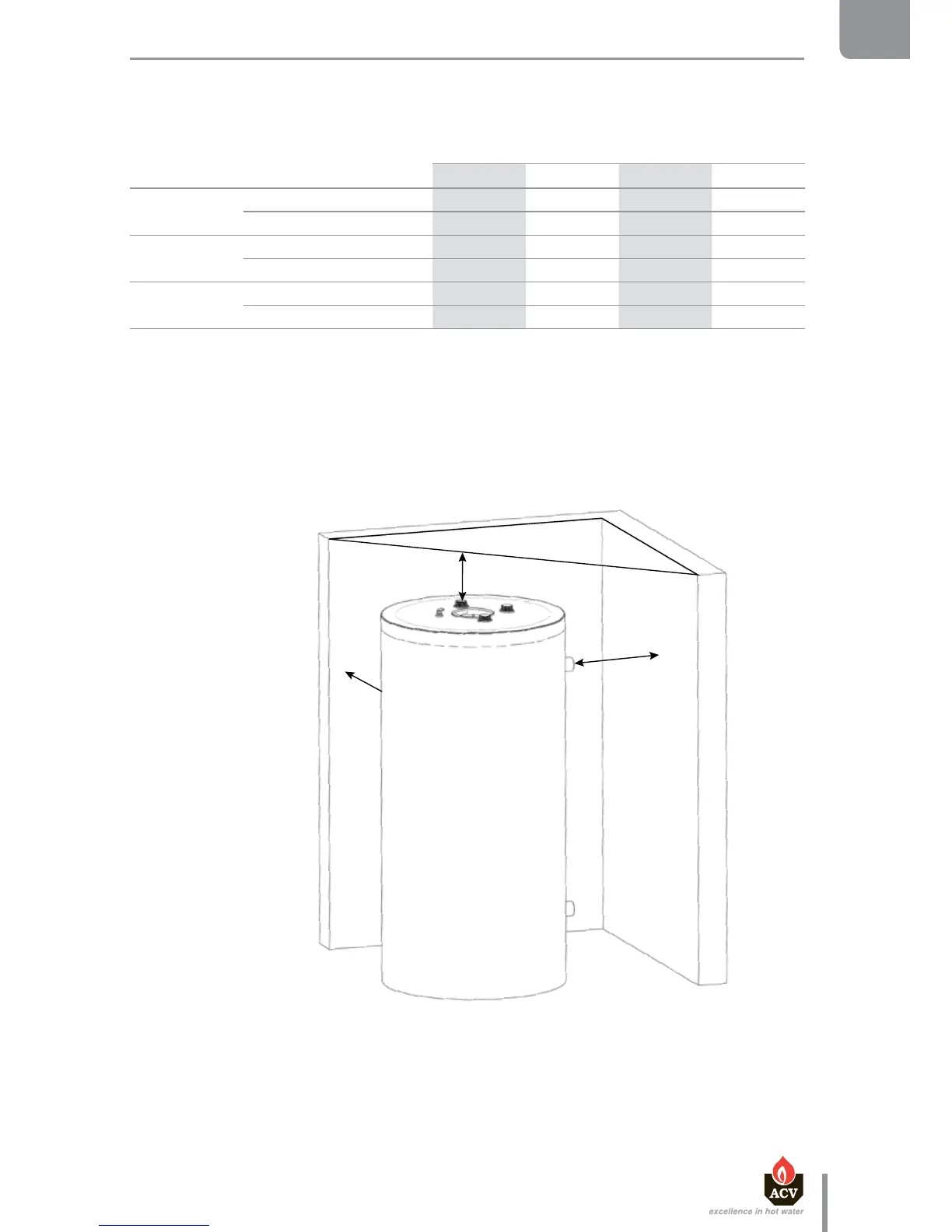

D1
H
D2
