TECHNICAL DATA
UK

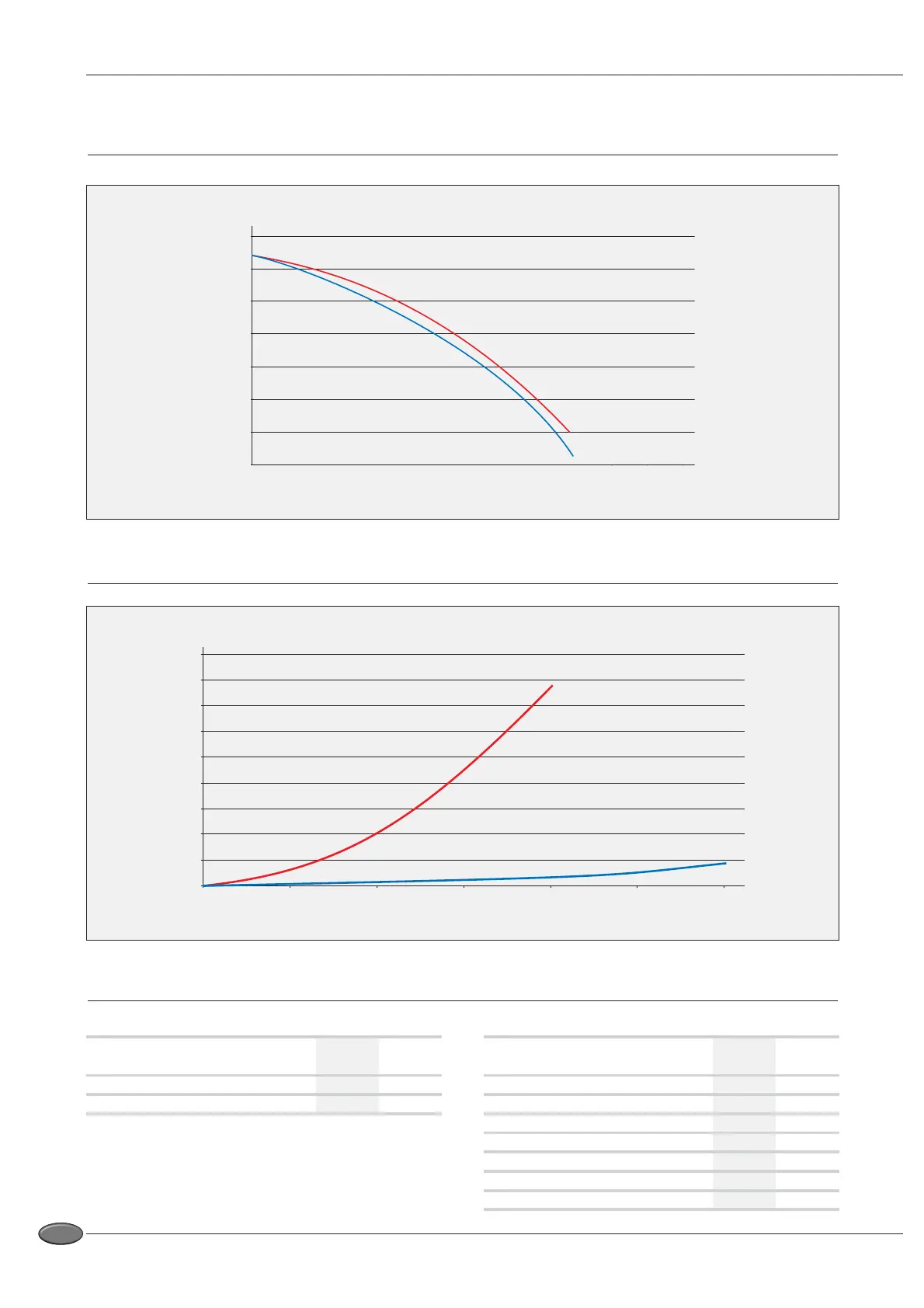

DIAGRAM OF THE PUMP (output available for the CH circuit pump)
0
100
200
300
400
500
600
700
0 200 400 600 800 1000 1200 1400 1600
1800 2000 2200 2400
AquaSpeed
Excellence
Power supply
available in mbar
Flow in litres/hour
Prestige Excellence
Operating conditions at 80°C
24 32
Peak flow at 40°C (∆T = 30°C) L/10’ 175 224
Peak flow at 40°C (∆T = 30°C) L/60’ 733 835
Constant flow at 40°C (∆T = 30°C) L/hour 653 745
Peak flow at 60 °C (∆T = 50°C) L/10’ 102 103
Peak flow at 60°C (∆T = 50°C) L/60’ 352 353
Constant flow at 60°C (∆T = 50°C) L/hour 316 320
Pre-heat time minutes 27 25
DOMESTIC HOT WATER FEATURES
Prestige AquaSpeed
Operating conditions at 80°C
24 32
Flow at 40°C (∆T = 30°C) l/min 11 14.5
Flow at 60°C (∆T = 50°C) l/min 6.6 8.3
DIAGRAM OF THE PRESSURE DROP ON THE DOMESTIC HOT WATER SIDE
0
0,2
0,4
0,6
0,8
1
1,2
1,4
1,6
1,8
051015
20 25 30
Pressure drop in bars
Volume of domestic hot water in litres/ minute
AquaSpeed
Excellence

ACV PRESTIGE Series Specifications

General

Fuel Type	Natural Gas
Installation	Wall-mounted
Heat Exchanger Material	Stainless Steel
Boiler Type	Condensing
Ignition Type	Electronic
Control System	Digital
Heating Capacity	Variable, based on model
Temperature Range	30°C to 85°C
Modulation Range	1:10
