ACV Smart E 130 - Connection to the Primary Circuit

SLE - SLE Plus: A1007847 - 661Y2100 • D
Installation

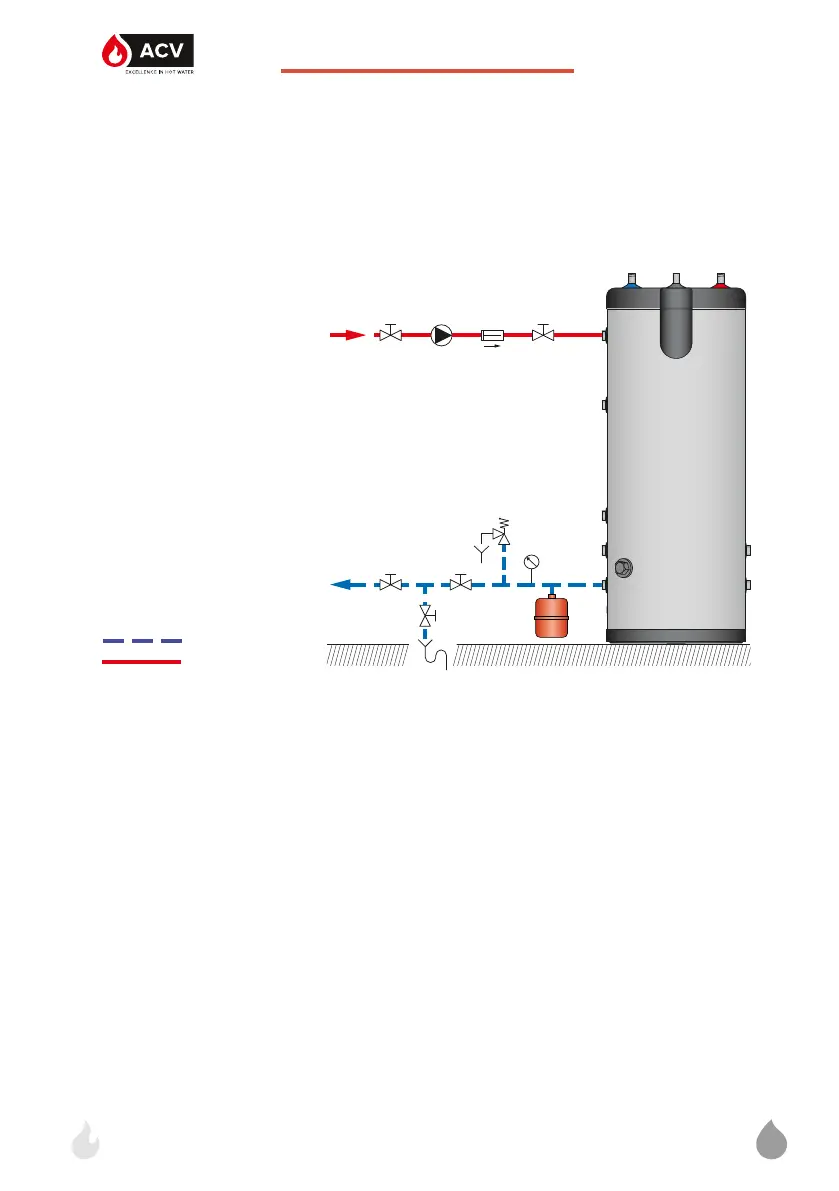

CONNECTION TO THE PRIMARY CIRCUIT
1. Primary circuit filling valve
2. Charging pump
3. Check valve
4. Primary circuit stop valve
5. Expansion vessel
6. Pressure gauge
7. Safety valve (set at 3 bar)
8. Drain valve
9. Stop valve
EN
22
Cold water
Hot water
1 2 3 4
8
5
9
7
6
4
