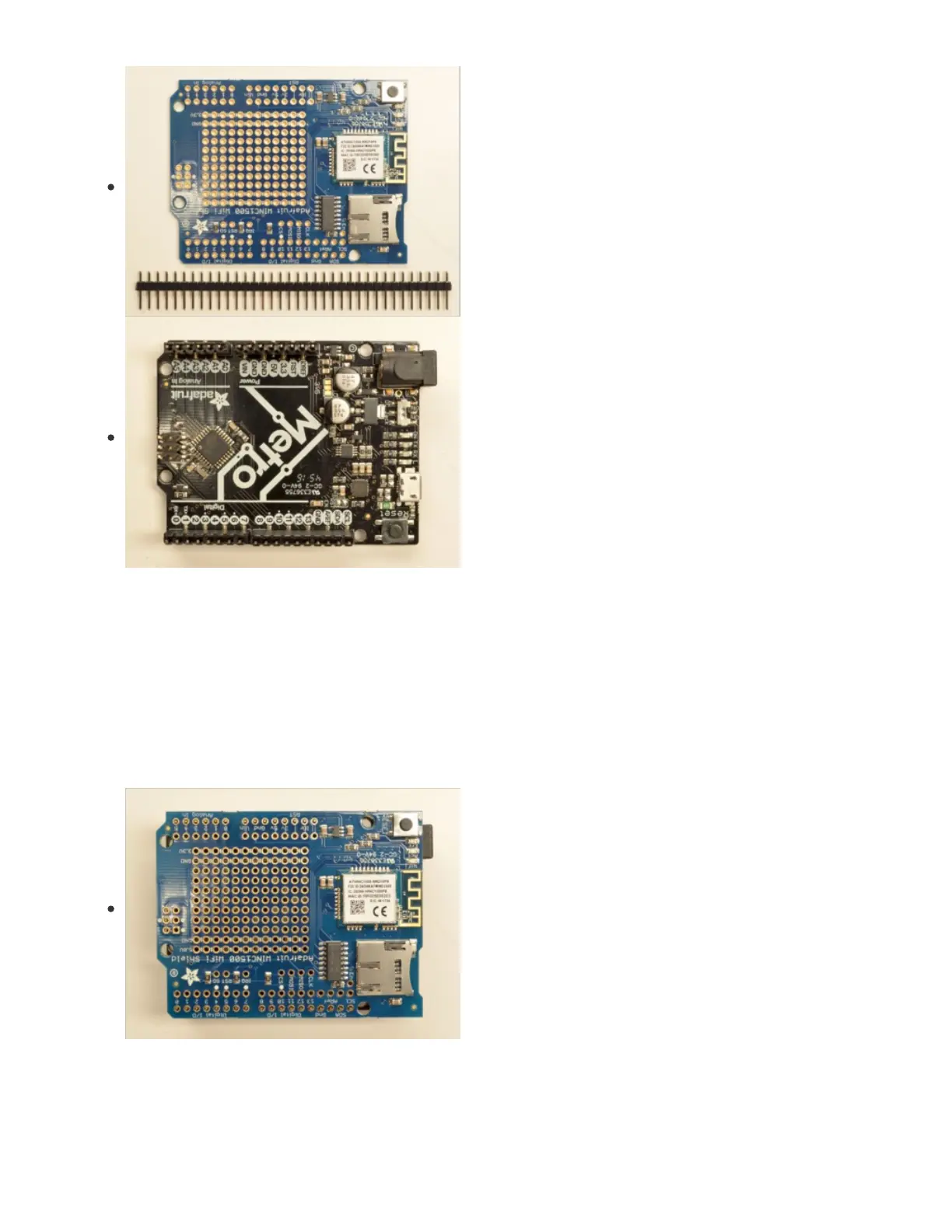

Break apart the 0.1" header into 6, 8 and/or 10-pin long pieces
and slip the long ends into the headers of your Arduino.
Place the assembled shield on top of the header-ed Arduino
so that all of the short parts of the header are sticking through
the outer set of pads
© Adafruit Industries https://learn.adafruit.com/adafruit-airlift-shield-esp32-wifi-co-processor Page 13 of 56
