Assembly
Installing Standard Headers

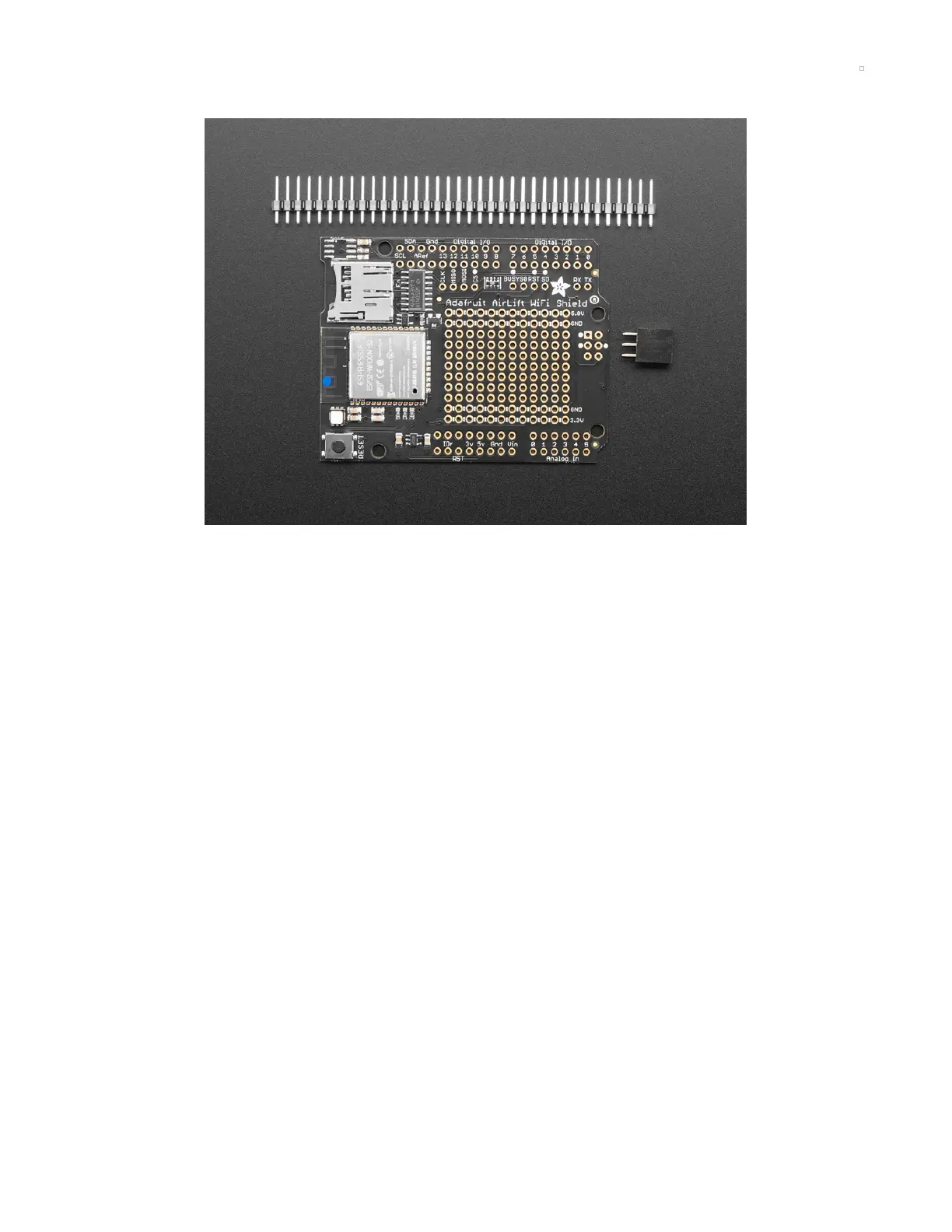

The shield comes with 0.1" standard header. Standard header does not permit stacking but it is
mechanically stronger and they're much less expensive too! If you want to stack a shield on top, do not
perform this step as it is not possible to uninstall the headers once soldered in! Skip down to the bottom
for the stacking tutorial
