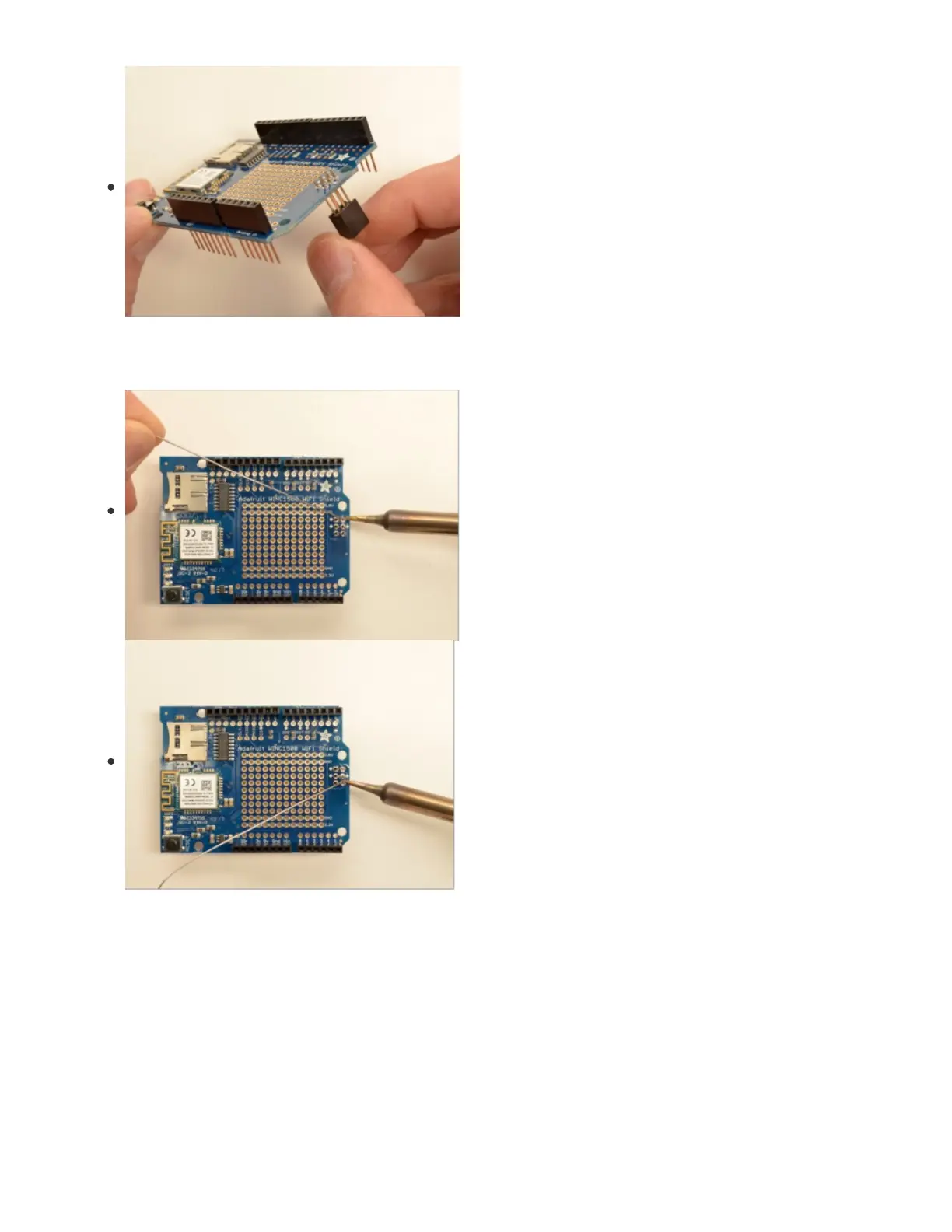

Insert the 2x3 stacking header as shown.
Solder into place.
© Adafruit Industries https://learn.adafruit.com/adafruit-airlift-shield-esp32-wifi-co-processor Page 19 of 56

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Adafruit AirLift Shield ESP32 and is the answer not in the manual?

Adafruit AirLift Shield ESP32 Specifications

General IconGeneral
MicrocontrollerESP32
InterfaceSPI
WiFi802.11 b/g/n
Voltage Level3.3V
TypeShield
SD Card SocketNo
Wireless ConnectivityWiFi
Input Voltage5V
Flash Memory4 MB
SRAM520 KB
Clock Speed240 MHz
USBNo
Compatible BoardsArduino Uno, Mega
AntennaCeramic
Digital I/O PinsNot directly accessible (used for SPI communication)
