Adam A5 - ADAM A5 Front and Rear Panel Overview; Front View Components; Rear Panel Connections

4

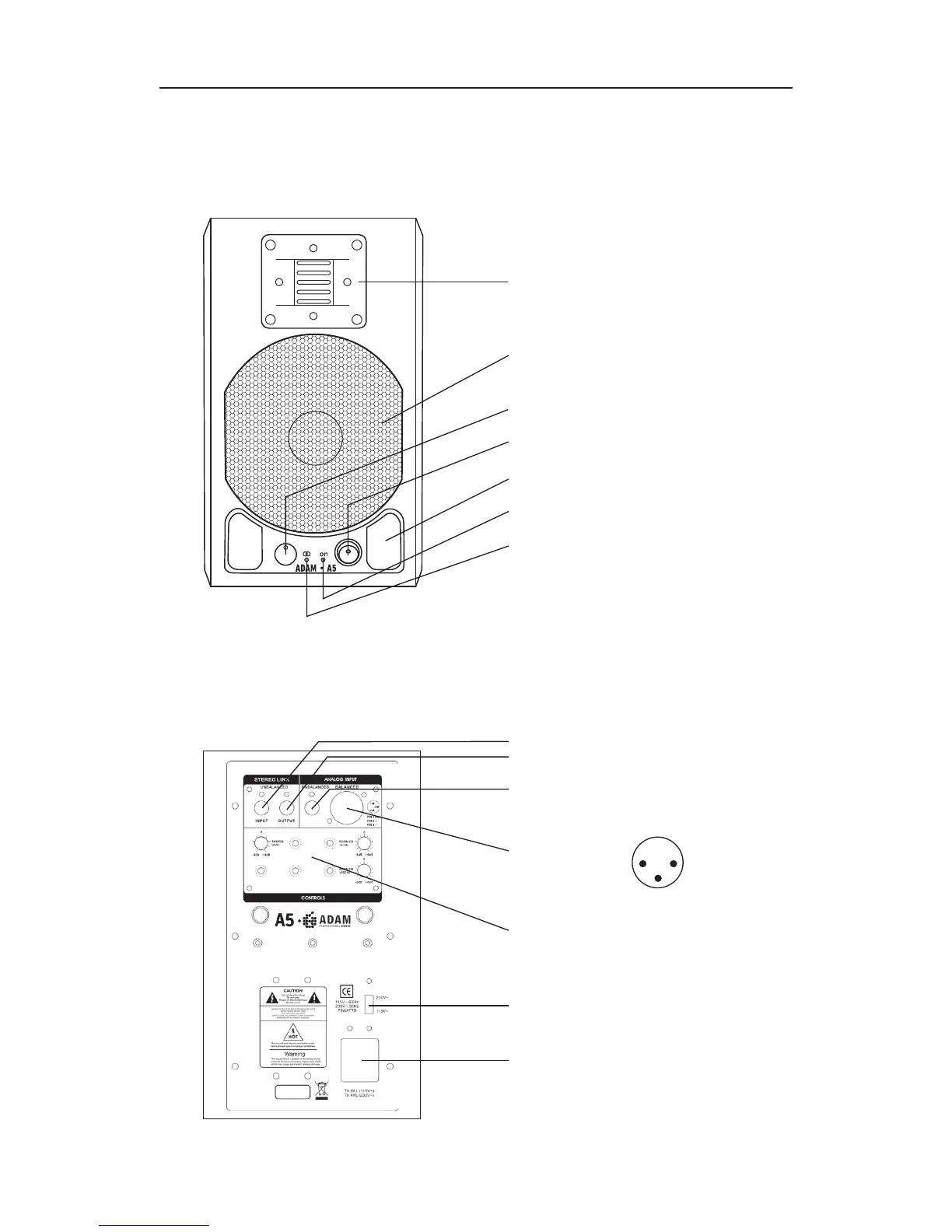

1. Front and Rear View
A5 - Front view
A5 - Rear view
ART Tweeter
5.5“ (147 mm) Mid/Bass Woofer
Volume Control
Power Switch
Bass Reflex Ports
(Blue) ‘on’ LED
(White) Stereo Link LED
RCA Input Jack unbalanced
RCA Output Jack unbalanced
RCA Input Jack unbalanced (Analog)
XLR Input Jack
balanced, Wiring:
Controls
Voltage Selector
115V/230V.
Power Cable Jack
12
3
1 GND
2 +
3 –
1.1
1.2
