Wall mounting
1. Locate the keyhole slots on the back of the clock, at either end. The slots
are placed six inches apart (See Figure 1: Serial Clock—Rear Panel on
page 7).
2. Install two #8 screws into the wall/mounting surface, six inches apart.
Use the type of screws and anchoring methods appropriate for the
mounting surface. For example, use wood screws if you are mounting to
a wood surface. (These screws are not supplied.) Make sure that the
heads of the screws are placed at least 3/8 of an inch from the wall.
3. Insure that the plate and the feet are facing in, towards the backside of
the clock (See Figure 4: Serial Clock—Side View).
4. Hang the clock on the two screws located on the wall/mounting surface,
using the keyhole slots.
Countertop or desk mounting
1. Remove the screw and plate on the backside of the clock (See Figure 1:
Serial Clock—Rear Panel on page 7).
2. Turn the plate over so that the “feet” protrude out (away) from the

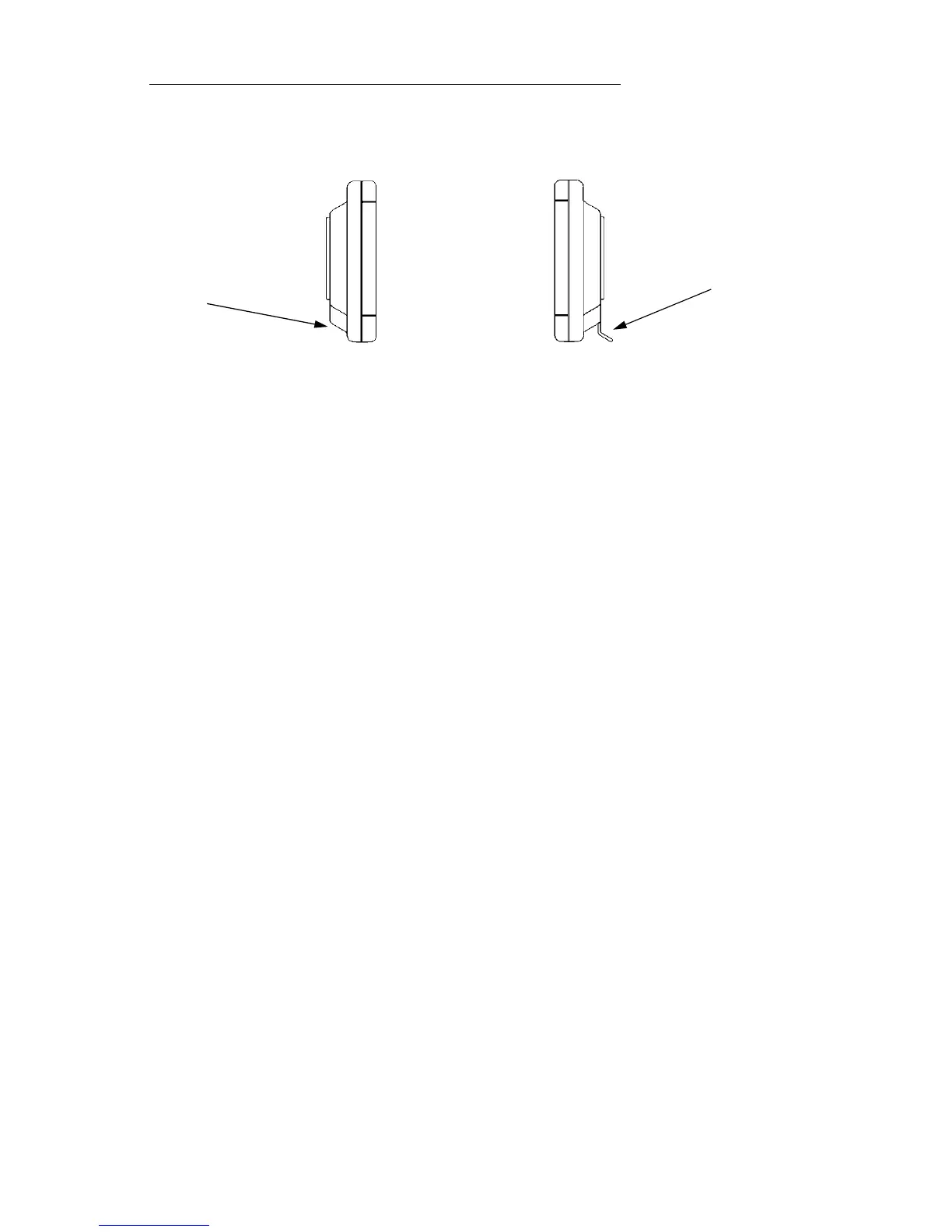

backside of the clock (See Figure 4: Serial Clock—Side View). The
plate can be adjusted up or down to obtain the desired viewing angle.
3. Replace the screw and stand the clock upright.
