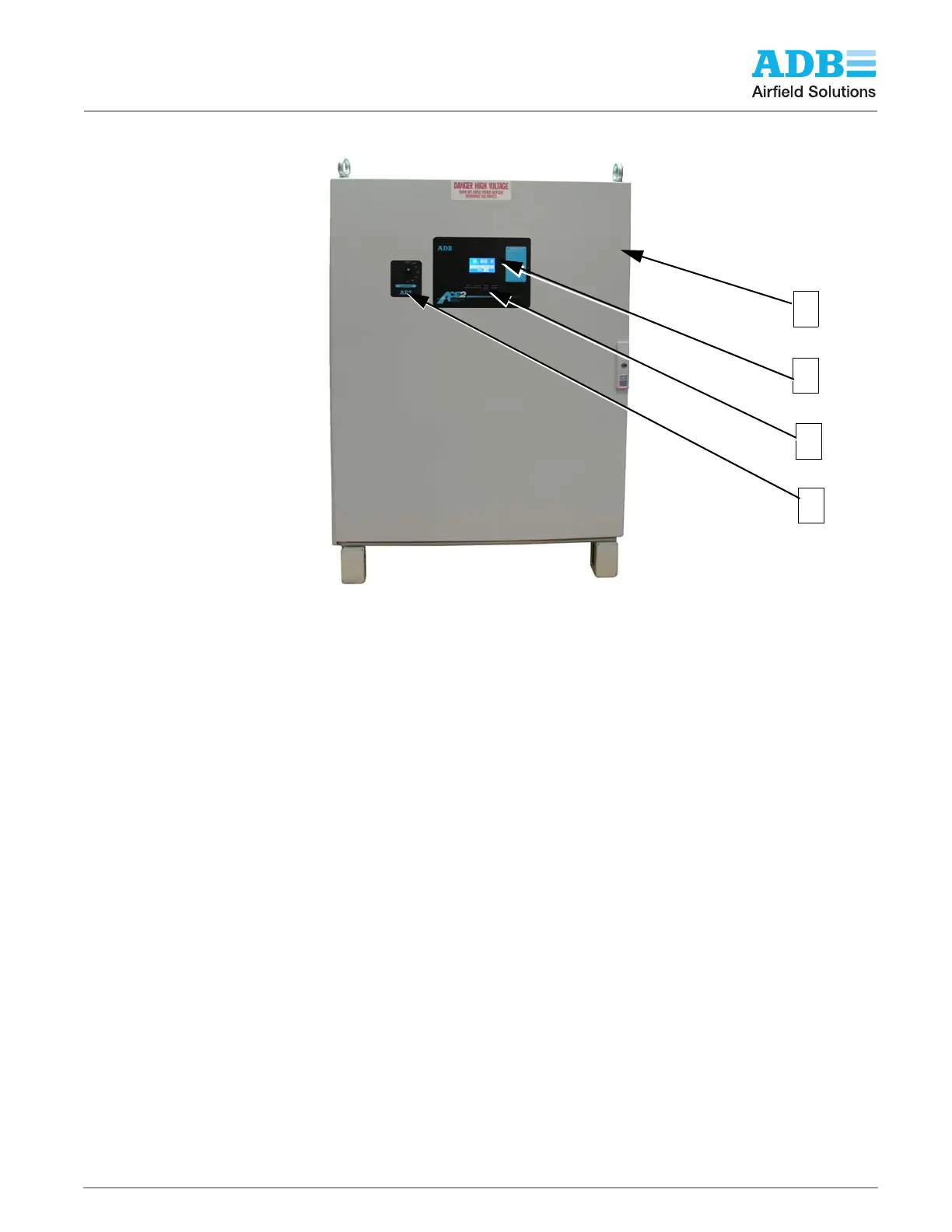

2.2.3 Internal-Mount Figure 2: Internal-Mount Assembly
1. Constant Current Regulator
2. ACE2 Display
3. ACE2 Control Keys
4. Rotary Step Switch
Refer to Figure 2. The ACE2 is a universal device that is used to control most types of CCRs
and/or controlled elements regardless of the manufacturer. The ACE2 printed circuit boards
are mounted inside a small and rugged environmental enclosure that can be:wall-mounted,
placed on a CCR, or enclosed in the CCR itself. The ACE2 consists of microprocessor-
based module(s) that process communication, control commands, input/ output interface,
and failsafe functionality for controlled elements in the airfield lighting vault.
