Advanced Control Equipment (ACE2)
96A0357 Rev. F
Installation
© ADB Airfield Solutions All Rights Reserved24
2.3.3 Internal-Mount
Installation
The Internal-mount ACE2 is installed into the door of the L-829 CCR, see Figure 16. The
CVM and IRMS board (if present) are already wired inside the CCR. Only running and
connecting external ACE2 communications wiring among other ACE, ACE2, and the Vault
computer is required. The ACE2 is located on the interior, attached to the hinged door. To
gain access to the ACE2, open the CCR door, unlatch and open the ACE2 enclosure door.
See Figure 15.

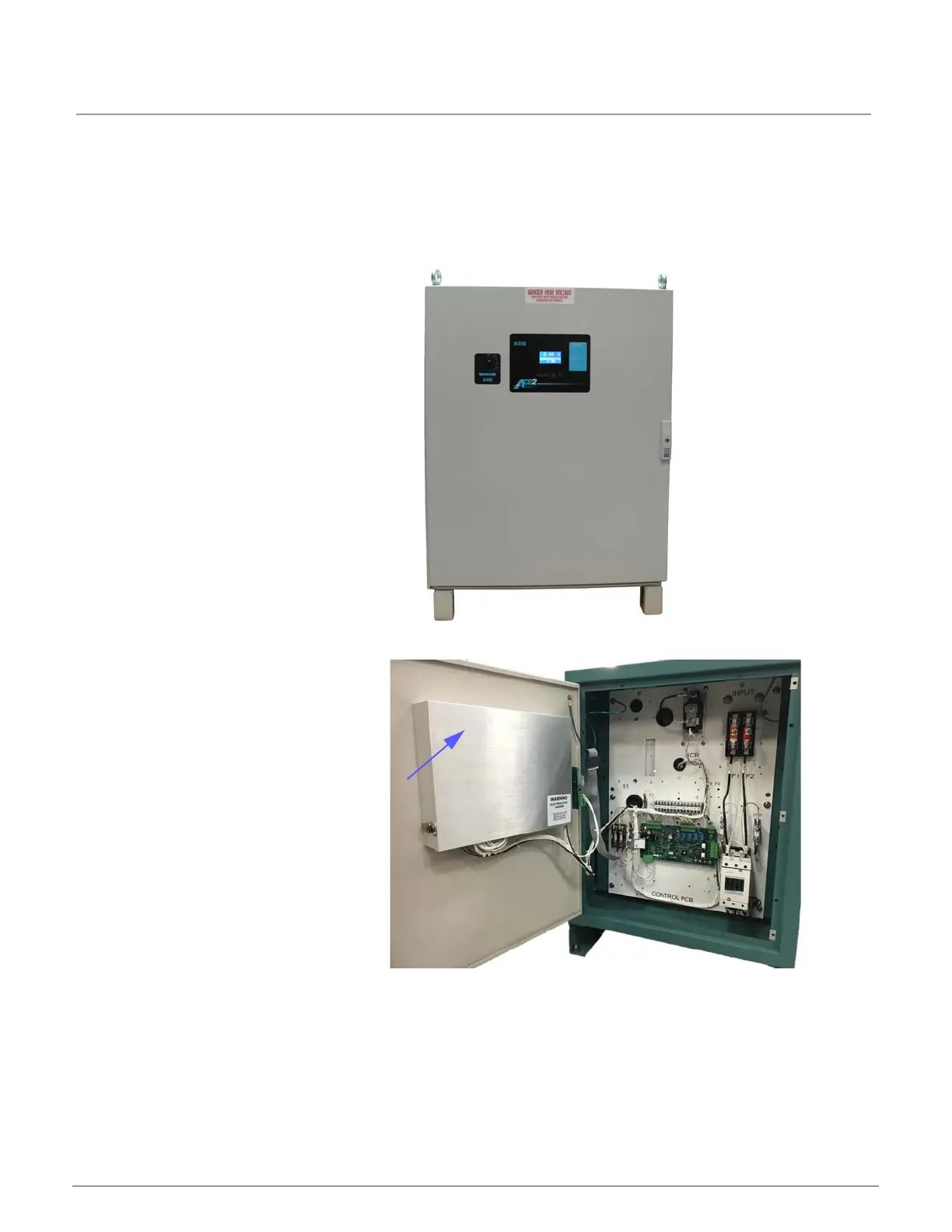

Figure 15: Internal-Mount, External View
Figure 16: Internal-Mount, Interior View
