L-804 Elevated Runway Guard Light
96A0218 Rev. X
Installation
© ADB bvba All Rights Reserved12

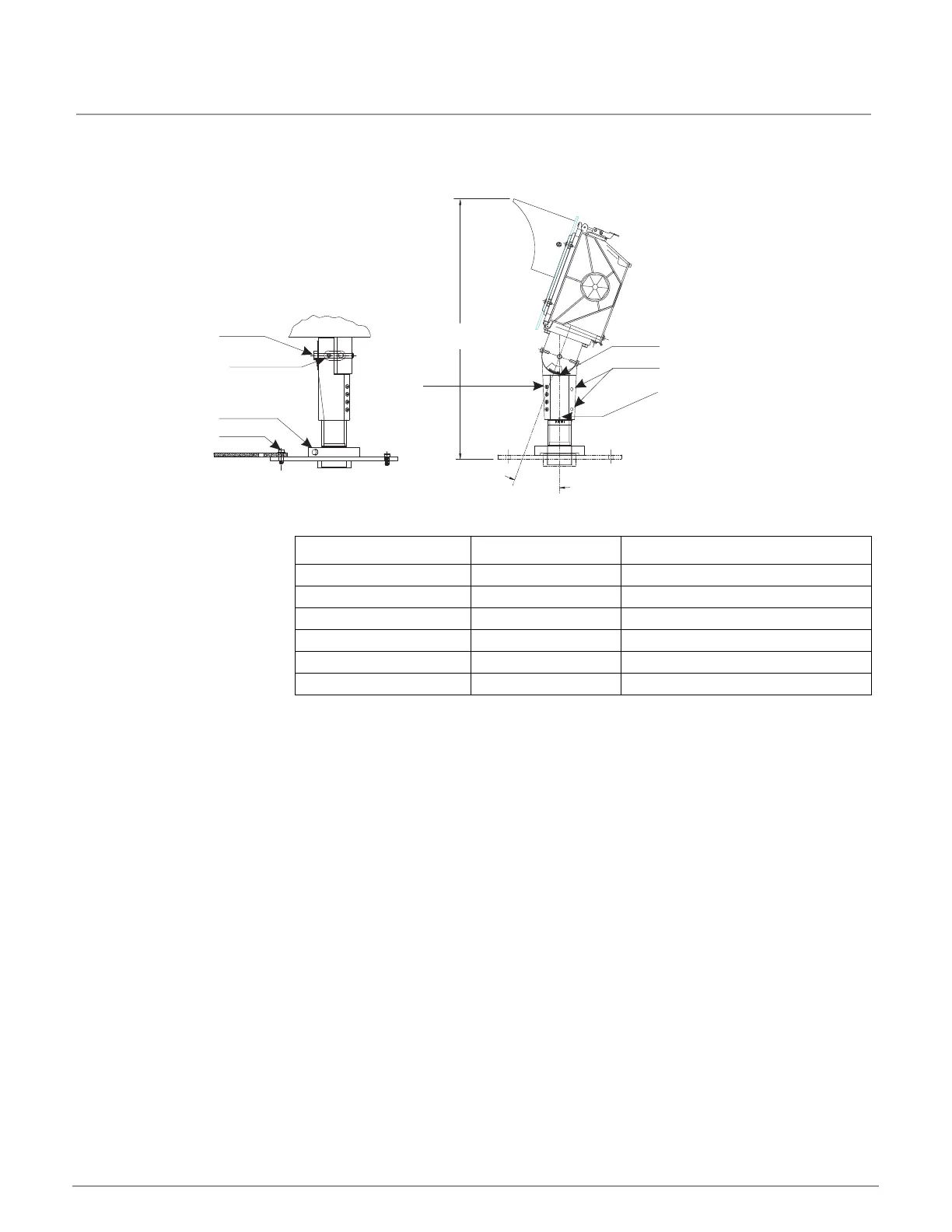

Figure 3: Bolt Torque Values
Table 3: Table 8. Bolt/Screw Torque Values
0
2
0
20
1020 10 0 20
26-in MAX
(660.4 mm)
20.00°
7 - Set Screw
9 - Indicator Pin for Vertical Setting
8 - Phillips
Head Screws
6 - Hex Bolts
2 - Set Screws
5 - Hex Bolts
4 - Hex Bolts
10 - Indicator Pin for Horizontal Setting
Item Number Number/Type Torque Values
2 2 set screws 140 in-lb
4 6 hex bolt 15 ft-lb
5 2 hex bolts 70 ft-lb
6 1 hex bolt 77 ft-lb
7 2 set screws 40 ft-lb
8 4 Phillips head screws Hand-tighten
