56 American Dryer Corp. 113063-11
SECTION X
PROCEDURE FOR FUNCTIONAL CHECK
OF REPLACEMENT COMPONENTS
1. Microprocessor Controller (Computer) Board
a. Upon completing installation of the replacement microprocessor controller (computer) board, reestablish
power to the dryer.
b. Start the drying cycle.

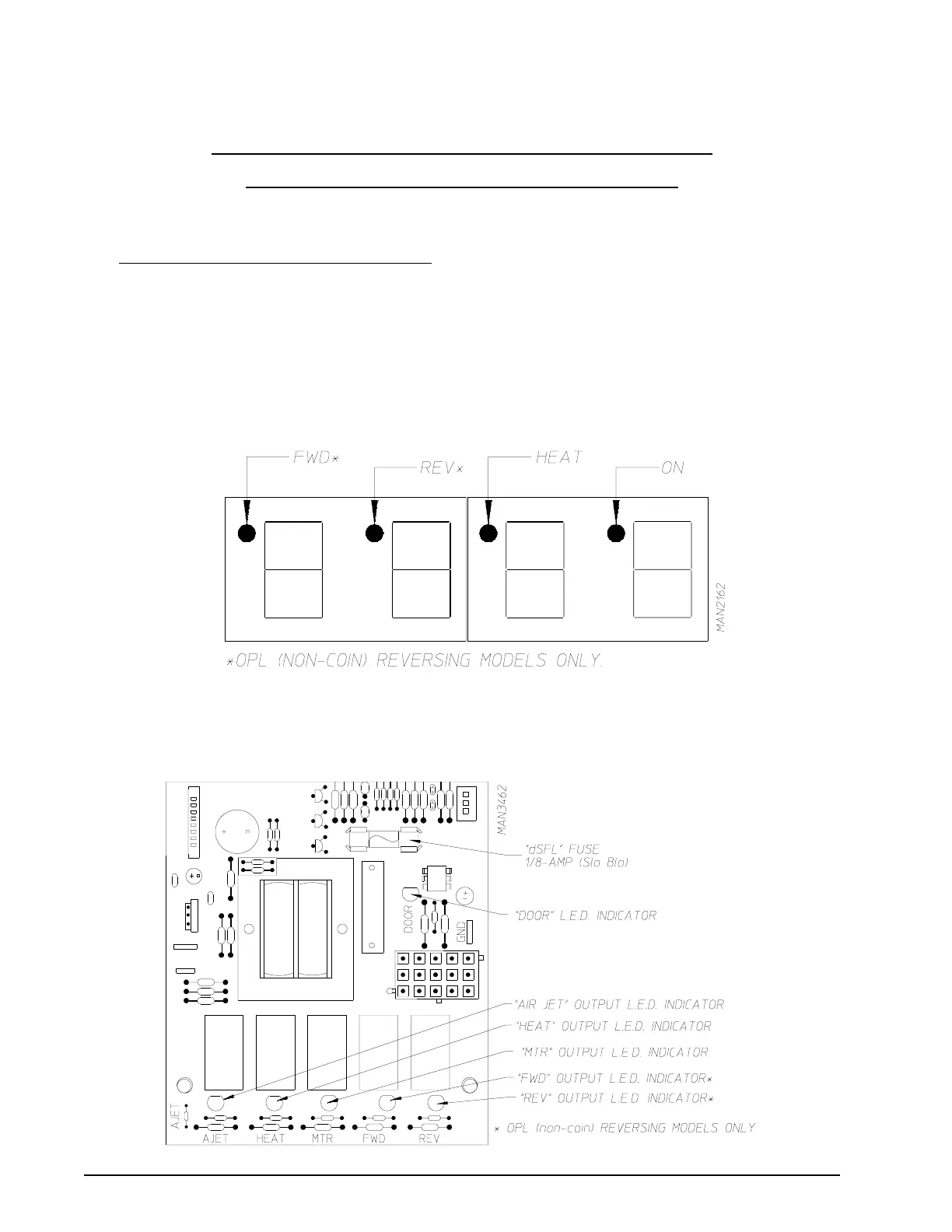

c. Verify that the motor(s) and the heat indicator dots, in the microprocessor controller (computer) light
emitting diode (L.E.D.) display are on. (Refer to the illustration below.)
d. Verify that motor(s), heat, and door indicator lights on the back side of the microprocessor controller
(computer) board are lit. (Refer to illustration below.)
