3. Door Component Replacement and Removal
a. Manual Door Replacement or Removal
1) Discontinue electrical service to the dryer.

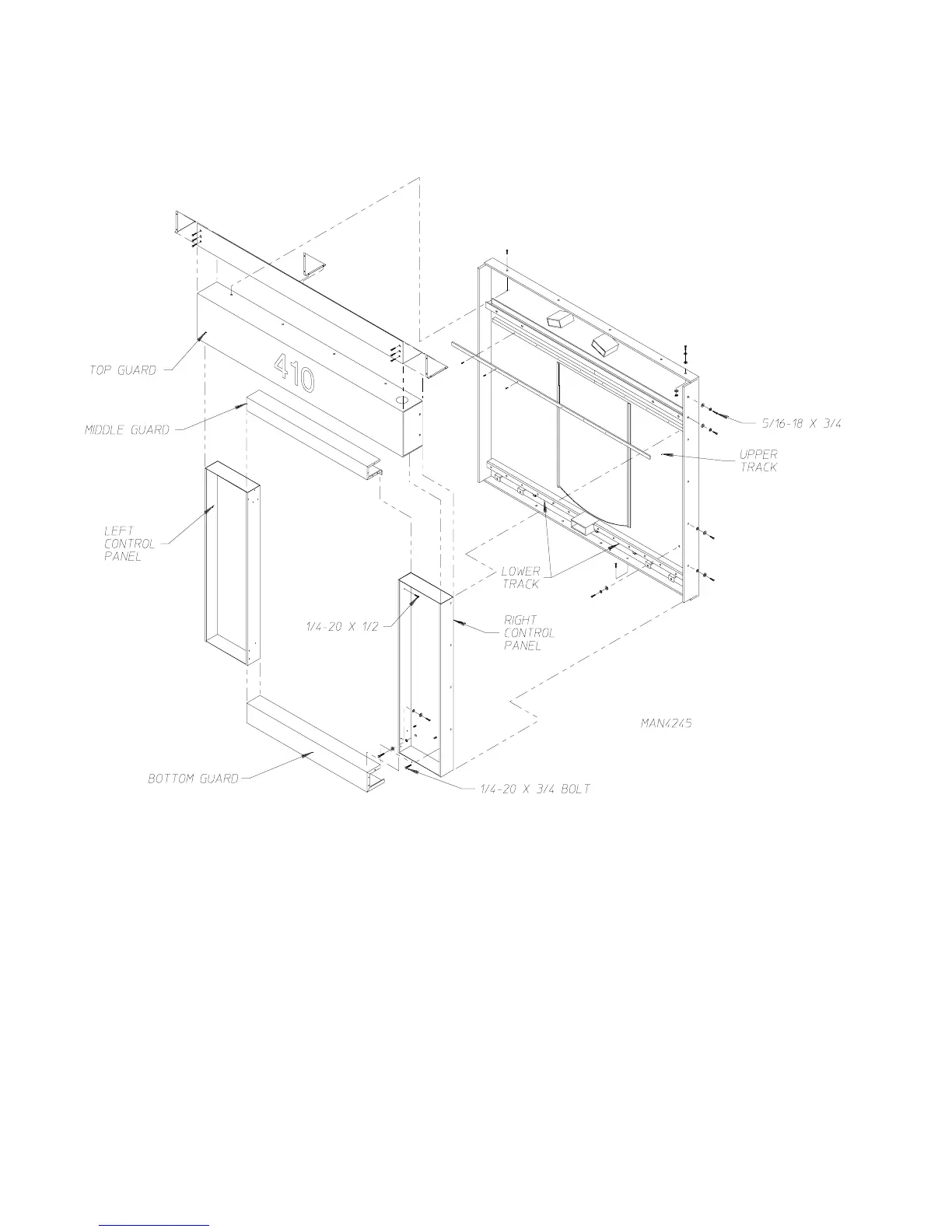

2) Remove the two (2) 1/4-20 x 1/2" bolts from each side of the middle guard and then remove the guard.
a) For dryers manufactured as of November 1, 1995, loosen the jam nut and screw down the trolley
adjustment bolts.
b) For dryers manufactured prior to November 1, 1995, remove the two (2) trolley adjustment plates.
3) Lift the door(s) off of the track(s) and remove.
4) To install new manual door(s) or to reinstall manual door(s), reverse above procedure.
