ADC AD-50 - Page 38

34 American Dryer Corp. 113066 - 17

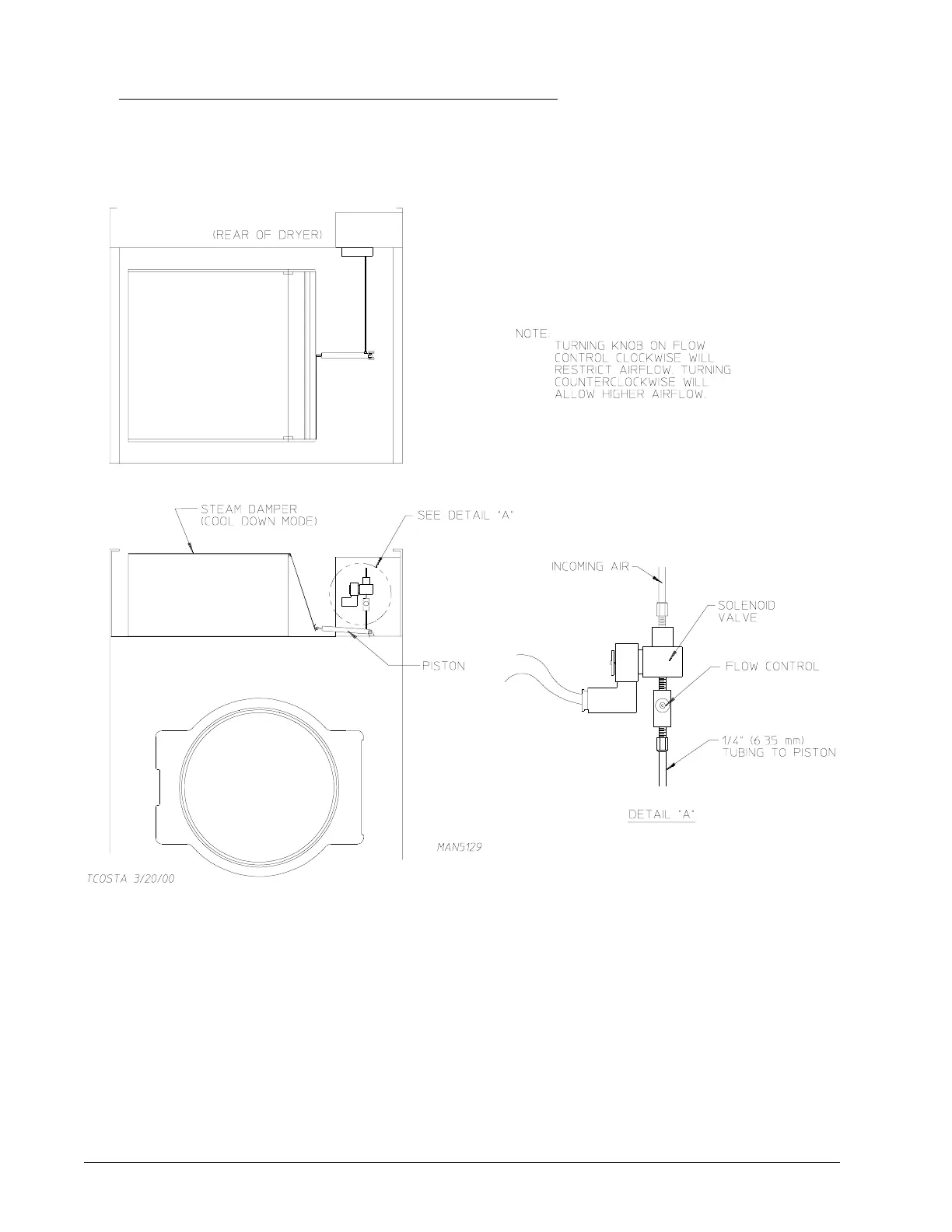

6. Steam Damper Air Piston (Flow Control) Operation Adjustment
Damper operation was tested and adjusted prior to shipping at 80 PSI (5.51 bars). If damper air adjustment
is necessary, locate the flow control valve and make the necessary adjustments as noted below.
