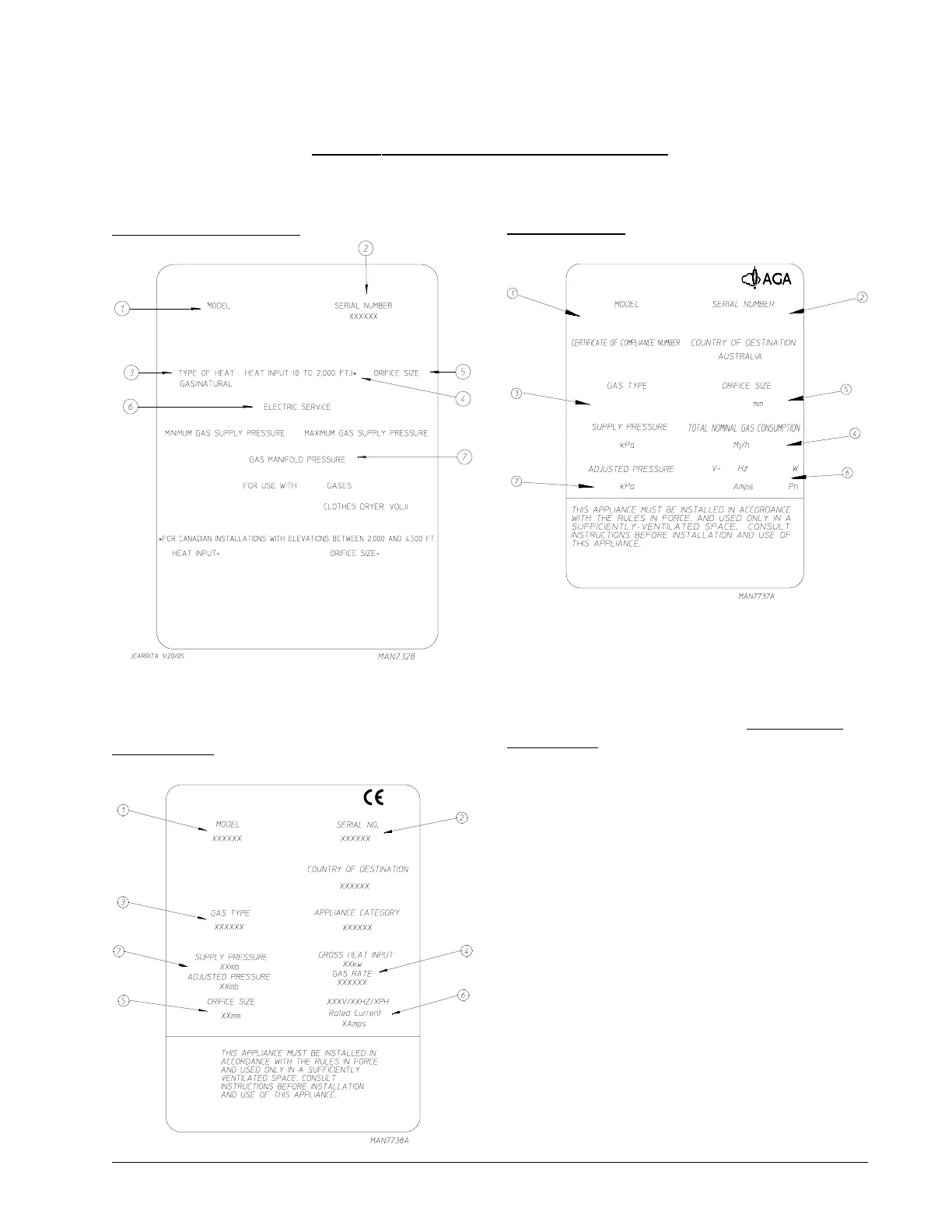

SECTION VIII
DATA LABEL INFORMATION
STANDARD LABEL
AGA LABEL
CE LABEL
When contacting American Dryer Corporation certain
information is required to ensure proper service/parts
information from ADC. This information is on the data
label either located to the back side of the upper control
door or left side panel/wall area behind the control door.
When contacting ADC please have the model number and
serial number available.
1. MODEL NUMBER – This describes the style of dryer
and type of heat (gas, electric, or steam).
2. SERIAL NUMBER – Allows the manufacturer to gather
information on your particular dryer.
3. TYPE OF HEAT – This describes the type of heat for
your particular dryer, gas (either natural gas or propane
gas), electric, or steam.
4. HEAT INPUT (For Gas Dryers) – This describes the
heat input in British thermal units per hour (Btu/hr) or
kilowatts (kW).
5. ORIFICE SIZE (For Gas Dryers) – Gives the number
drill size used.
6. ELECTRIC SERVICE – This describes the voltage and
current rating for a particular model.
7. GAS MANIFOLD PRESSURE (For Gas Dryers) – This
describes the manifold pressure taken at the gas valve
tap.
