SECTION VII
PROCEDURE FOR FUNCTIONAL CHECK OF
REPLACEMENT COMPONENTS
1. Microprocessor (computer) Board
a. Upon completing installation of the replacement microprocessor (computer) board, reestablish power
to the dryer.
b. Start the drying cycle.

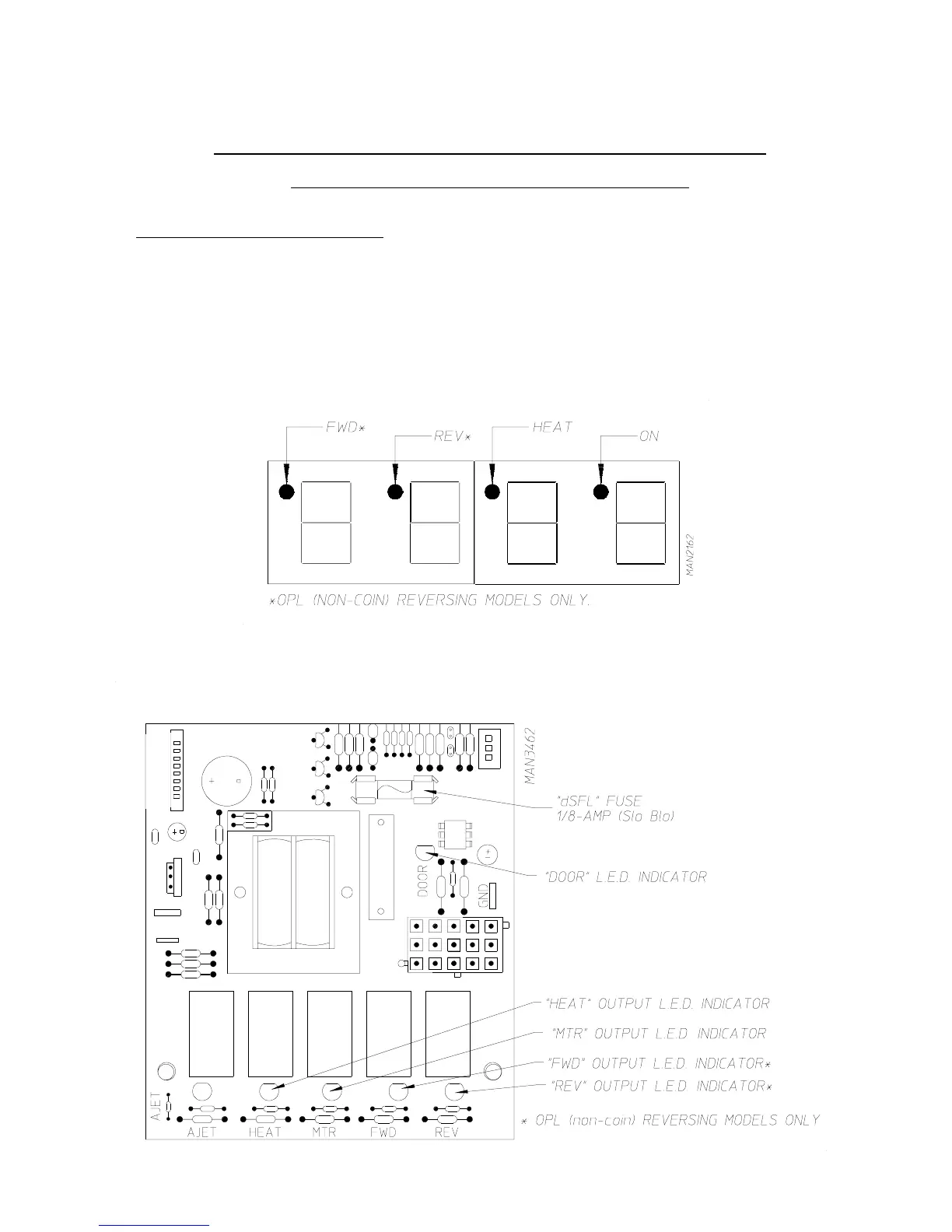

c. Verify that the motor(s) and the heat indicator dots, in the microprocessor (computer) L.E.D. display
are on. (Refer to the illustration below.)
d. Verify that the motor(s) heat, and door indicator lights on the back side of the microprocessor
(computer) board are lit. (Refer to the illustration below.)
