ADEEPT Hexapod - Mount Servos to Body

www.adeept.com
31

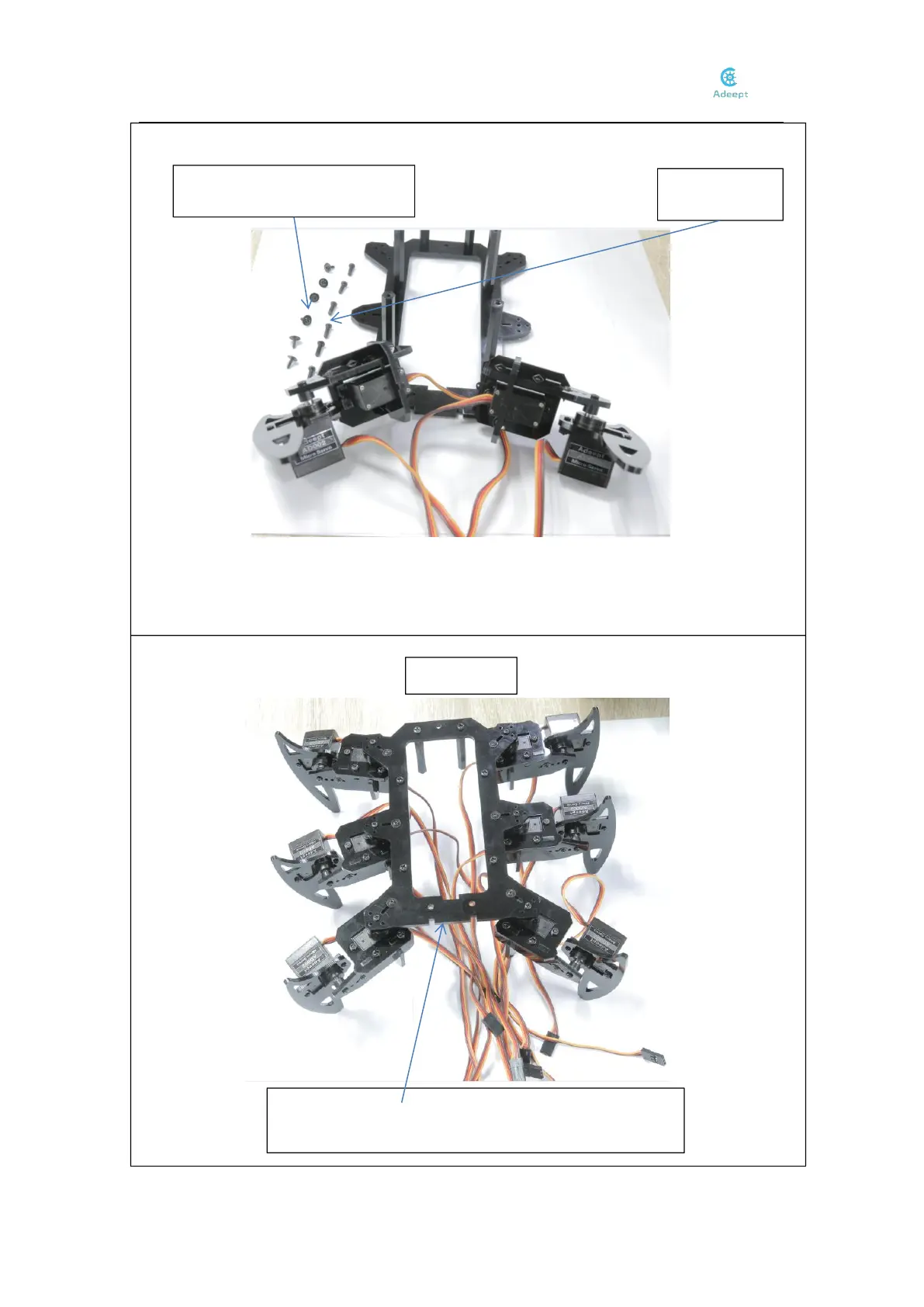

Assemble the following components
Effect diagram after assembling
M2.5*8 screw
X6
M1.7*6*6 self-tapping Screw
X6
Note: The front of the bottom plate is without nylon
standoffs. The legs on both sides should be as shown.
Front view
