ADEEPT Hexapod - Page 37

www.adeept.com
35

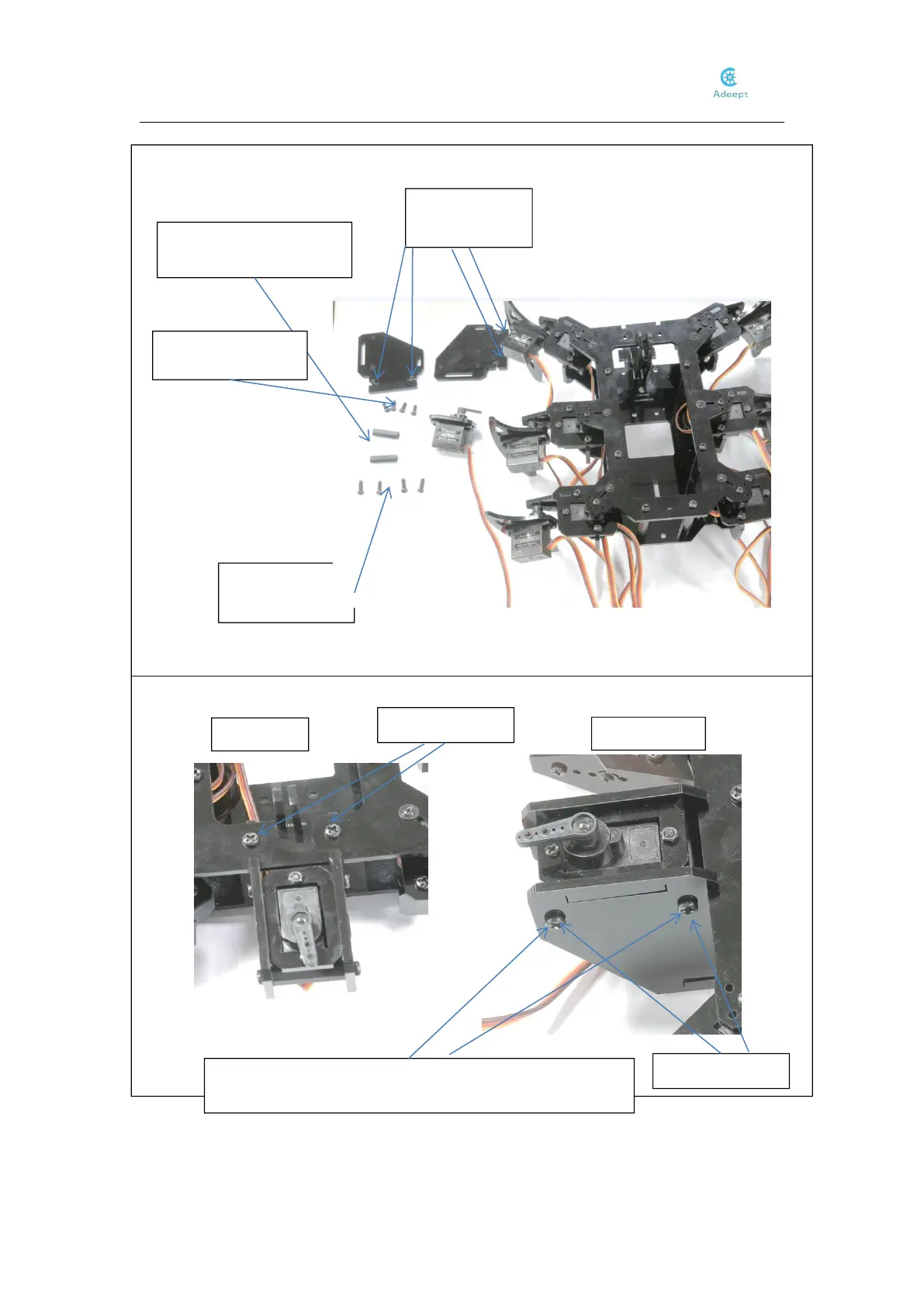

Assemble the following components
Effect diagram after assembling
M3 nut
X4
M3*10 screw
X4
M3*20 Nylon standoff
X2
M3*8 screw
X4
Front view
Note: These two are the fixed points of the nylon
standoffs and are used to fix the servos.
Side view
M3*10 screw
M3*8 screw
