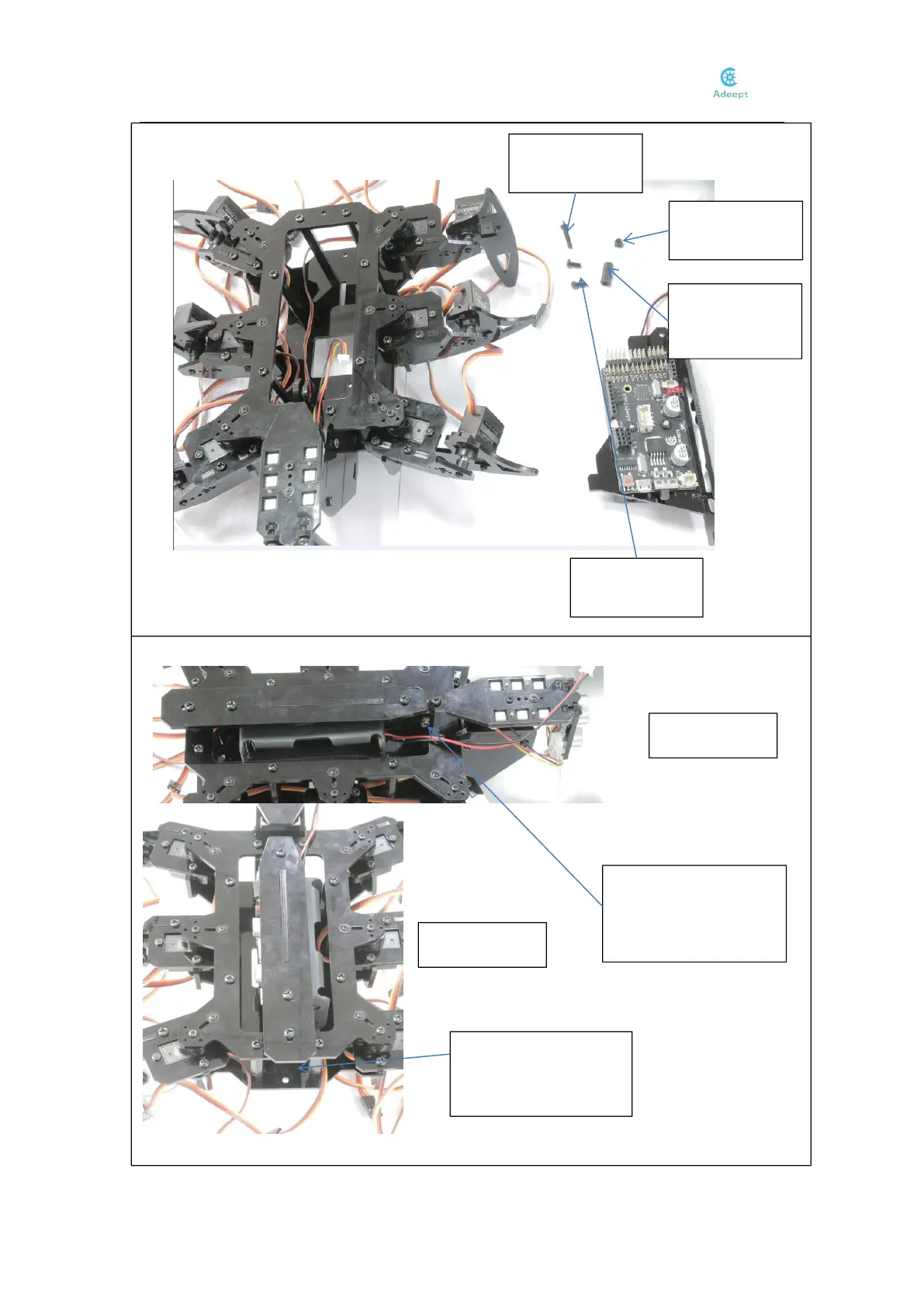

Assemble the following components
42
Effect diagram after assembling
+
M3 lock nut
X1
M3*15
Nylon Standoff
X1
M3*16 screw
X1
M3*8 screw
X2
Front view
Side view
The position of the
nylon standoff.
Note: do not tighten
the M3 lock nut or it
cannot move.
