Lesson 30 Water Level Detection
Introduction
The module is a simple water level sensor. It measures the water volume by the printed
wires exposed to the air on the module. The more water on the surface, more wires
connected. Thus, the area of electrified wires gets larger, so the output voltage will
increase. The surface of the sensor is gilded to prolong its life.
Components
- 1 * Raspberry Pi
- 1 * GPIO Extension Board
- 1 * 40-Pin GPIO Cable
- 1 * Breadboard
- 1 * Water Level Module
- 1 * LM393 CM(Comparator) Module
- 1 * ADC0832 Module
- 1 * 2-Pin Wires
- 1 * 3-Pin Wires
- 1 * 4-Pin Wires
- 1 * 5-Pin Wires
Experimental Principle
The Fritzing images:

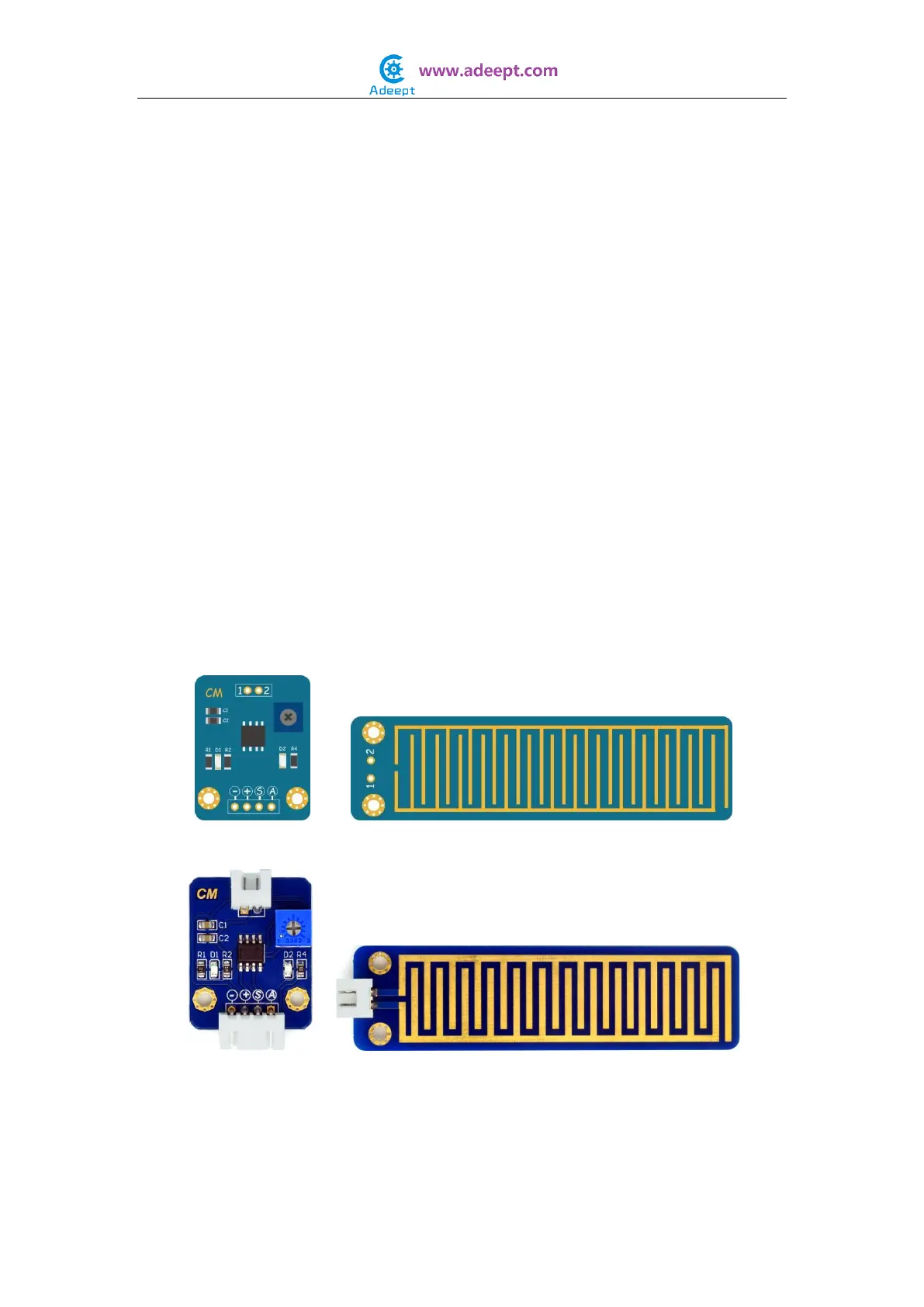

The Physical picture:
This experiment collects the data of water level by the Water Level Sensor module and
displays it on the terminal.
Experimental Procedures
Step 1: Build the circuit
