AIR COMPRESSORS
DIRECT & BELT DRIVEN MANUALS
COPYRIGHT ADENDORFF MACHINERY MART
16

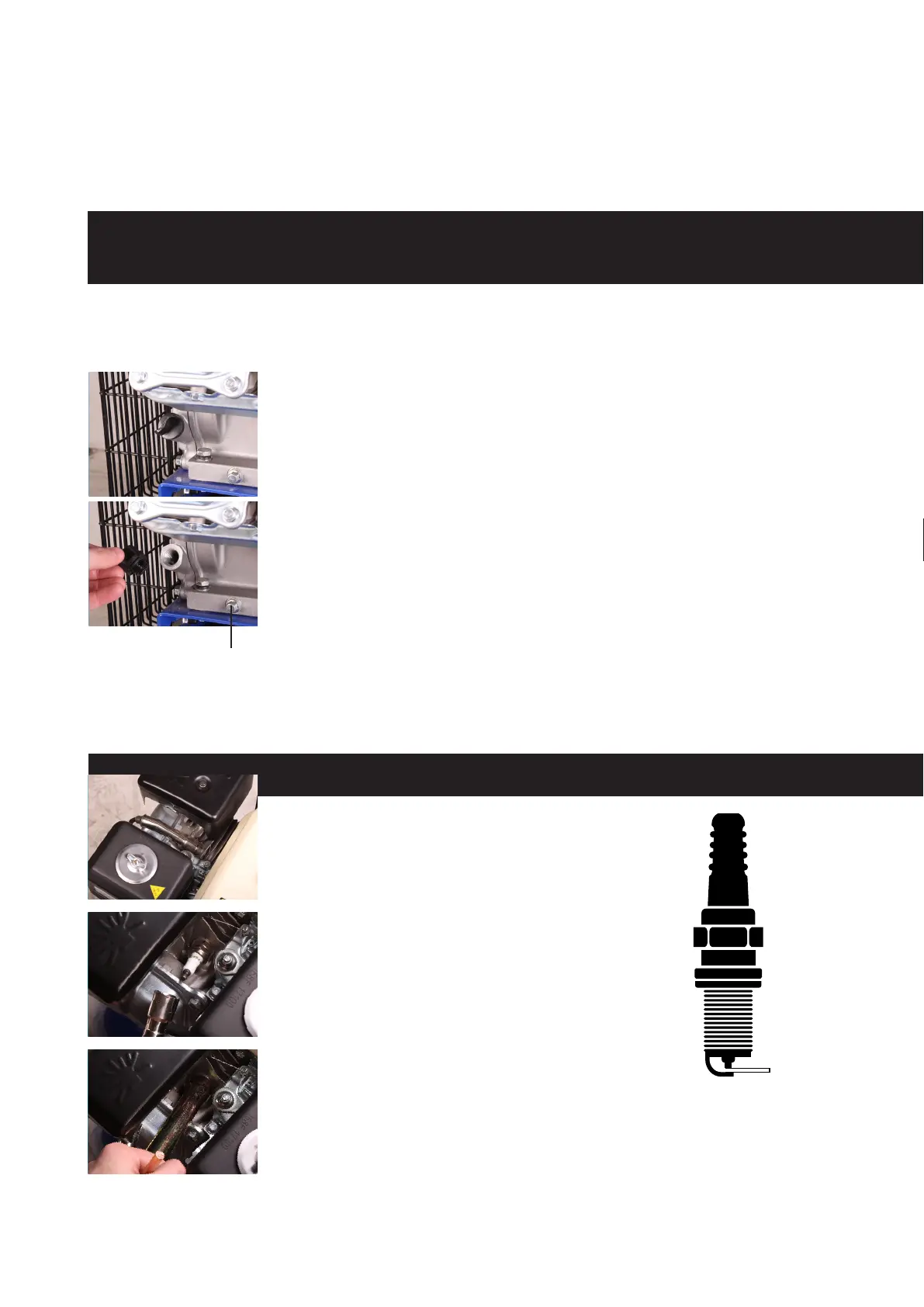

CHANGING THE ENGINE OIL
CAUTION: PROLONGED EXPOSURE TO USED ENGINE OIL IS HARMFUL.
ALWAYS WASH YOUR HANDS THOROUGHLY AFTER HANDLING USED ENGINE OIL.
1. Unscrew and remove the oil filter cap/dipstick.
2. Place an oil collection tray under the drain plug.
3. Unscrew the drain plug and allow the used engine oil to drain from the
crankcase into the oil collection tray.
4. Replace the drain plug.
5. Fill the crankcase with engine oil.
• Fill until the oil reaches the threads in the oil fill tube.
• We recommend the use of SAE30 oil in this compressor petrol engine,
available from your Adendorff dealer.
7. Replace the oil filler cap/dipstick.
ENVIRONMENTAL PROTECTION
ONE OF THE MOST DAMAGING SOURCES OF POLLUTION IS OIL. DO NOT THROW AWAY USED
ENGINE OIL IN WITH YOUR DOMESTIC RUBBISH OR POUR IT DOWN DRAIN OR SINKS. PLACE
IT IN A LEAK PROOF CONTAINER AND TAKE IT TO YOUR LOCAL WASTE DISPOSAL SITE.
CHANGING THE SPARK PLUG
CAUTION: ALLOW THE ENGINE TO COOL BEFORE REMMOVING THE SPARK PLUG
1. Remove the spark plug cap from the spark plug.
2. Use the spark plug spanner to remove the spark plug.
3. Remove any carbon that has accumulated around
the electrode.
4. Check the spark plug gap (a), it should be between
0.7 and 0.8mm, adjust if necessary.
5. Check the overall condition of the spark plug for
erosion or pitting and replace if necessary.
6. Reinstall the spark plug and replace the spark plug cap.
DRAINING THE FUEL TANK
1. Set the fuel supply valve to OFF.
2. Unscrewandremovethefuelvalvecup,thenremovethe‘Ö’ringandfuelvalvecup.
3. Place an approved petrol storage container under the fuel valve and set the fuel
supplyvalveto“ON’.Thefuelinthetankwilldrainintothecontainer.
4. Replace the “O” ring and fuel valve cup.
NOTE: Drain the engine oil when
the engine is warm, this will
ensure the oil flows out faster.
0.7 - 0.8 mm
DRAIN
PLUG
