AIR COMPRESSORS
DIRECT & BELT DRIVEN MANUALS
7
OUTLET PRESSURE ADJUSTMENTS
PORTABLE COMPRESSORS
1 Pressure adjusting knob
2. Outlet Taps
3. Pressure Gauge
4. Water Drain Valve
TO ADJUST OUTLET PRESSURE
TO INCREASE PRESSURE
Turn knob (1) clockwise.
TO DECREASE PRESSURE
Turn knob 1 (anticlockwise).
OUTLET TAPS
Slide knurled section (2) away from body
to open, push towards body to close.
NOTE: Pressure Gauge (3). ONLY APPLICABLE TO
CERTAIN MODELS. Pressure shown will differ by
approximately 1 bar depending on whether the
outlets are open/closed
STATIONARYCOMPRESSORS
These machines are not supplied with the facility to adjust outlet pressure.
A comprehensive range of airline accessories is available from your local
Adendorff Branch.
OVERLOADBUTTON(SINGLEPHASEONLY)ONLY APPLICABLE TO CERTAIN MODELS.
The electric motor is fitted with an automatic overload detector which will stop the
motor if an overload is detected.
If this happens,
I. SWITCH OFF THE PRESSURE
SWITCH (Push knob down or turn
switch). Allow the compressor to
cool down for 5-10 minutes.
II. Press the reset button shown on
the right.
III. Switch on pressure switch
(lift knob or twist switch).
If the overload trips repeatedly, it may indicate a fault with the compressor, in this case you should
OTHER PRODUCTS
WITHIN OUR RANGE
in addition to Air Compressors
from 3-35 cfm, we offer a vast
range of air tools and airline
equipment. Please ask your
local Adendorff outlet for
details of our range.

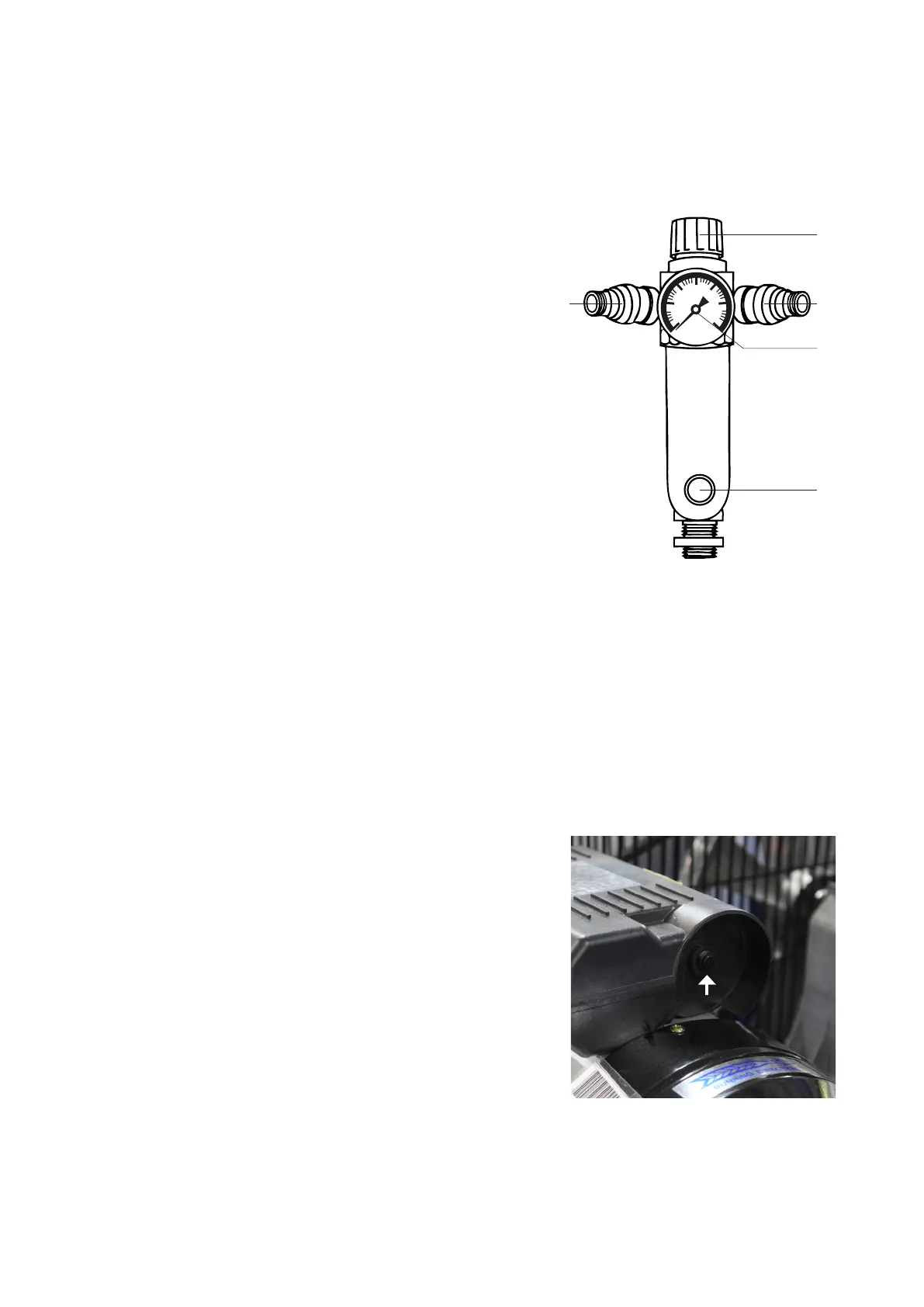

Figure 3
Water Oil Filter and Pressure Regulator
only applicable to certain models.
Illustrative purposes only
1
2
4
2
3
Figure 4
RESET BUTTON
