AIR COMPRESSORS
DIRECT & BELT DRIVEN MANUALS
COPYRIGHT ADENDORFF MACHINERY MART
6
ELECTRICAL COMPRESSORS
1 2 5 6 7 10
15
Illustrative purposes only
14a
14c
14e
14d
14b
14
11 12 138 93 4

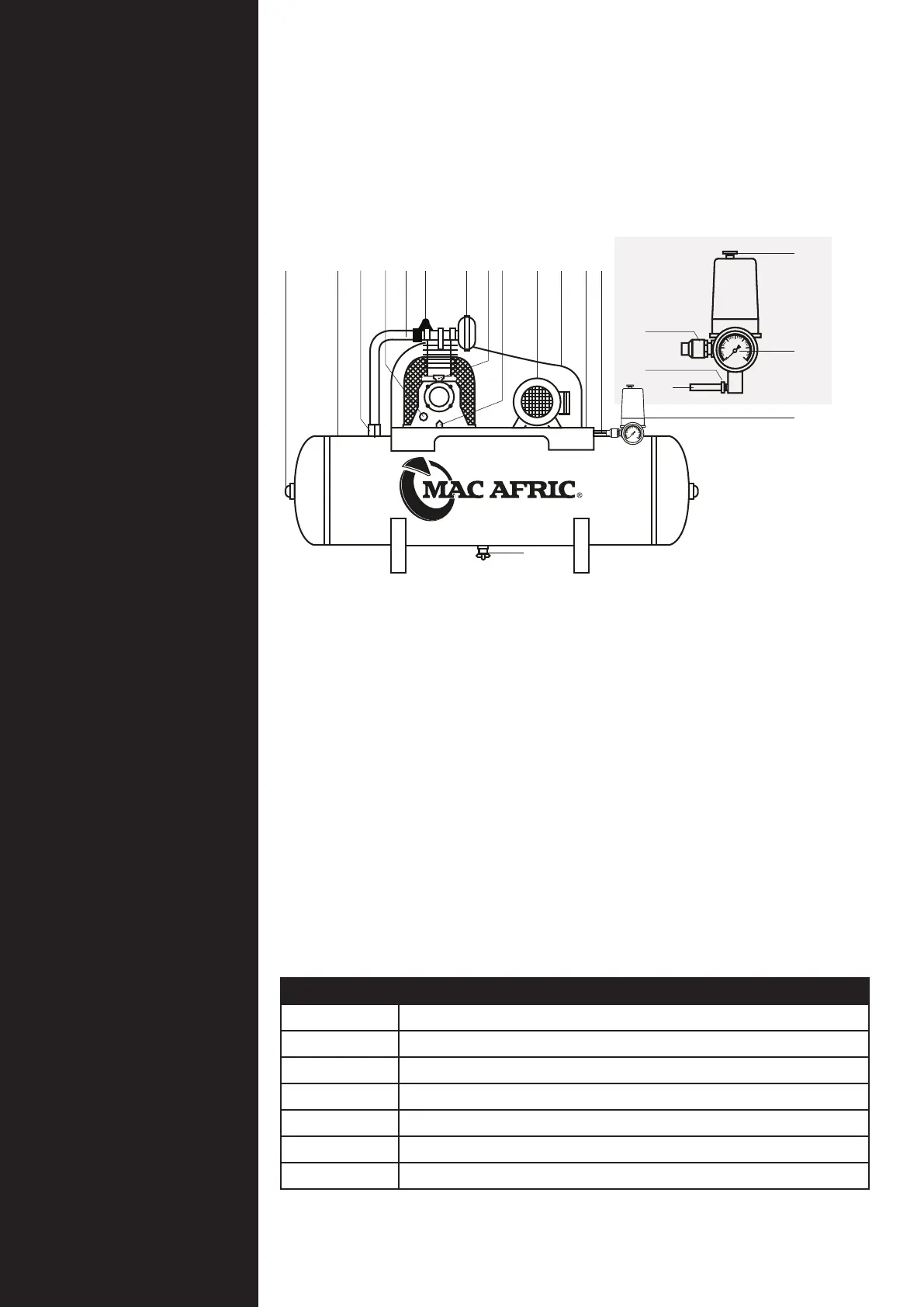

GENERAL ARRANGEMENT (BELT DRIVEN MODEL)
I. Inspection Plug 8. Oil Filler/Breather 14. Pressure Switch
2. Air Receiver 9. Oil Drain Plug 14a. On/Off Switch
3. Non-return Valve 10. Electric Motor 14b. Pressure Gauge
4. Oil Level Sight Glass 11. Wire Guard 14c. Saftey Valve
5. Air Delivery Pipe 12. Saddle 14d Air Bleed Valve
6. Air Compressor Pump 13. Air Bleed Pipe 14e. Air Bleed Pipe
7. Air Intake Filter 15. Drain Tap
Note: Illustrations are for reference only. Certain models may differ.
LUBRICATION
PUMP:
Use Adendorff Synthetic Compressor oil.
VOLUME MODEL
250 ml COMPRE-024-515-115
300 ml COMPRV-123
450 ml COMPRE-517 , COMPRV-120-130
1000 ml COMPRE-210-615-315-310
1600 ml COMPRV-510-575
1700 ml COMPRV-355-375-377
1750 ml COMPRE-300
Figure 2
