SET COMMUNICATION:
This section define the fundamental communication parameters of two buses, PROFINET and
EtherNet/IP.
By Pressing the “Set Communication” button from the main window for SW67660 (Fig. 2) the
window “Set Communication” appears (Fig. 3).
The means of the fields for “PROFINET” are:
In the field “IP ADDRESS” insert the IP address that you want to give to the Converter for
the PROFINET side;
In the fields “SUBNET Mask” insert the SubNet Mask for the PROFINET side;
In the fields “GATEWAY” insert the default gateway that you want to use for the PROFINET
side. This feature can be enabled or disabled pressing the Check Box field. This feature is used
for going out of the net;
In the field “Port” the port used for PROFINET communication is defined. The port has a fixed
value of 34964;
In the field "PROFINET Name of Station" is possible to assign a name to the PROFINET
node;
In the fields “Number Byte IN” insert the number of input byte of the slave station;
In the fields “Number Byte Out” insert the number of output byte of the slave station.
The means of the fields for “EtherNet/IP” are:
In the field “IP ADDRESS” insert the IP address that you want to give to the Converter for
the EtherNet/IP side;
In the fields “SUBNET Mask” insert the SubNet Mask for the EtherNet/IP side;
In the fields “GATEWAY” insert the default gateway that you want to use for the EtherNet/IP
side. This feature can be enabled or disabled pressing the Check Box field. This feature is used
for going out of the net;
In the field “Port” the port used for EtherNet/IP communication is defined. The port has a
fixed value of 44818.

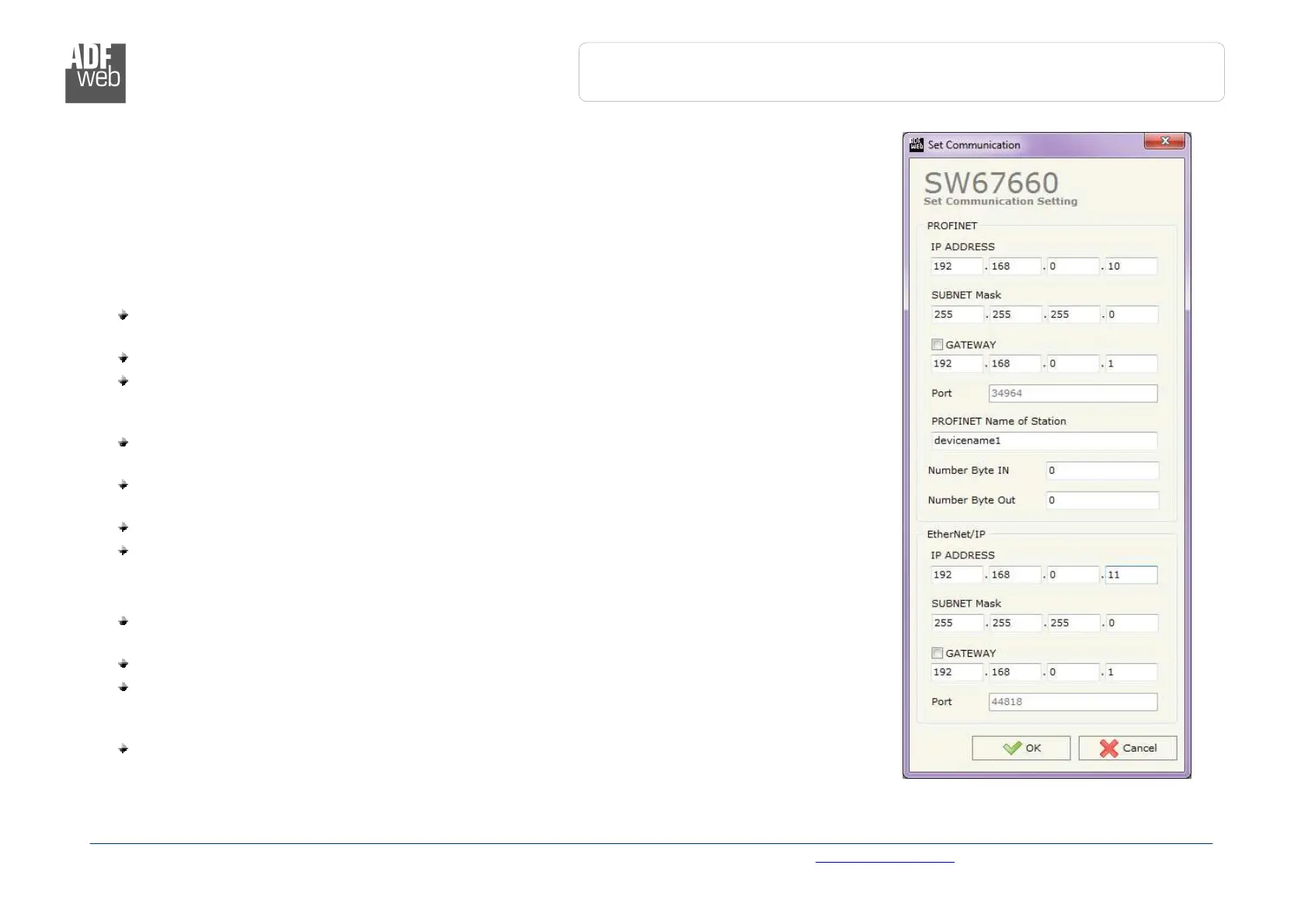

Figure 3: “Set Communication” window
