ADF Web HD67660-A1 - Connection Scheme

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31
User Manual
PROFINET
/
EtherNet/IP
Slave
Document code: MN67660_ENG Revision 1.000 Page 5 of 30

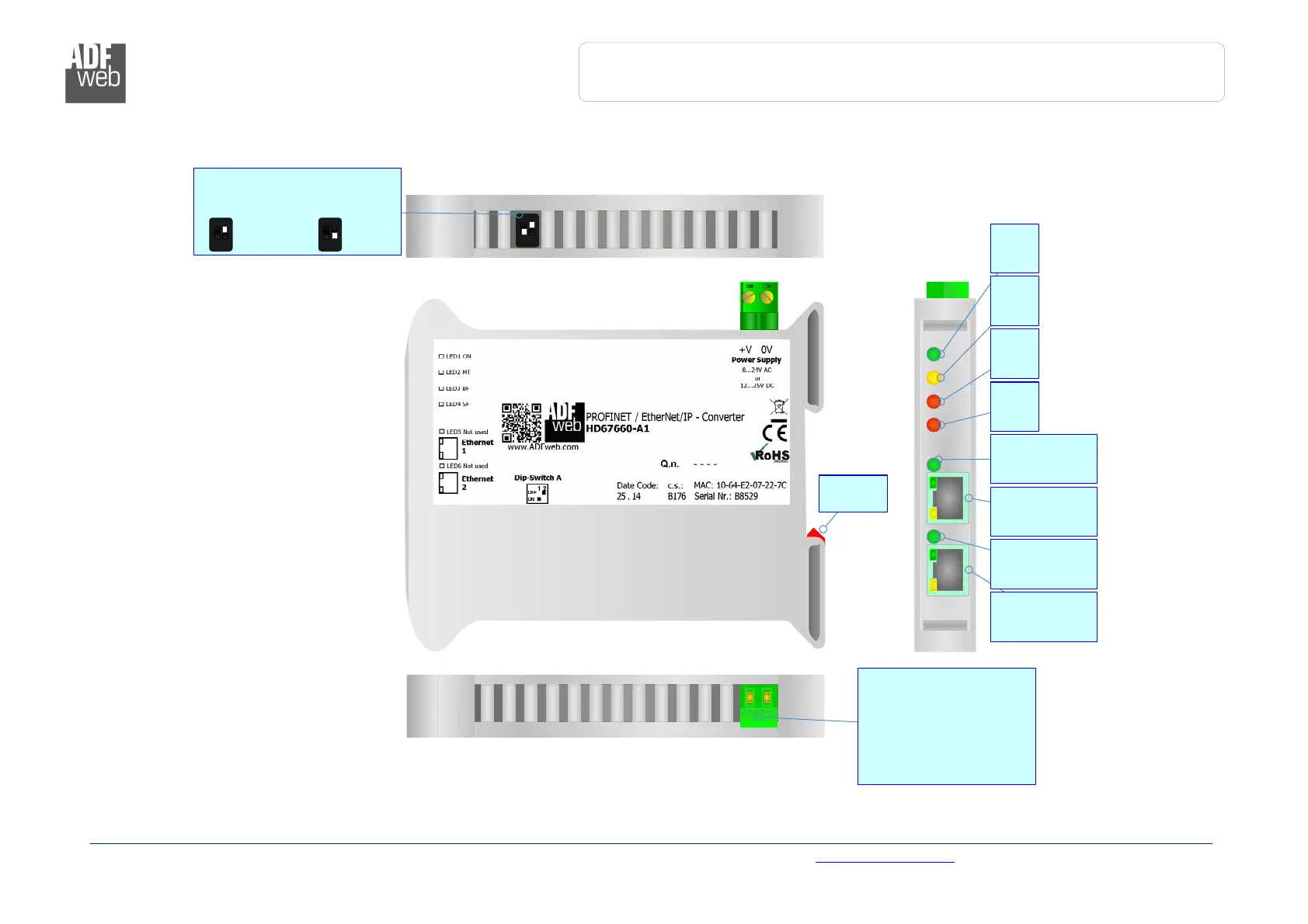

CONNECTION SCHEME:
1 2
ON
OFF
Dip-Switch A:
-Dip1 – Must be at ON
-Dip2 – Functioning Mode
= Normal = Boot
1 2
ON
OFF
1 2
ON
OFF
+V 0V
Rail DIN
Clamp
Connector1:
Power Supply port
0V = Ground
+V = Positive wire
V AC: min 8V ; max 24V
V DC: min 12V ; max 35V
Connector4:
Ethernet2 port
(RJ45 Plug)
Led6:
Green
Ethernet2 Tx
Led5:
Green
Ethernet1 Tx
Connector3:
Ethernet1 port
(RJ45 Plug)
Led1:
Green
ON
Led2:
Yellow
MT
Led3:
Red
BF
Led4:
Red
SF
Figure
1
: Con
nection scheme for HD67
660
-
A1
