Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31
Document code: MN67660_ENG Revision 1.000 Page 26 of 30

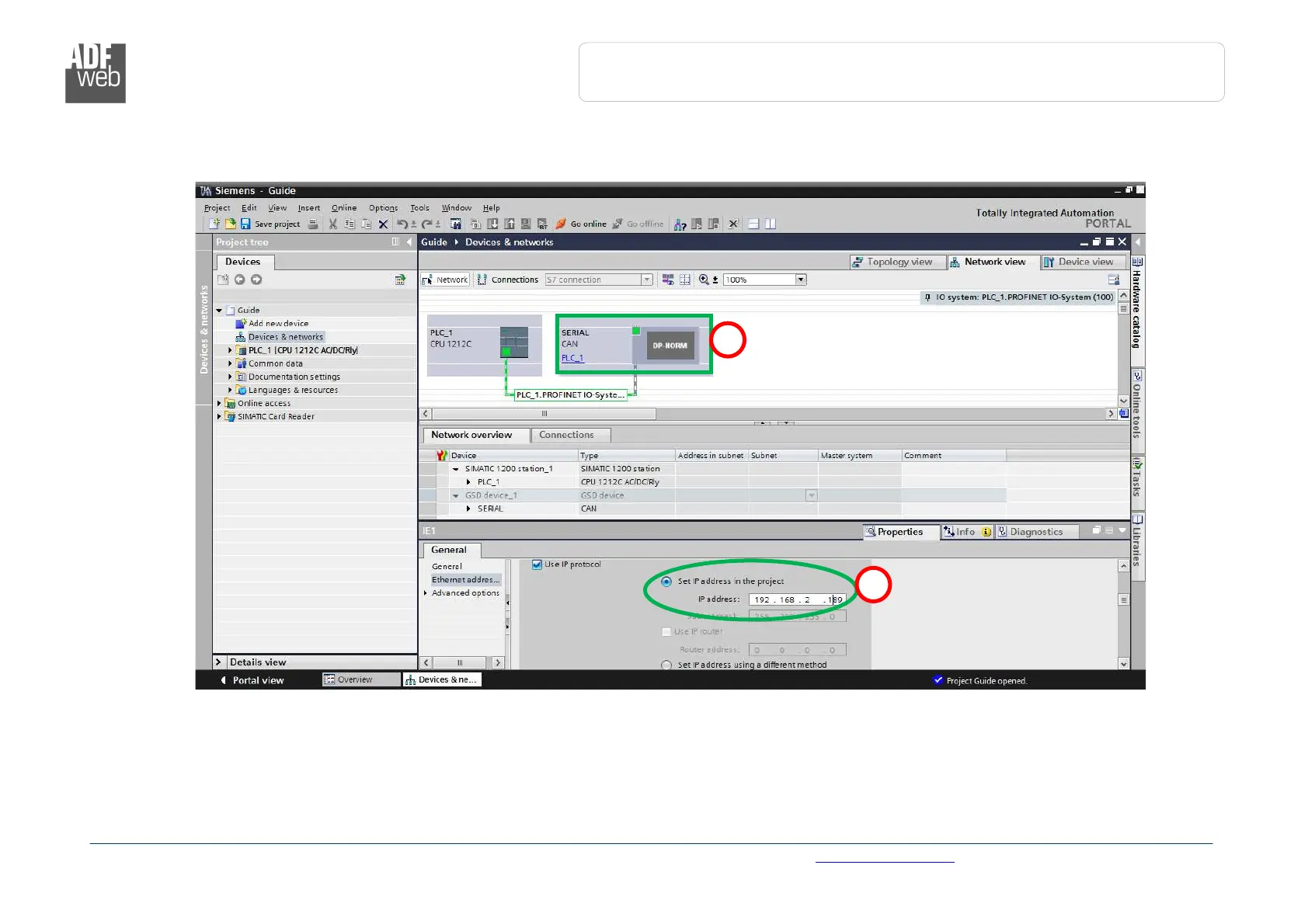

3) Connect the PLC to the HD67660 module by drawing the Ethernet wire between the two Ethernet ports. Then assign the IP Address
(1) defined in the Compositor_SW67660 to the HD67660. Then double click the “Module” (2).
