ETHERNET:

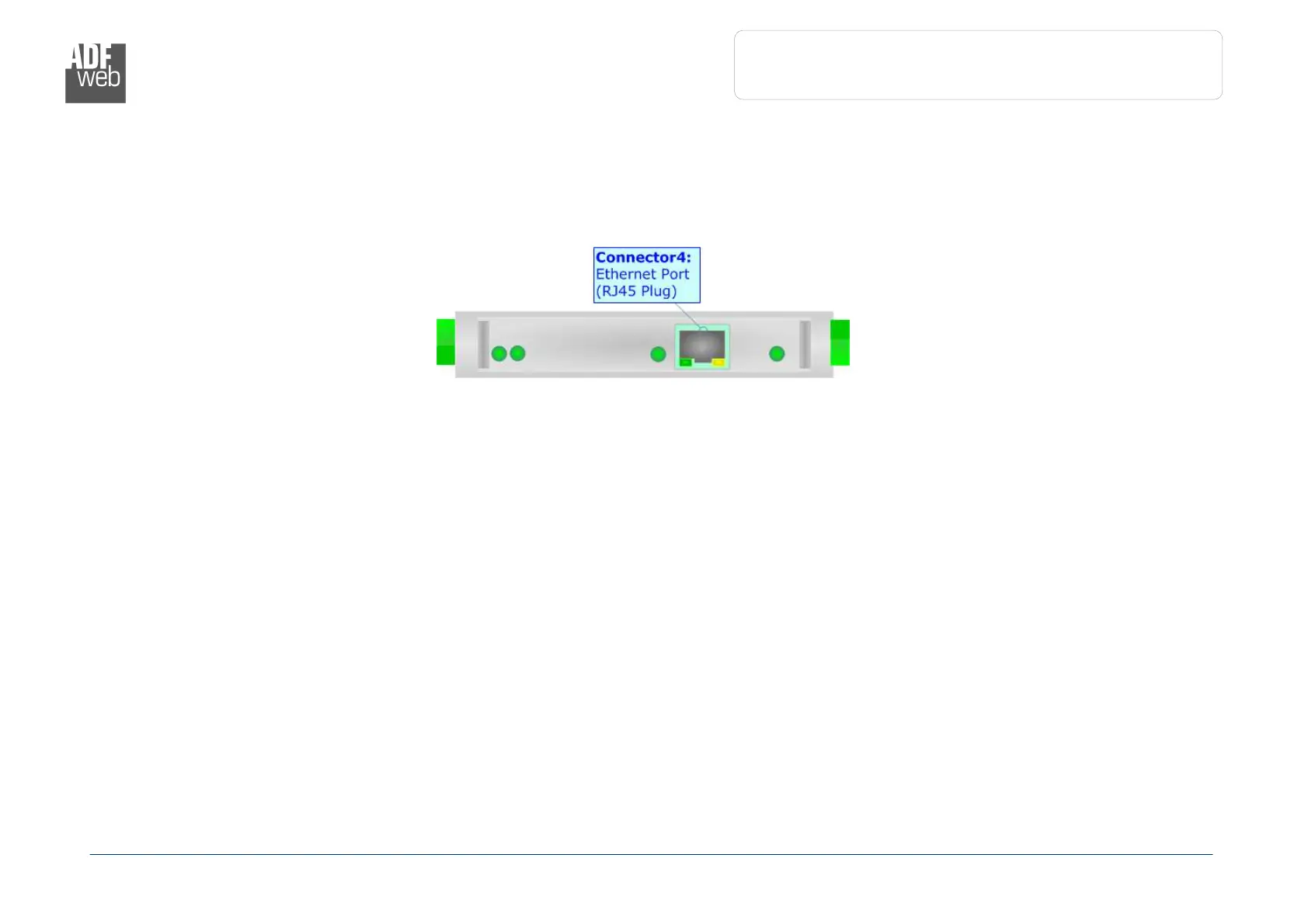

The updating of the converters and Ethernet communication must be made using Connector4 of the HD67912-A1 with at least a Category 5E
cable. The maximum length of the cable should not exceed 100m. The cable has to conform to the T568 norms relative to connections in
cat.5 up to 100 Mbps. To connect the device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a
PC/PLC/other is recommended the use of a cross cable.
