LEDS:

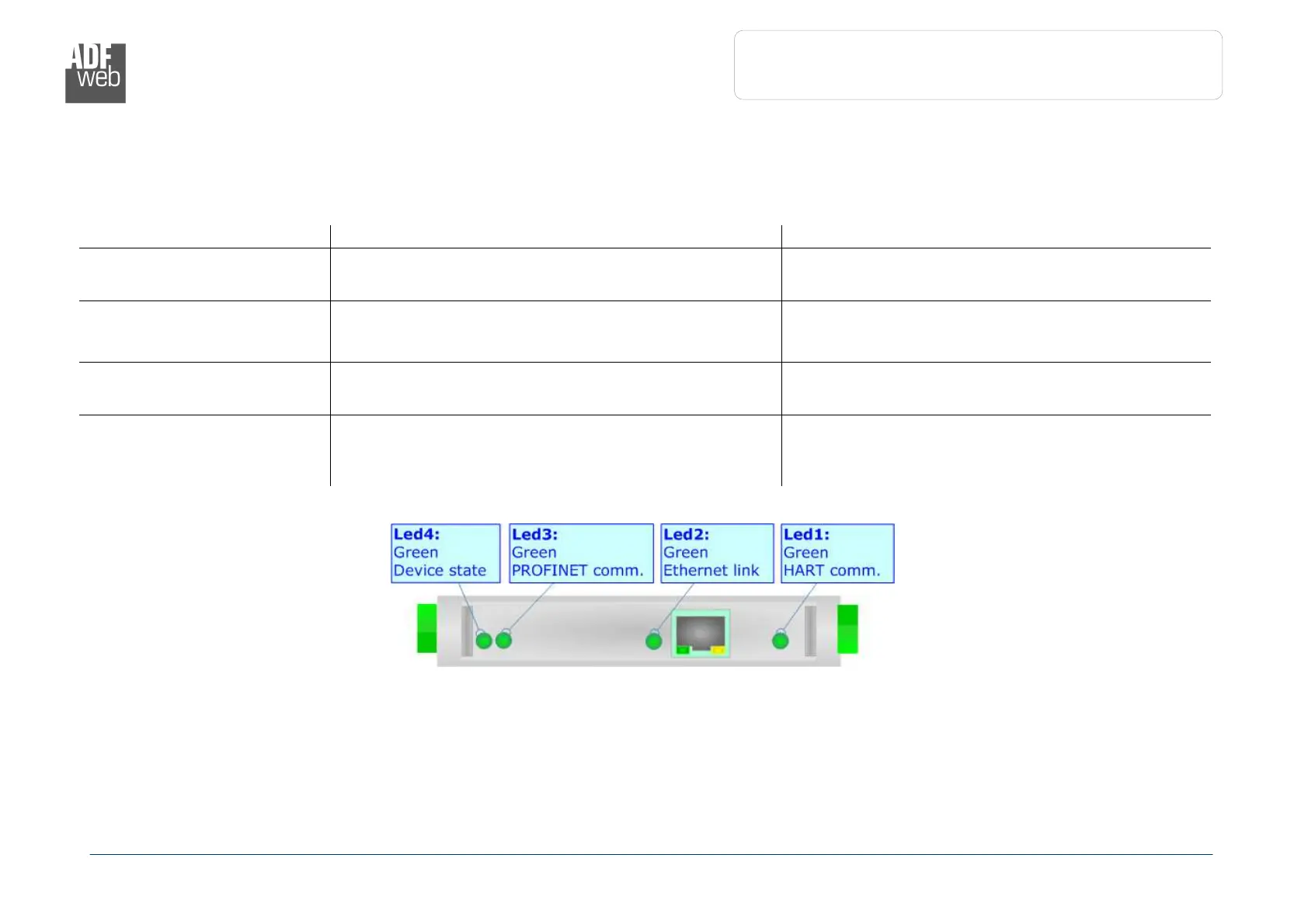

The device has got six LEDs that are used to give information about the functioning status.
The various meanings of the LEDs are described in the table below.
LED Normal Mode Boot Mode
1: HART communication
(green)
It blinks when HART communication is running
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
2: Ethernet link (green)
ON: Ethernet cable connected
OFF: Ethernet cable disconnected
ON: Ethernet cable connected
OFF: Ethernet cable disconnected
3: PROFINET communication
(green)
It blinks when PROFINET communication is running
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
4 : Device State
(green)
Blinks slowly (~1Hz)
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in
progress
