ADIMLab Gantry - Adimlab-Gantry Printer Architecture

10

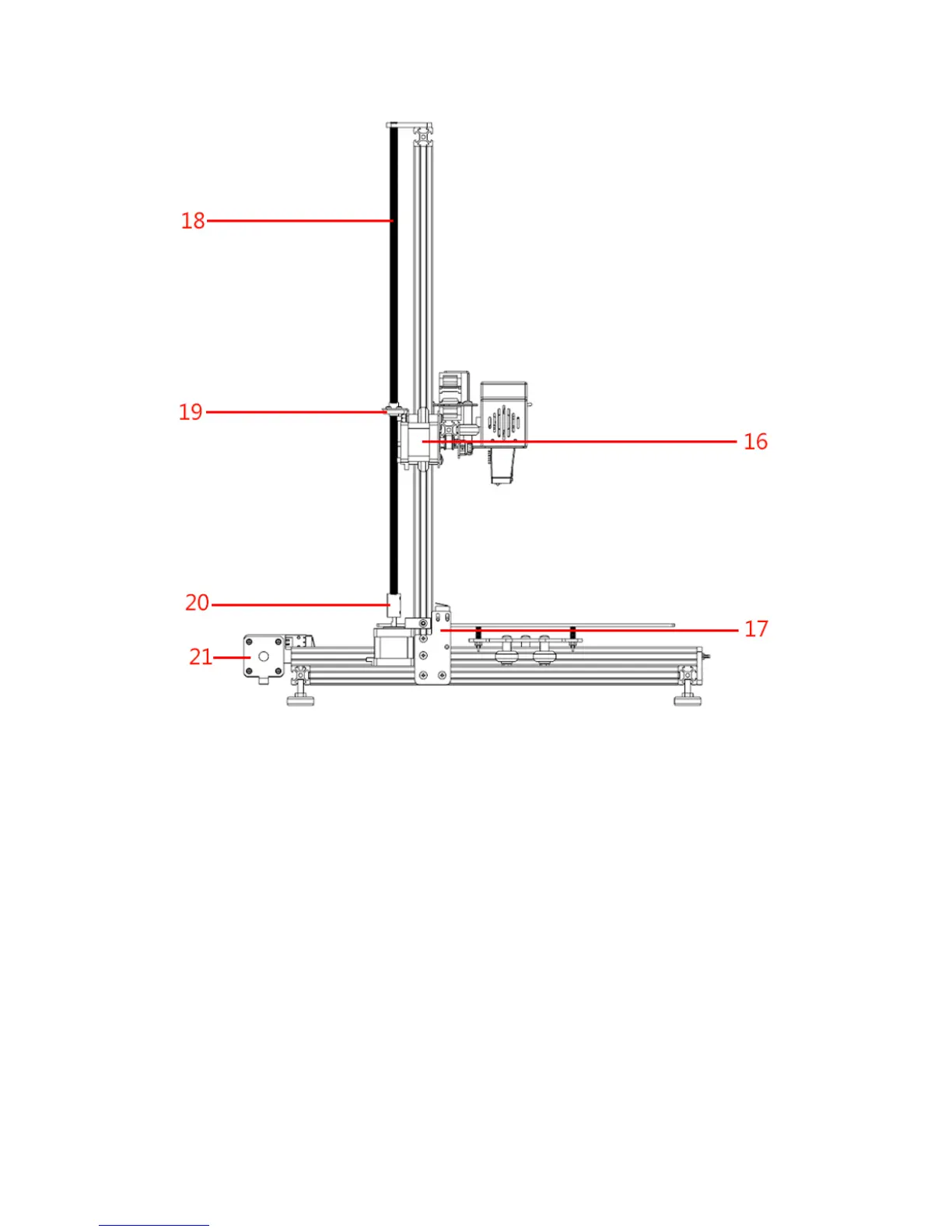

1.Frame 2.Towline 3. Extruder 4.Slideron the right side of the Z
axis 5.Nozzle 6.The print platform 7.Z-motor2 8.Foot
pad9.Slideron the left side of the Z axis 10.X-endstop 11.Cooling
fan12.Y axis the wheel stand 13.Z-endstop 14. Z-motor1 15.Y
axis pulley 16.X-motor 17.Z-endstop mounting plate 18.Z
-screw rod 19.Z axis screw 20.Coupling 21.Y-motor
