Inno Spot Pro DMX Traits
Channel Value Function
14 BLACKOUT/RESET
200 - 209 RESET ALL
210 - 255 NOTHING
Inno Spot Pro DMX Traits
Channel Value Function
7 GOBO ROTATION
0 - 127 COUNTER-CLOCKWISE INDEX 0°-360°
128 - 189 CLOCKWISE FAST - SLOW
190 - 193 STOP
194 - 255 COUNTER-CLOCKWISE SLOW - FAST
8 PRISM
0 - 7 NO EFFECT
8 - 255 PRISM EFFECT
9 PRISM ROTATION
0 - 127 COUNTER-CLOCKWISE INDEX 0°-360°
128 - 189 COUNTER-CLOCKWISE FAST - SLOW
190 - 193 STOP
194 - 255 CLOCKWISE SLOW - FAST
10 FOCUS
0 - 255 ZOOM OUT - ZOOM IN
11 SHUTTER/STROBE
0 - 7 BLACKOUT
8 - 15 SHUTTER OPEN
16 - 131 STROBING SLOW - FAST
132 - 139 SHUTTER OPEN
140 - 181 SHUTTER SLOW OPEN - FAST CLOSE
182 - 189 SHUTTER OPEN
190 - 231 SHUTTER SLOW CLOSE - FAST OPEN
232 - 239 SHUTTER OPEN
240 - 247 RANDOM STROBE
248 - 255 SHUTTER OPEN
12 0 - 255 DIMMER 0% - 100%
13 0 - 255 MOVEMENT SPEED FAST - SLOW
14 BLACKOUT/RESET
0 - 69 NOTHING
70 - 79 BLACKOUT W/ PAN/TILT MOVEMENT
80 - 89 NO BLACKOUT PAN TILT MOVEMENT
90 - 99 BLACKOUT W/ COLOR CHANGE
100 - 109 NO BLACKOUT W/ COLOR CHANGE
110 - 119 BLACKOUT W/ GOBO CHANGE
120 - 129 NO BLACKOUT W/ GOBO CHANGE
130 - 199 NOTHING

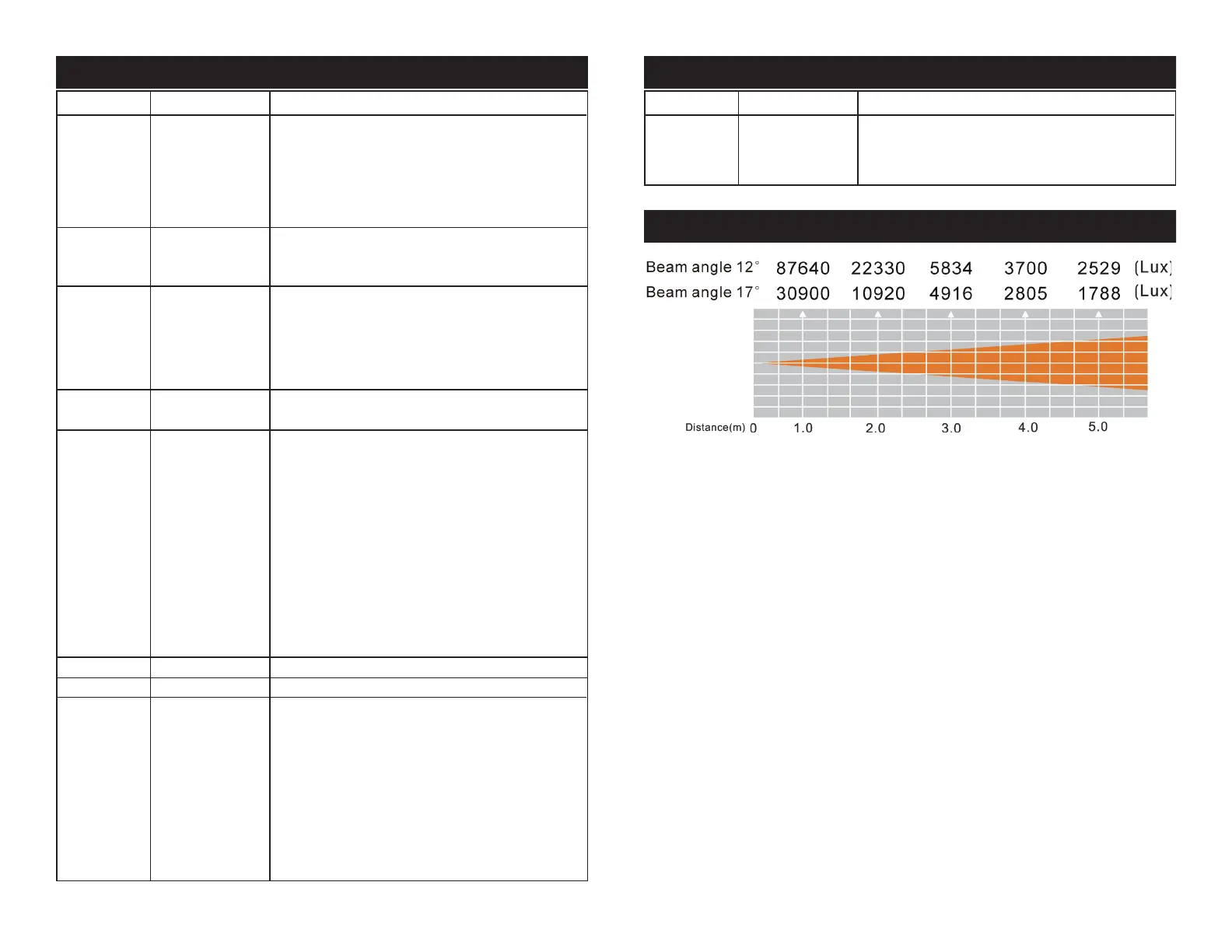

Inno Spot Pro Photometric Chart
