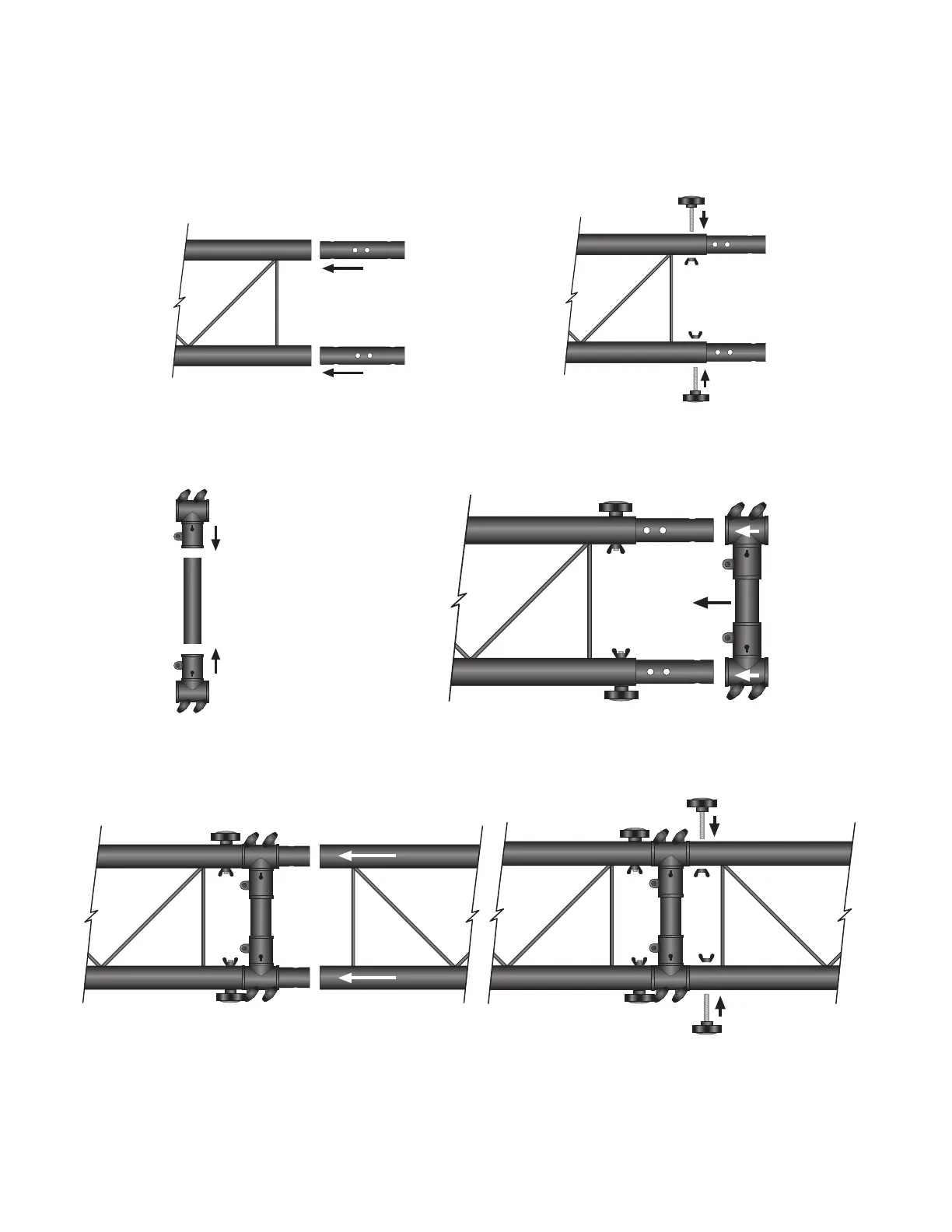

Assembling the Truss I-Beam
The stand comes with a Truss I-Beam for mounting optional lighting and other equipment. To use
the Truss, insert 2 I-beam connectors into one end of the I-Beam Support. Insert the connector
knobs through the I-Beam and fasten with the wing nuts.
Assemble the Support Rod by inserting a Slide Mount T-Collar onto each end of the Support Rod.
Slide the assembled Support Rod onto the I-Beam connectors.
Assemble the second half of the Truss I-Beam by inserting one end of the second Truss I-Bar onto
the I-Beam connectors that were installed in the previous step. Insert the connector knobs through
the I-Beam and fasten with the wing nuts.
