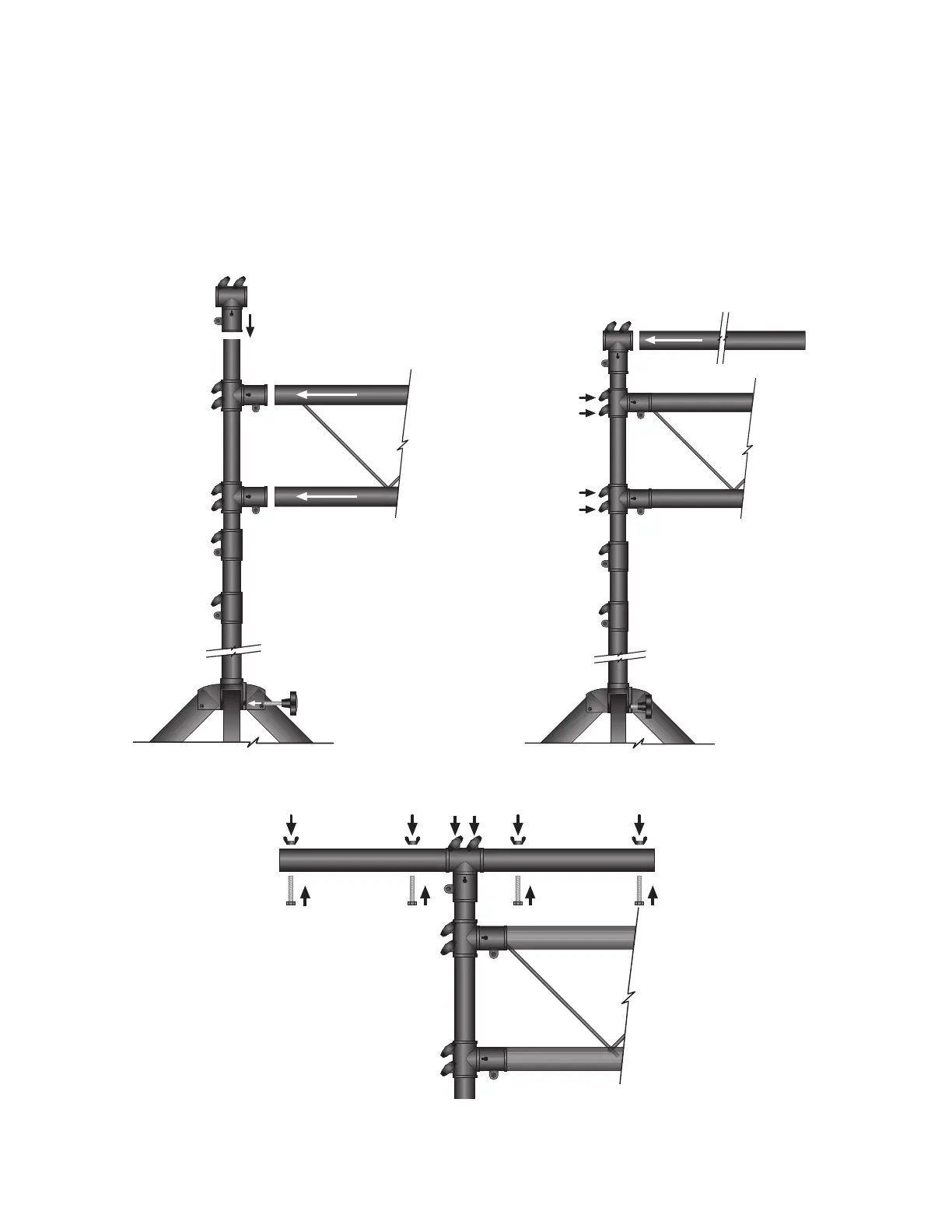

Attaching the Truss I-Beam and T-Bar
Slide two Slide Mount T-Collars onto the center post of each stand. Insert one end of the truss
assembly into the Slide Mount T-Collars and place another Slide Mount T-Collar on the very top of
each stand’s center post.
Tighten the small knobs on the Slide Mount T-Collars at each end of the truss.
Slide a T-bar into each of the top Slide Mount T-Collars on the center posts and tighten knobs to
secure.
