American DJ® - www.americandj.com - Quad Phase Instruction Manual Page 7 American DJ® - www.americandj.com - Quad Phase Instruction Manual Page 8
5-Pin XLR DMX Connectors.
Some manufactures use 5-pin XLR
connectors for DATA transmission in place of 3-pin. 5-pin XLR xtures
may be implemented in a 3-pin XLR DMX line. When inserting stan-
dard 5-pin XLR connectors in to a 3-pin line a cable adaptor must be
used, these adaptors are readily available at most electric stores. The
chart below details a proper cable conversion.
Conductor 5-Pin XLR Male (In)3-Pin XLR Female (Out)
Pin 1
Pin 5 - Do Not Use
Pin 4 - Do Not Use
Pin 3
Pin 2
Pin 1
Pin 3
Pin 2
Not Used
Not Used
Data True (+ signal)
Data Compliment (- signal)
Ground/Shield
3-Pin XLR to 5-Pin XLR Conversion

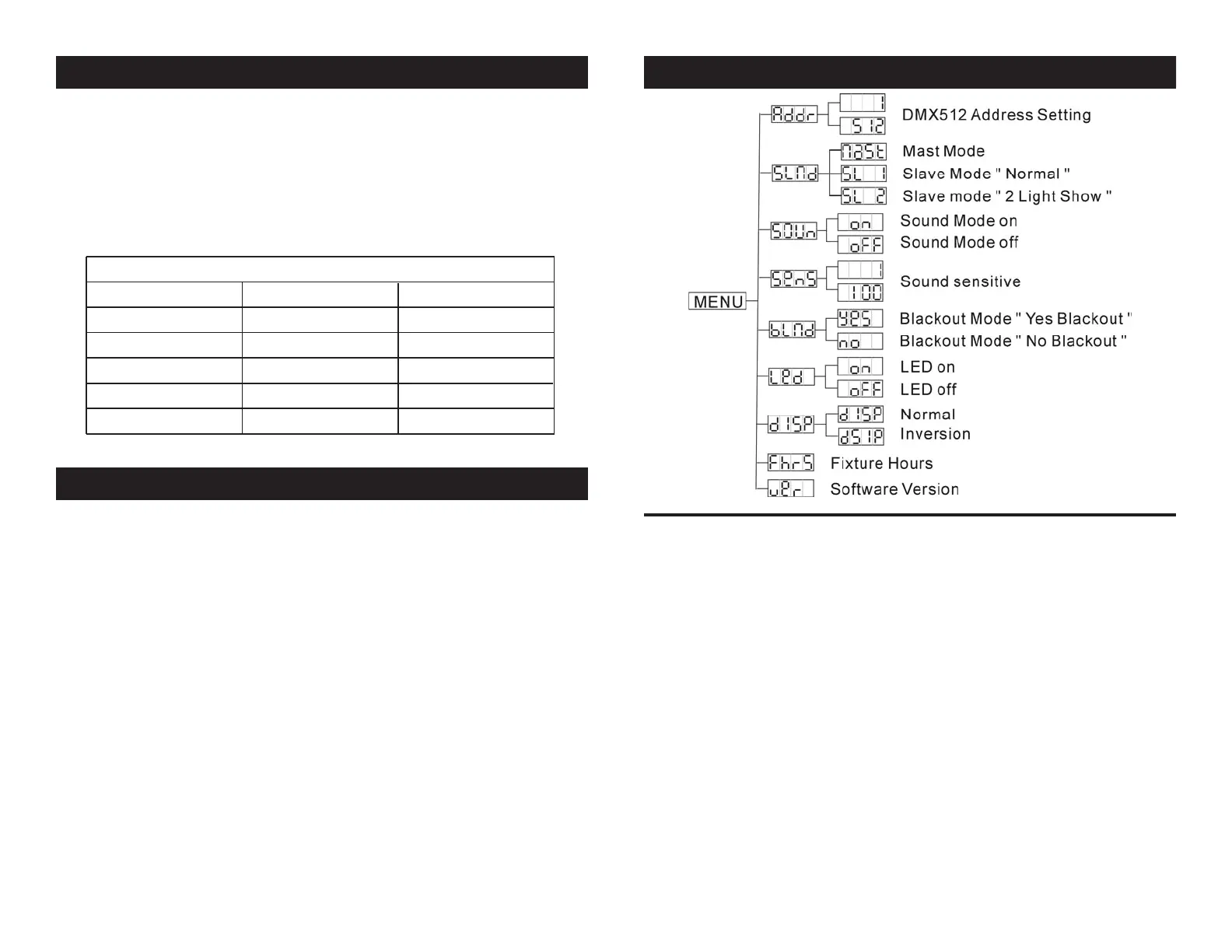

Quad Phase Set Up Quad Phase System Menu
ADDR - DMX Address Setting.
1. Tap the either the MENU, UP, or DOWN buttons until “ADDR”
is displayed, press ENTER.
2. “1” will now be displayed and ashing. Press the UP or
DOWN buttons to nd your desired address. Press ENTER to
set your desired DMX address.
SLND - This will let you set unit as a master or slave in a
master/slave conguration.
1. Tap the either the MENU button until “SLND” is displayed,
press ENTER. “MSTR”, “SL 1” or “SL 2” will be displayed.
2. Tap the UP or DOWN buttons until your desired setting is
displayed, press ENTER to conm and exit.
The unit should be mounted using a mounting clamp (not provided),
axing it to the mounting bracket that is provided with the unit.
Always ensure that the unit is rmly xed to avoid vibration and slip-
ping while operating. Always ensure that the structure to which you
are attaching the unit is secure and is able to support a weight of 10
times the unit’s weight. Also, always use a safety cable that can hold
12 times the weight of the unit when installing the xture.
The equipment must be installed by a professional, and it must be
installed in a place where it is out of the reach of people’s grasp.
Quad Phase Installation
