4.3.2 Wall mounting
1. Provide for screws on the relative device mounting wall so that they are set horizontally level, with a
distance between screws amounting to 170mm.

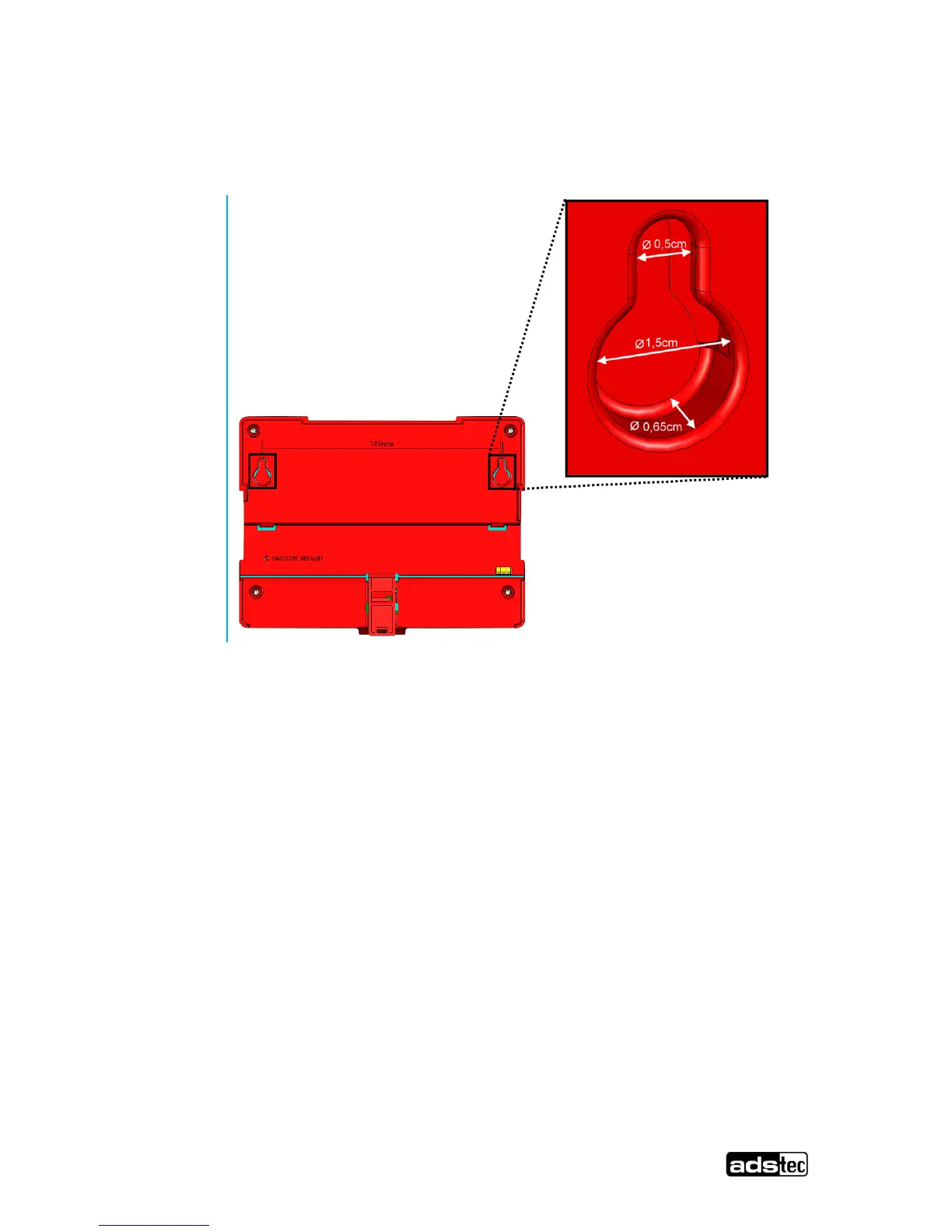

2. Attach on the Firewall by way of the appropriate cavities as illustrated.
Abb.
4
:
To release the unit from the DIN rail, proceed in reverse order.
