ADS-tec IF1100 - Cut & Alarm; Power Supply LAN-In (RJ45); Poe (IEEE 802.AF); LWL Fibre Optic

IF1000 series 34
© ads-tec GmbH • Heinrich-Hertz-Str. 1 • D-72622 Nürtingen

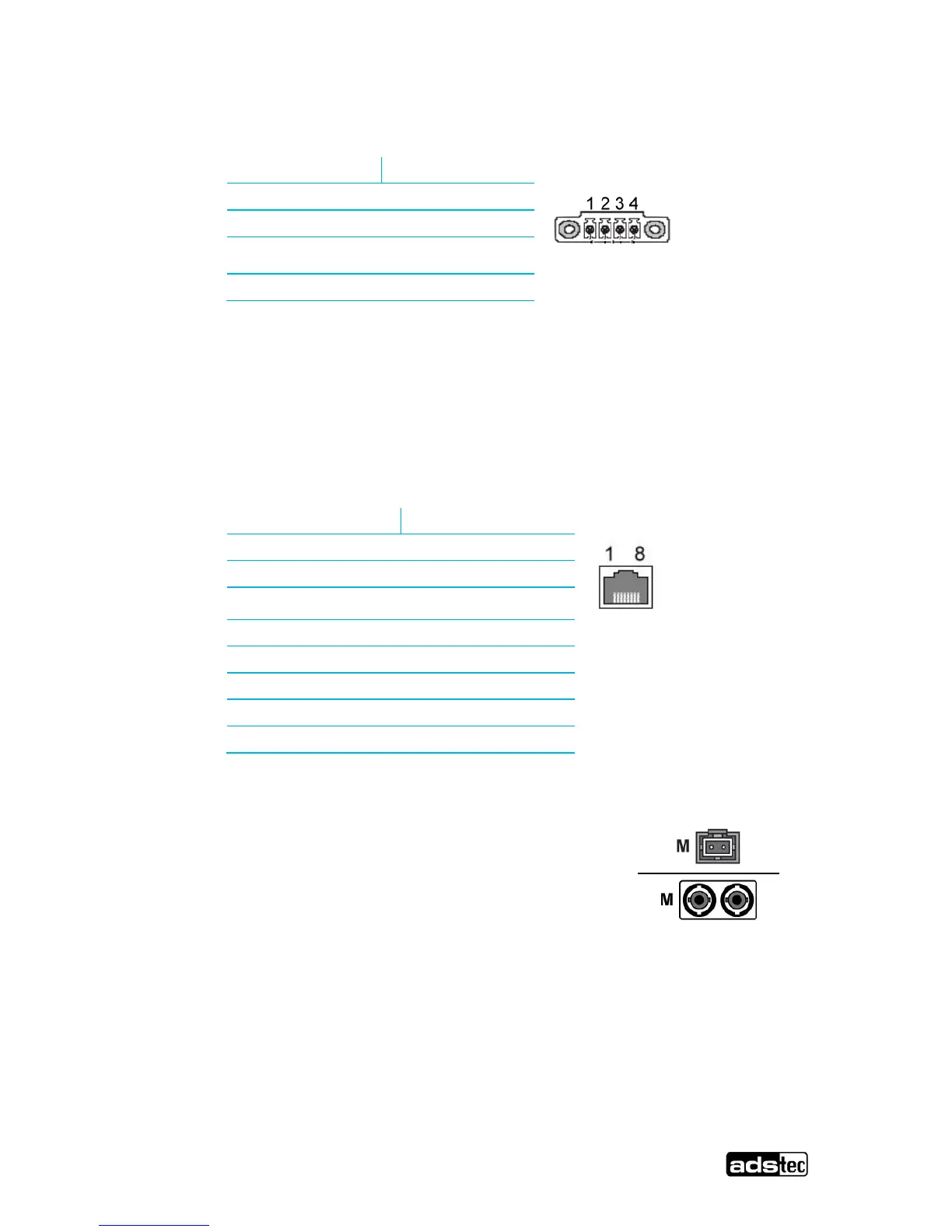

5.7.2 CUT & ALARM
Pin-Number
Signal-Name
1
TX +
2
TX -
3
RX +
4
NC
PIN 1: = L+ 24V DC feed-in of the alarm output voltage
PIN 2: = GND Ground feed-in of the alarm output voltage
PIN 3: = CUT 24V DC feed-in of an external switching signal (galvanically isolated)
PIN 4: = AL 24V DC ALARM output (galvanically isolated) alarm out put for signalling to external
users
5.7.3 Power Supply LAN-in (RJ45) / PoE (IEEE 802.AF)
Pin-Number
Signal-Name
1
TX +
2
TX -
3
RX +
4
PoE/G
5
PoE/G
6
RX -
7
PoE/-48V
8
PoE/-48V
5.7.4 LWL Fibre Optic
An MTRJ fibre optic plug is implemented for the LWL fibre optic
connection.62.5/125µm multimode cable from the MTRJ plug to the
Duplex plug.
