ADS-tec IF1100 - Serial Interface COM (RS232); Smartcard Reader nach Iso 7816

IF1000 series 35
© ads-tec GmbH • Heinrich-Hertz-Str. 1 • D-72622 Nürtingen

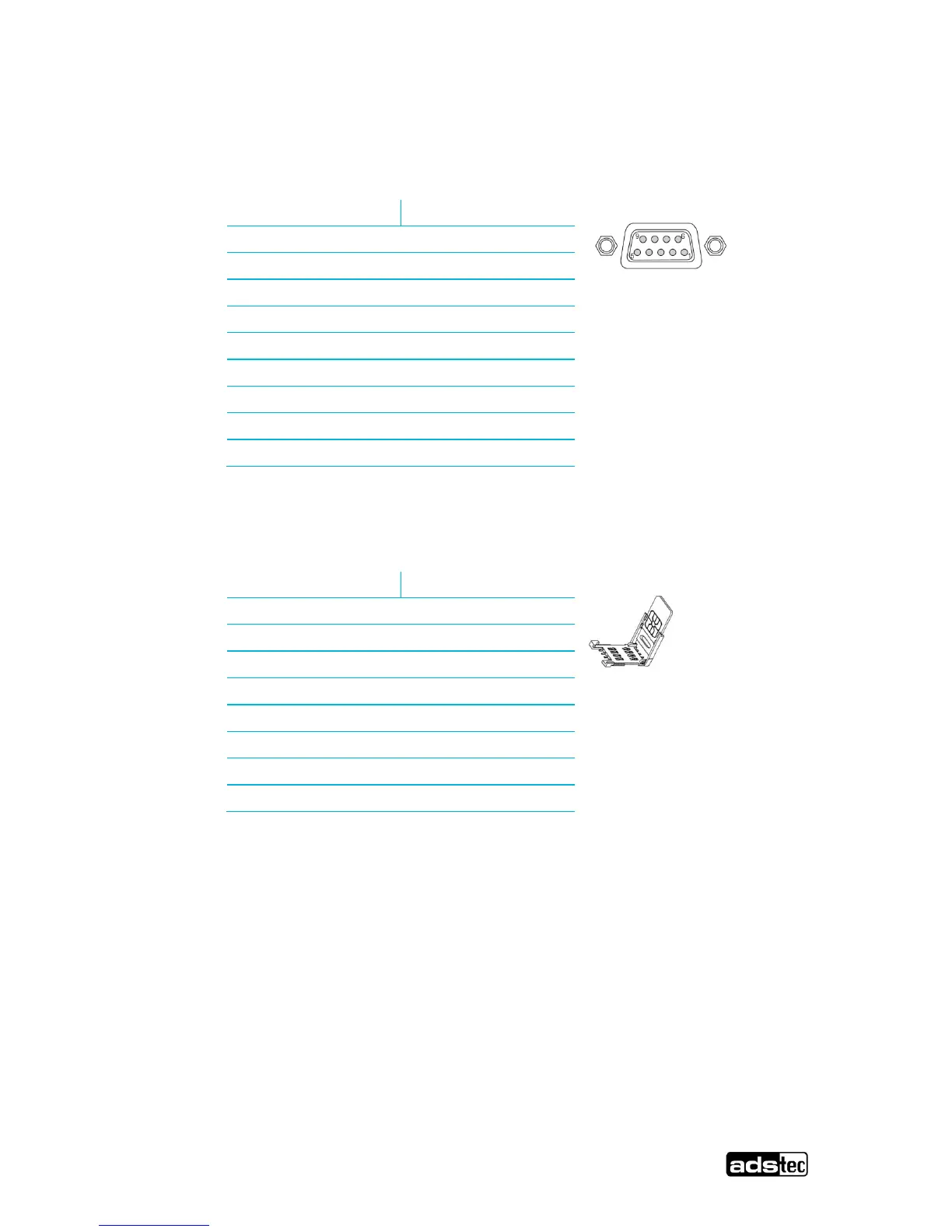

5.7.5 Serial Interface COM (RS232)
9 pole SUB-D connector
RS232 for connection of an analogue, ISDN or GPRS standard modem unit
Pin-Number
Signal-Name
1
DCD
2
RxD
3
TxD
4
DTR
5
GND
6
DSR
7
RTS
8
CTS
9
RI
5.7.6 SMARTCARD READER NACH ISO 7816
The SIM card reader serves for the storage of the configuration data.
Pin-Number
Signal-Name
1
VCC 5 Volt
2
RESET
3
CLOCK
4
NC
5
GND
6
NC
7
I/O
8
NC
