Channels 3-8 can be accessed through the din 3-8 connector by using the optional AC202 RCA
to DIN adapter for P850.2 only.

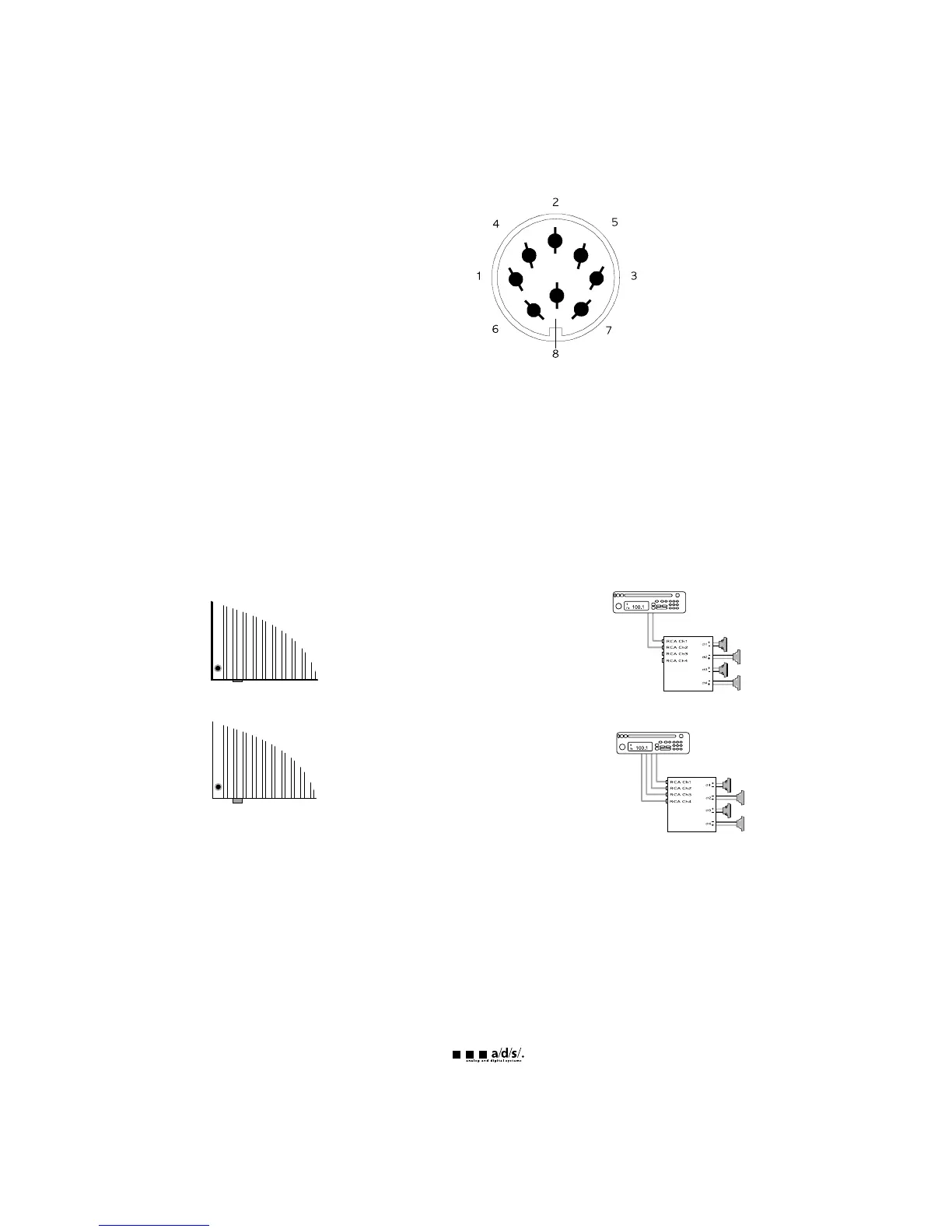

DIN ch 3-8 connections:
pin 1 ch 6
pin 2 audio signal ground
pin 3 ch 4
pin 4 ch 5
pin 5 ch 3
pin 6 ch 8
pin 7 ch 7
pin 8 remote power control
AC202 RCA audio inputs are color-coded as follows:
white ch 3 & 4 input
blue ch 5 & 6 input
yellow ch 7 & 8 input
Note: ch 1/2 input not available through the DIN.
internal signal routing
2-channel/4-channel input switch - routes RCA input from channels 1/2 to channels 3/4.
When the switch is engaged, channel 1 input is
routed to both amplifier channels 1 and 3 with input
channel 2 routed to amplifier channels 2 and 4.
Switch in the engaged position.
When the switch is disengaged, channels 1, 2, 3,
and 4 receive signal individually from their
respective inputs.
Switch in the disengaged position.
