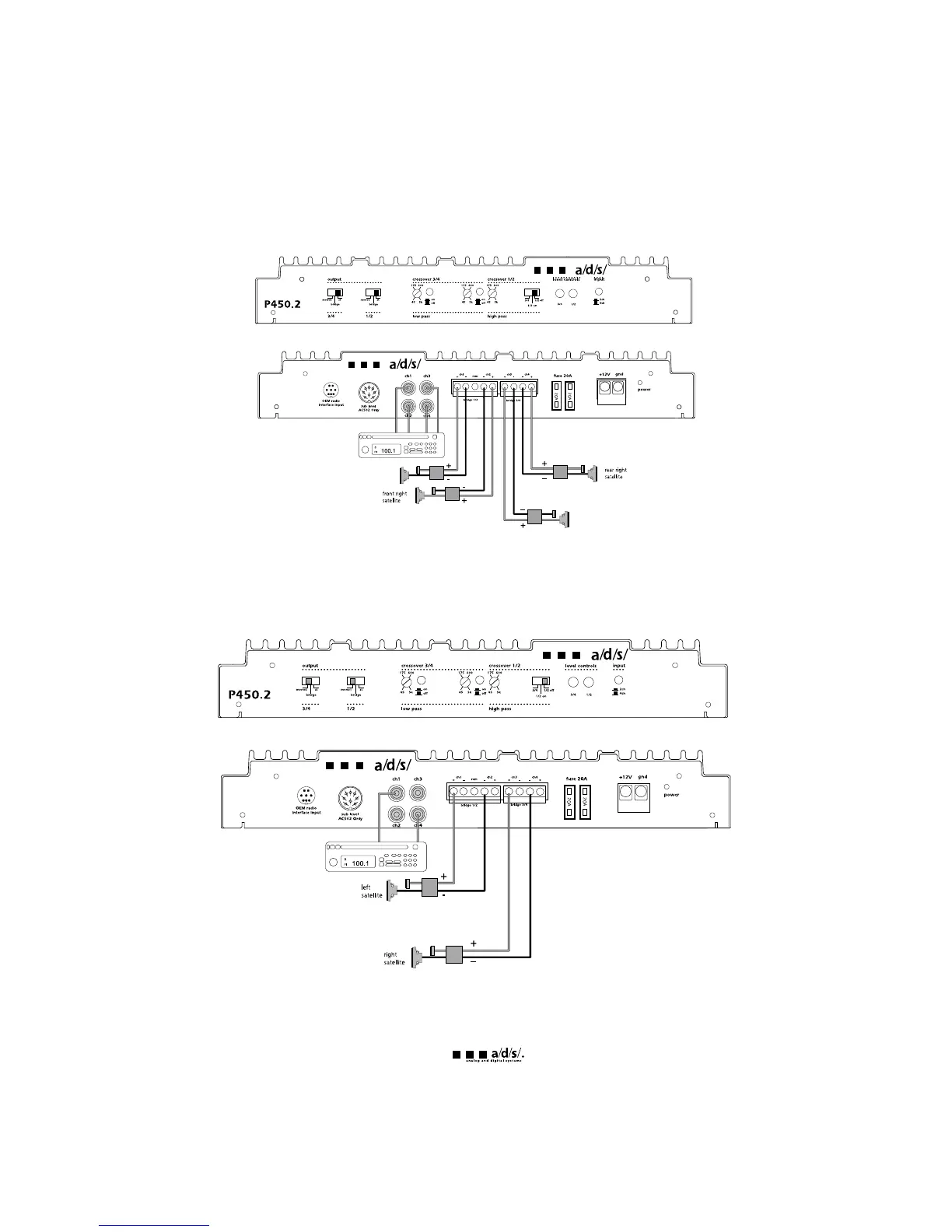

P450.2 system diagrams
System 1 - P450.2 used in 4-channel mode with front and rear full range speakers.
System 2 - P450.2 used in 2-channel bridged mode with full range speakers.
5
rear left
satellite
front left
satellite
