P650.2 system diagrams

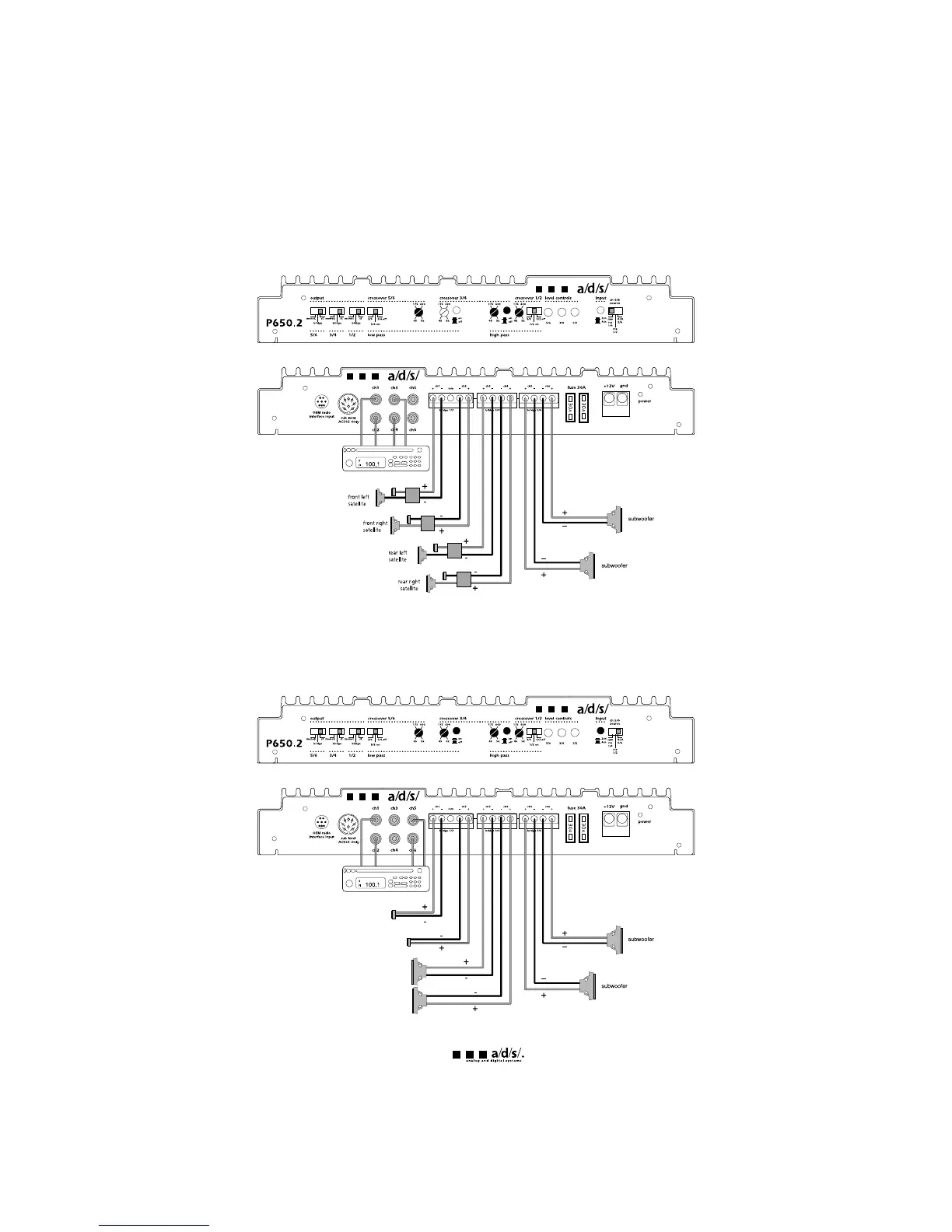

System 1 - P650.2 used in 6-channel mode. Channels 1/2 are high-passed for front speakers. Channels
3/4 are high-passed for rear speakers. Channels 5/6 are low-passed for subwoofers. Although shown
with 4-channels of input, the source unit can be either 2- or 4-channel.
System 2 - P650.2 used in 6-channel mode. Channels 1/2 are high-passed for tweeters. Channels 3/4 are
high-passed for midrange speakers, and channels 5/6 are low-passed for subwoofers.
