Vacuum Gauge and Operation
Vacuum Level Indicator
Vacuum Level Indicator

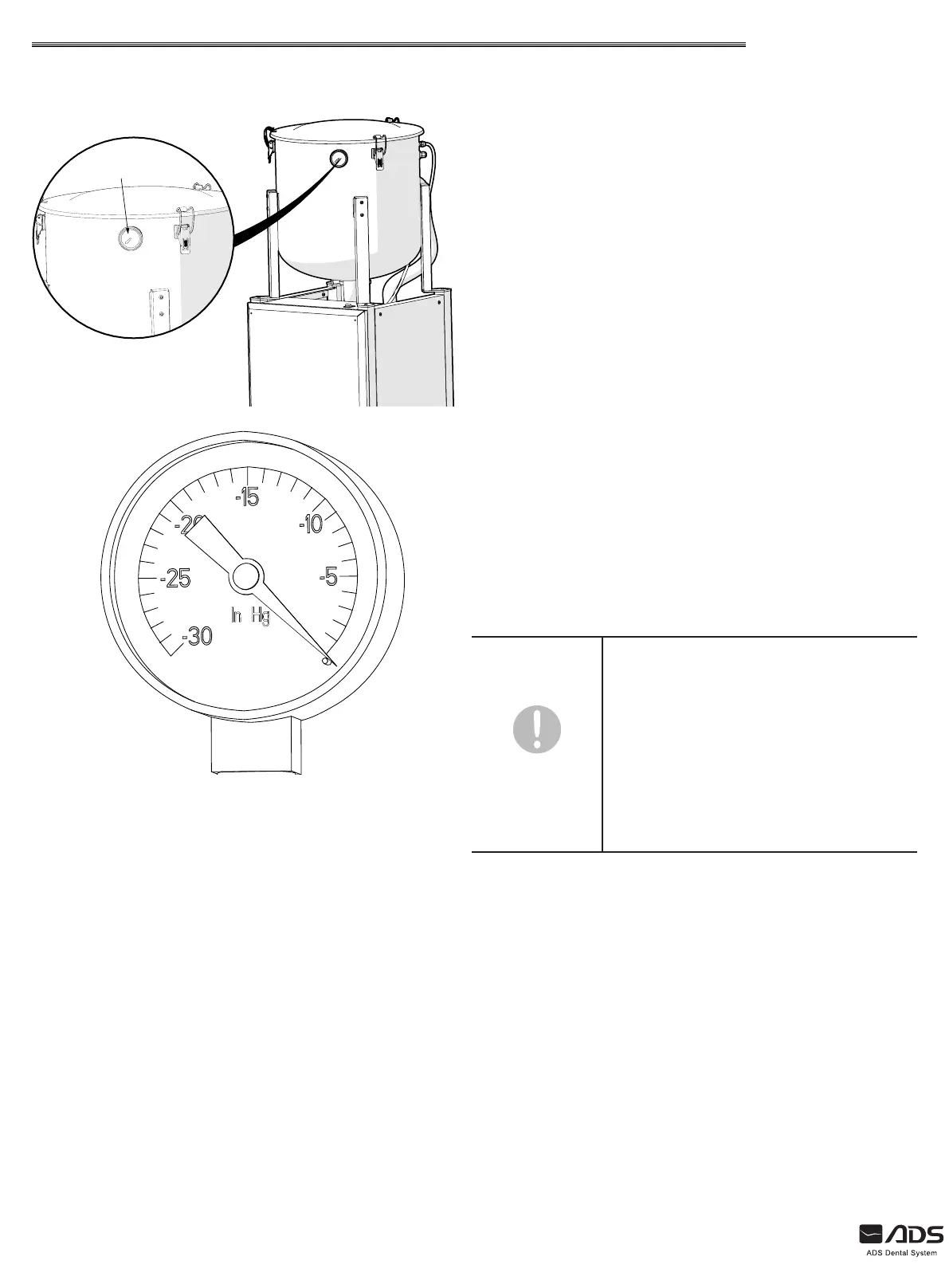

An analog vacuum gauge on the control panel displays real-
time suction pressure levels inside the collection tank. During
standard operation, the ADS dental vacuum system maintains
regulated pressure around 6 inHg (34 kPa). This factory-
calibrated vacuum gauge allows dental sta to monitor system
performance and ensures sucient suction is provided for
clinical procedures.
Contact your authorized dealer if pressure readings fall
outside the expected range, as this may indicate a need for
maintenance or servicing. Regularly verifying proper vacuum
levels helps maximize eciency and lifespan of the equipment.
Vacuum Startup and Regular
Operation
Upon initial power-up, the vacuum motor will run continuously
until the system has reached the factory pre-set vacuum level
of 7.5 inHg (25 kPa). Once this preset level is achieved, the
motor rpm will automatically uctuate to maintain this vacuum
level as instruments are opened and closed during normal
operation.
NOTE
You may hear the vacuum motor
frequently speeding up or slowing down
as it compensates for varying levels
of demand. This is normal operation.
However, if the motor does not slow down
after all vacuum instruments are closed, or
if your system is unable to maintain about
7.5 inHg (25 kPa), refer to "Troubleshooting"
section, or contact your authorized ADS
dealer for service.
