ADT
-CNC46XX
系列维护手册
- 80 -

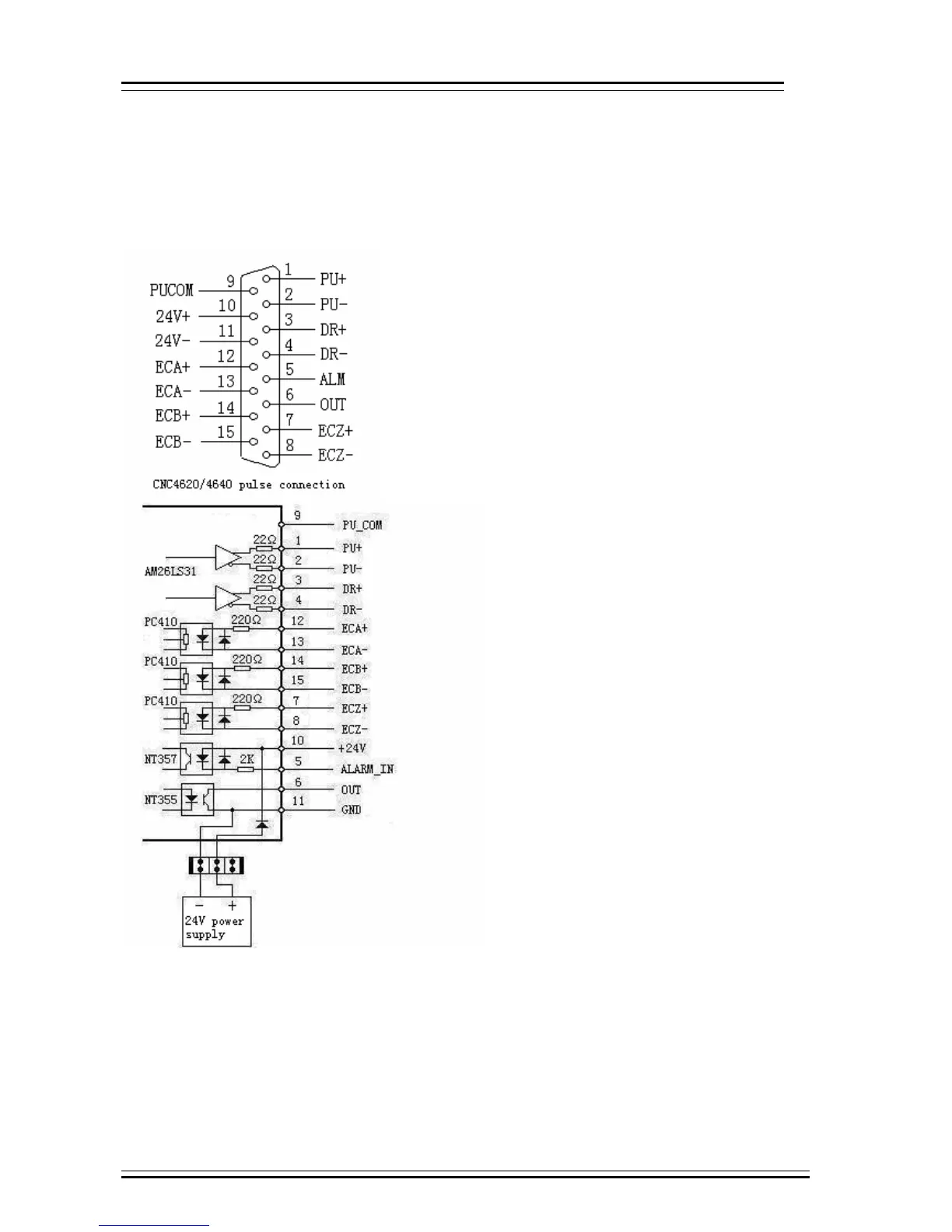

12.2 Interface definition
12.2.1 Motor drive control interface (XS1..XS4)
Four drive interfaces are available
(XS1 X axis, XS2 Y
axis, XS3 Z axis
, XS4 A
axis),
and they have the
same definitio
n, as shown below:
Simple Internal Circuit
Diagram for Pulse Output
83
85
Table of Contents
Foreword
7
System Function
9
Operating Panel
10
LCD Brightness Adjustment
11
System Menus
12
Operating Keys
15
Manual Operation
16
Continuous Feeding Manually
17
Manual Auxiliary Function Operation
18
Tool Setting
19
Tool Regulator (M Series)
20
Tool Setting by Test Cutting (L Series)
21
Automatic Operation
22
Run Idle
23
Safe Operation
24
Alarm and Self- Diagnosis Function
25
System Environment Alarm
26
Alarm Processing
27
Self-Diagnosis Function
28
Program Saving & Editing
29
Deleting Files
30
Main Interfaces of the System
31
Edit Interface
33
MDI Interface
34
File Management
35
Parameter Interface
36
Compensation Interface
39
M Series Workpiece Coordinate System Setting Interface
40
Controller Diagnosis Interface (Diagnosis)
43
Current Mode Instruction Info
44
System Maintenance
45
System Parameters
46
Comprehensive Parameters (P1.)
56
Axis Parameter Configuration (P2.)
66
Management Parameters (P3.)
73
Tool Magazine Parameters (P4.)
76
Principal Axis Parameters (P5.)
77
Port Configuration (P6.)
78
Hardware Interface Definition and Connection Instructions
80
Mounting Dimensions
81
Installation Precautions
82
Interface Definition
84
Digital Input Interface (XS5)
87
Digital Output Interface (XS6)
90
Handheld Box Interface (XS7)
93
Analog Output Interface (XS8)
94
Principal Axis Encoder Interface (XS12)
95
RS232 Transmission Interface (XS9)
97
Electrical Connection Diagram
98
Power Connection Diagram
99
Servo Drive Connection Diagram
100
Step Connection Diagram
101
IO Electrical Connection Diagram
102
