Adtech ADT-CNC4640 User Manual

Adtech CNC Technology Co., Ltd. 12. Hardware interface definition and connection instructions
- 83 -
12.2.2 Digital input interface (XS5)
The digital input interface contains the hard limit signal of every axis, and the definition follows:

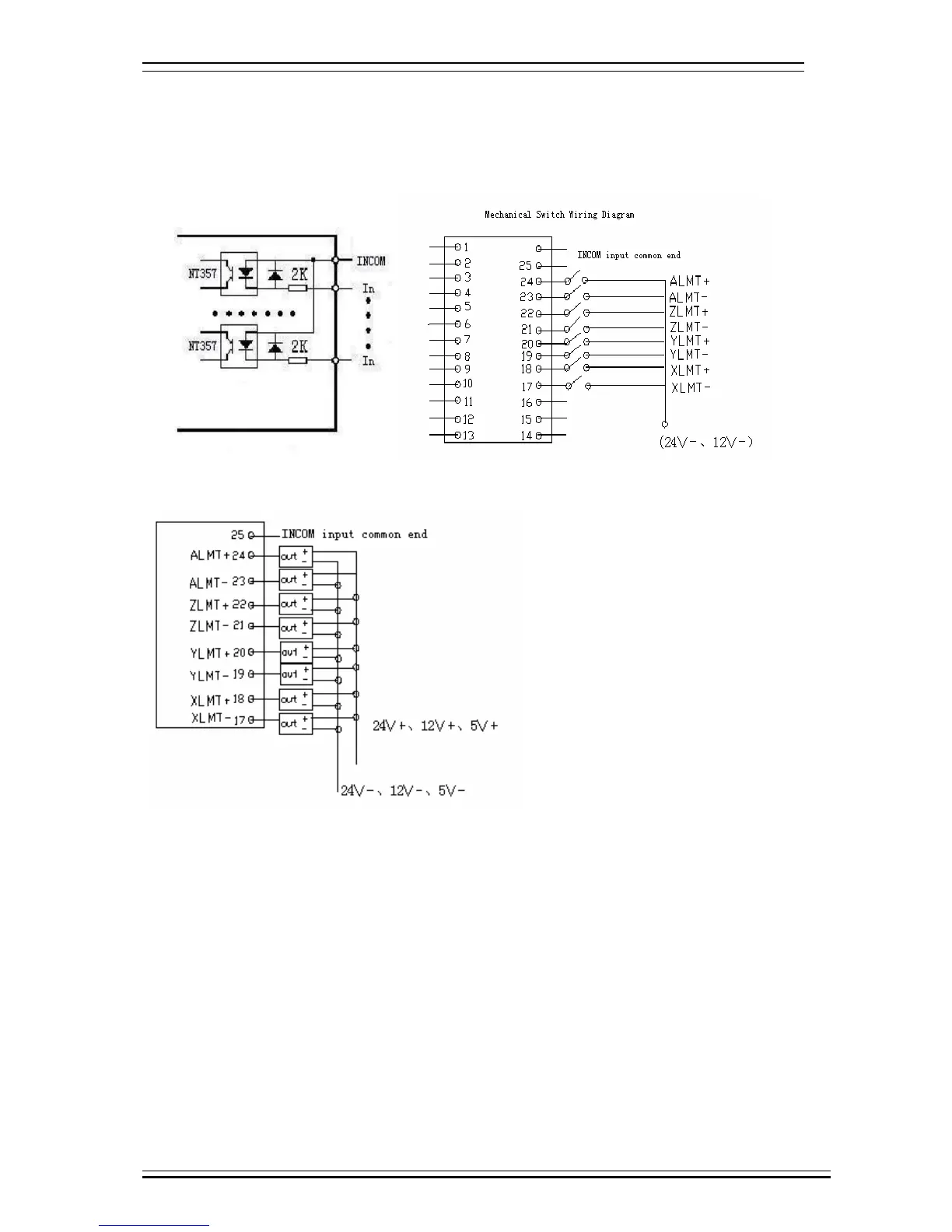

Simple Internal Output Diagram for Digital Input Photoelectric Switch Wiring Diagram
+ is the anode of approach switch, - is the earth wire, and OUT is output signal. For common approach switch, please select
10-30V power supply and NPN output. Photoelectric switch is similar.
