NetVanta 3000 Series Hardware Installation Guide Option Modules
61200860L1-34L Copyright © 2006 ADTRAN, Inc. 47
Network Interface Modules
NetVanta 56K/64K NIM (P/N 1200861L1)
The 56K/64K NIM (shown in Figure 16) provides a DDS WAN interface for the NetVanta 3000 Series.
This module provides a single 56K or 64K DDS network interface. See Table A-6 on page 77 for the
WAN-DDS connector pinouts, and see Table A-14 on page 80 for the DBU connector pinouts. An optional
DIM is required for dial backup applications.

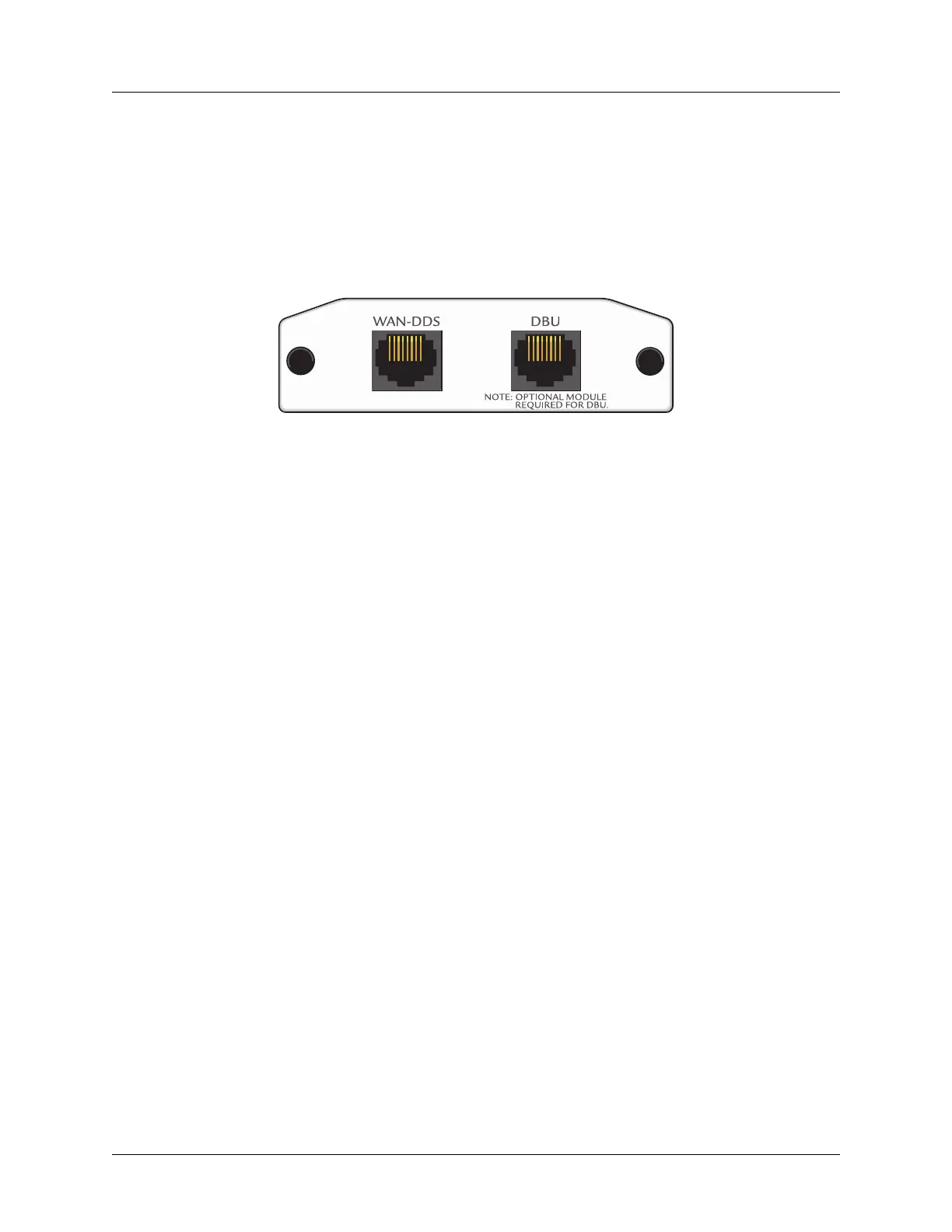

Figure 16. NetVanta 56K/64K NIM
Features and Specifications
Operating Modes
• Dedicated DDS (leased line)
DDS Interface
• Supported Standards: AT&T TR 62310
• 4-wire, full-duplex
• Receiver Sensitivity: -45 dB, all rates
• Data Rates: 56K, 64K, and auto
• Connector: RJ-48C
Clock Source
•Network
•Internal
Diagnostics
• CSU and DSU Loopbacks
Compliance
• EMC - see Electromagnetic Compatibility
(EMC) Table on page 7.
• ACTA/FCC Part 68
• IC CS-03
• UL/CUL 60950
Environmental
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -20°C to 70°C
• Relative Humidity: Up to 95 percent,
noncondensing
Physical
• Dimensions: 2.75-inch W x 4.25-inch D
