Option Modules NetVanta 3000 Series Hardware Installation Guide
56 Copyright © 2006 ADTRAN, Inc. 61200860L1-34L
NetVanta ADSL NIM, Annex A (P/N 1200869E1/L1)
The NetVanta ADSL NIM, Annex A, (see Figure 25) adds ADSL capability to the NetVanta 3000 Series.
The module provides a single ADSL, ADSL2, or ADSL2+ network interface to support rates up to
25 Mbps. See Table A-12 on page 79 for the pinouts. The ADSL NIM supports an optional DIM for dial
backup applications. See Table A-14 on page 80 for the DBU connector pinouts.

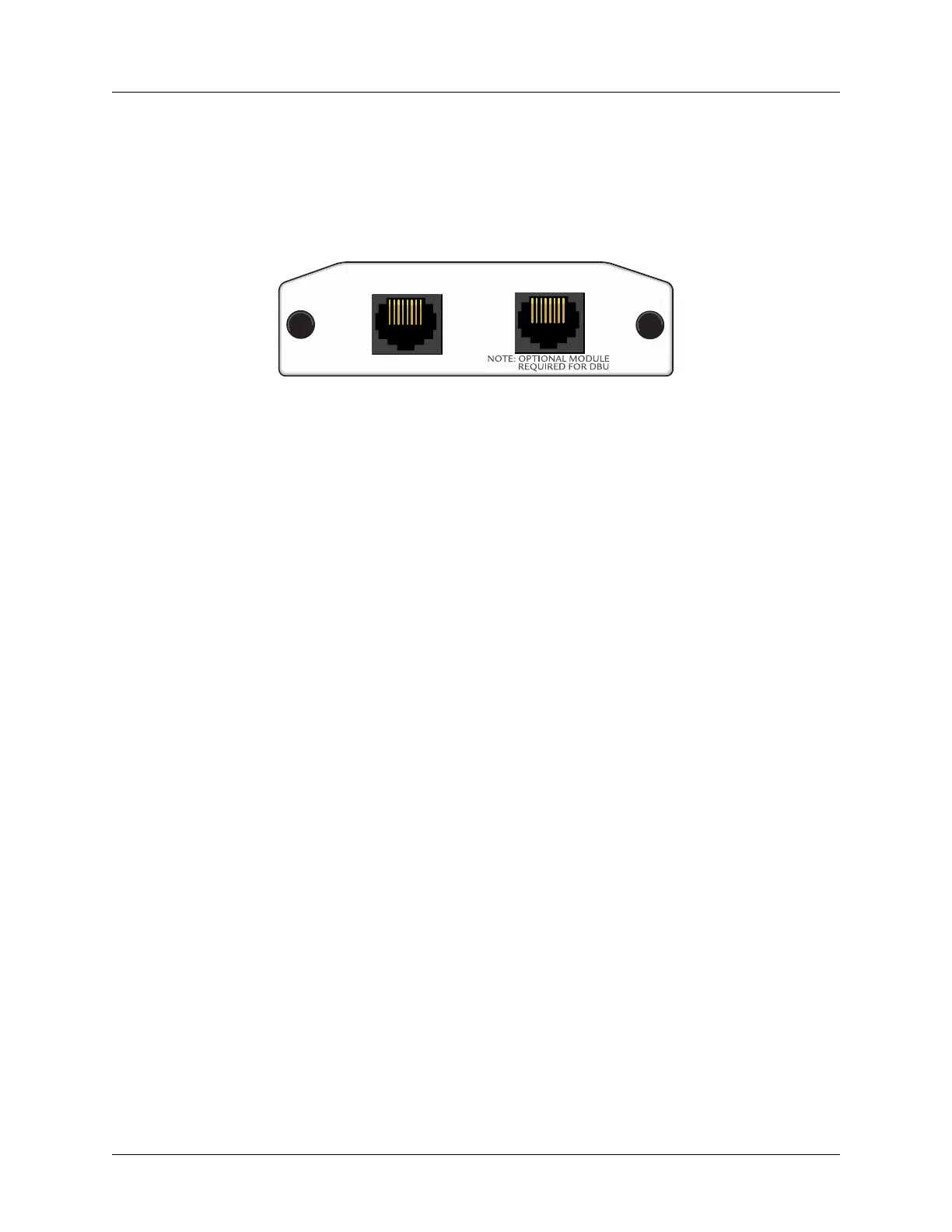

Figure 25. NetVanta ADSL NIM, Annex A
WAN-ADSL
DBU
Features and Specifications
ADSL Interface
• ADSL over POTS, Annex A
• Supported Standards:
– ITU G.992.1 (G.dmt)
– ITU G.992.2 (G.lite)
– ITU G.992.3 ADSL2 (G.dmt.bis)
– ITU G.992.5 ADSL2+
– ANSI T1.413 Issue 2
– Reach Extended ADSL (READSL2)
• Connector: RJ-1C (6-pin jack, inner pair)
ATM
• Multiple Protocol over AAL5 (RFC2684)
• PPP over ATM (RFC2364)
• PPP over Ethernet (RFC2516)
• ATM Forum UNI 3.1/4.0 PVC
• ATM Class of Service (UBR)
• ATM F5 OAM
• Up to 16 Virtual Circuits
Compliance
• EMC - see Electromagnetic
Compatibility (EMC) Table on page 7
• ACTA/FCC Part 68
• AS/ACIF S043
• AS/ACIF S002
• IC CS-03
• EN 60950
• IEC 60950
• UL/CUL 60950
• AS/NZS 60950
• RoHS compliant (1200869E1 only)
(Telecommunications exemption)
Environmental
• Operating temperature: 0°C to 50°C
• Storage Temperature: -20°C to 70°C
• Relative Humidity: Up to 95 percent,
noncondensing
Physical
• Dimensions: 2.75-inch W x 4.25-inch D
